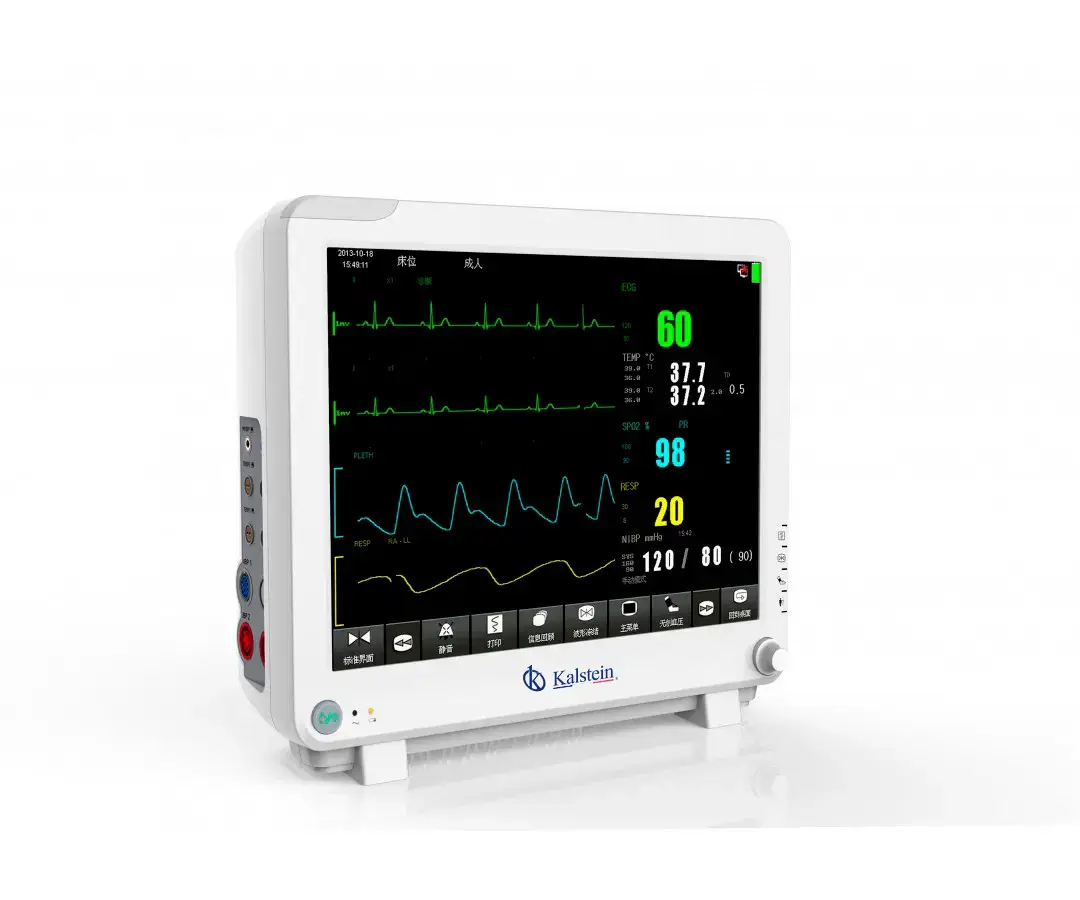

Bedside Monitor YR02174-1: Installation and Commissioning Guide 2026
The Bedside Monitor YR02174-1 is an essential device for real-time patient monitoring, designed to provide critical data with utmost accuracy. This guide aims to detail the installation and commissioning procedures essential for optimal operation. Following these steps will ensure that the YR02174-1 is set up correctly, allowing you to deliver effective patient care.
Understanding the YR02174-1 Monitor
The YR02174-1 is a sophisticated bedside monitor that tracks various vital signs. Its features include ECG, NIBP, SpO2, and temperature monitoring, making it versatile for different clinical environments.
Technical Specifications of YR02174-1
| Specification | Detail |
|---|---|
| Model | YR02174-1 |
| Brand | Kalstein |
| Category | Patient Monitor |
| Price (USD) | 4023.70 |
| Gross Weight | 8.4 kg |
Unboxing and Initial Setup
Upon receiving the Bedside Monitor YR02174-1, ensure that all components are included:
- Monitor Unit
- Power Cord
- User Manual
- ECG Electrodes
- Temperature Sensor
- SpO2 Sensor
- NIBP Cuff
Check the unit for any visible damage. If any parts are missing or damaged, contact your supplier immediately.
Installation Steps for YR02174-1
Follow these steps to install the Bedside Monitor YR02174-1:
- Choose an Appropriate Location: The monitor should be placed where the patient can be easily observed, ensuring adequate access to power.
- Mounting: If wall mounting, ensure that you use the provided brackets to secure the monitor at eye level.
- Power Connection: Connect the power cord to the monitor and plug it into an electrical outlet. Ensure the outlet is grounded.
- Calibration: Before first use, calibrate the monitor according to the manual instructions.
- Connect Sensors: Attach the ECG leads, NIBP cuff, temperature probe, and SpO2 sensor as per the guidelines in the user manual.
- Power On: Press the power button and allow the device to boot up. Ensure all systems start correctly.
Common Installation Issues
While installing the YR02174-1, you may encounter some common issues:
| Symptom | Possible Causes | Solutions |
|---|---|---|
| Monitor does not power on | Power cord not connected, defective power outlet | Check connections, try different outlet |
| Inconsistent readings | Poor sensor contact, incorrect setup | Reposition sensors, verify setup steps |
| Error codes displayed | Malfunctioning component | Refer to the user manual for specific error codes, contact support if necessary |
Site Requirements for YR02174-1
Ensure the environment is suitable for operating the YR02174-1:
- Temperature: 10°C to 40°C
- Humidity: 30% to 85% non-condensing
- Power Supply: 100-240 V, 50/60 Hz
- Ventilation: Adequate airflow to avoid overheating
Frequently Asked Questions
How do I calibrate the Bedside Monitor YR02174-1 after installation?
Calibration steps are specified in the user manual. Typically, it involves checking each sensor's performance against known standards and making adjustments as necessary.
What should I do if the ECG leads give inconsistent readings?
Check the lead placement on the patient, ensure they are properly attached, and verify that the skin is clean and free from oils or lotions.
Can the YR02174-1 be connected to a hospital network?
Yes, the monitor has network capabilities. Refer to the installation manual for detailed instructions on connecting to the hospital’s network.
What types of sensors are compatible with the YR02174-1?
The YR02174-1 is compatible with ECG leads, SpO2 sensors, NIBP cuffs, and temperature probes specified in the user manual.
How often should I perform maintenance on the YR02174-1?
Regular maintenance should be performed according to the schedule outlined in the user manual, typically every six months or as needed based on usage.
What is the warranty on the YR02174-1 monitor?
The warranty for the YR02174-1 is usually one year from the date of purchase, covering manufacturing defects. Please refer to your supplier for specific details.
