Centrifuge YR06163: Troubleshooting Guide by Symptom 2026

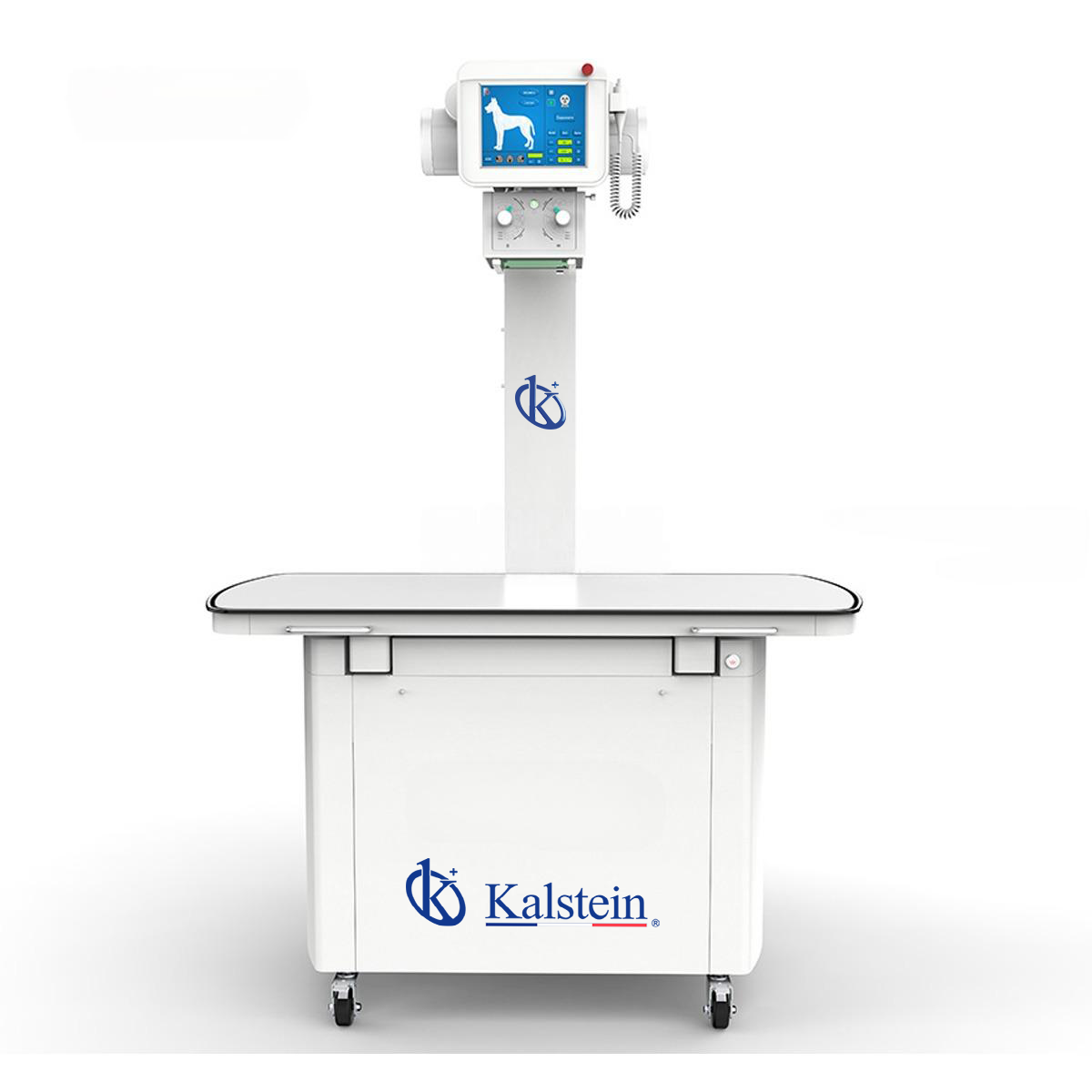

The Digital Stationary Veterinary X-rays YR06163 is an advanced piece of veterinary equipment designed for accurate imaging. However, like any sophisticated device, it may encounter various errors during operation. This article serves as a comprehensive troubleshooting guide, focusing on common symptoms and their resolutions specific to the YR06163 model. By understanding the probable causes and fixes, operators can maintain optimal performance and ensure accurate diagnostics.
Common Symptoms and Their Resolutions
Understanding the symptoms that may arise during the operation of the YR06163 is vital for timely troubleshooting. Below are the most common issues, ranked by symptom.
Equipment Does Not Power On
If the YR06163 fails to power on, it can be a source of frustration. Here are some probable causes and solutions:
| Symptom | Cause | Solution |
|---|---|---|
| Equipment does not power on | No power supply | Check the power cable and ensure it is plugged in securely. |
| Equipment does not power on | Faulty power switch | Test the power switch; replace if defective. |
| Equipment does not power on | Blown fuse | Check the fuse and replace it if necessary. |
Error Code E-03
Error code E-03 indicates a malfunction in the system. Here’s how to address it:
| Symptom | Cause | Solution |
|---|---|---|
| Error code E-03 | Overheating detected | Allow the device to cool down and check ventilation. |
| Error code E-03 | Faulty temperature sensor | Inspect and replace the temperature sensor if needed. |
| Error code E-03 | Internal circuit issue | Contact technical support for further diagnosis. |
Inconsistent Readings
Inconsistent readings can lead to erroneous diagnoses. To troubleshoot this problem:
| Symptom | Cause | Solution |
|---|---|---|
| Inconsistent readings | Calibration needed | Calibrate the machine as per the user manual instructions. |
| Inconsistent readings | Improper exposure settings | Check and adjust the exposure settings accordingly. |
| Inconsistent readings | Faulty x-ray tube | Examine the x-ray tube for wear; consider replacing it. |
Frequent Error Messages
Frequent error messages can disrupt workflow. Here’s how to address it:
| Symptom | Cause | Solution |
|---|---|---|
| Frequent error messages | Software malfunction | Restart the machine and check for software updates. |
| Frequent error messages | Data communication failure | Inspect the RS-232 communication interface and cables. |
| Frequent error messages | Malfunctioning control panel | Inspect the control panel for damage; replace if necessary. |
Technical Specifications of YR06163
| Specification | Details |
|---|---|
| Model | YR06163 |
| Maximum Output Power | 20 kW |
| Range of Tube Current | 32~320 mA |
| Tube Voltage Range of Radiography | 40 kV~120 kV |
| Range of Exposure Time | 10 ms~5000 ms |
| mAs Range | 0.32 mAs~320 mAs |
| Input Voltage Range | AC 220V±22V |
| Communication Interface | RS-232 |
| Additional Features | Capacity lock automatically, fault diagnosis automatically, self-protection |
| Max. Tube Voltage | 120 kV |
| Focus | Small focus: 1.0 mm; Large focus: 2.0 mm |
| Anode Input Power | Small focus: 20 kW; Large focus: 40 kW |
| Anode Speed | 2800 R/M |
| Target Angle | 17.5° |
| Anode Heat Content | 100 kJ (140 kHU) |
Frequently Asked Questions
What should I do if my YR06163 is not producing any images?
If the YR06163 is not producing images, first ensure that the machine is powered on and properly connected. Check the settings for kV and mA to ensure they are within the operational range. Additionally, inspect the x-ray tube for any signs of damage or wear that may contribute to the issue.
How do I perform routine maintenance on my YR06163?
Routine maintenance for the YR06163 involves regular calibration, checking for loose connections, and ensuring that the cooling system is functioning properly. Clean the exterior of the machine regularly and inspect the x-ray tube for any signs of wear that may affect performance.
Where can I find replacement parts for the YR06163?
Replacement parts for the YR06163 can typically be obtained through authorized distributors or directly from the manufacturer. Ensure that you use genuine parts to maintain the integrity and performance of the equipment.
What is the expected lifespan of the YR06163?
The expected lifespan of the YR06163 can vary based on usage and maintenance but generally ranges from 10 to 15 years with proper care. Regular servicing and timely replacement of consumables can help extend its operational life.
How often should I calibrate my YR06163?
Calibration of the YR06163 should be performed at least annually, but more frequent calibration may be necessary if the machine is used extensively or if it experiences any issues. Always refer to the user manual for specific guidelines.
