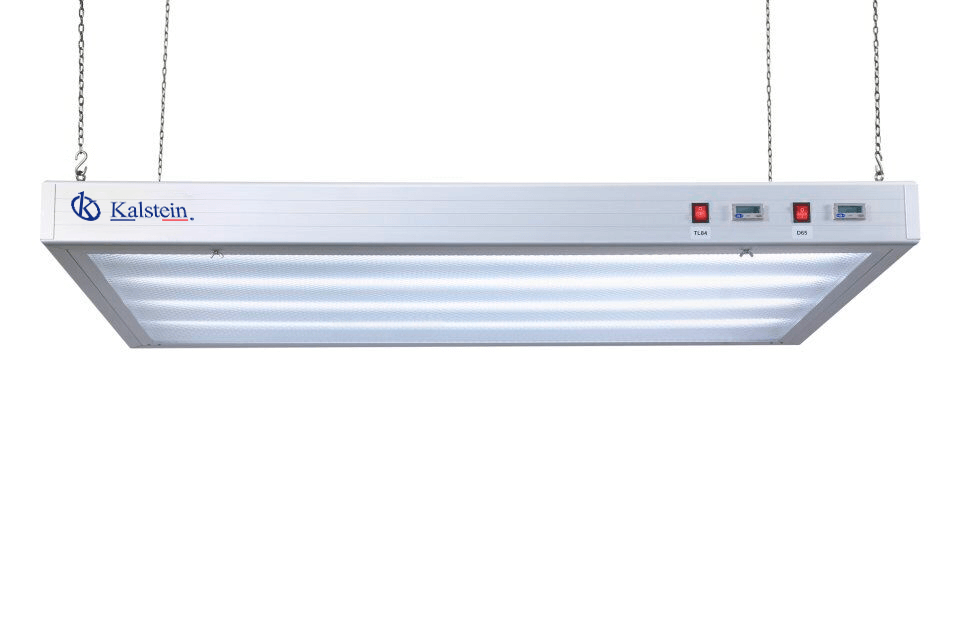

Common Errors and Troubleshooting by Symptom for the YR05534 Color Light Box
The YR05534 Color Light Box is a pivotal tool in environments where color management is essential, including printing workshops and production centers. Understanding the possible errors that can occur and their solutions is crucial for maintaining operational efficiency. This guide will delve into common symptoms, probable causes, and actionable solutions.
Technical Specifications of the YR05534
| Model | YR05534 |
|---|---|
| Dimensions | 130 cm x 76 cm x 10 cm (length x width x height) |
| Material | Real aluminum alloy material |
| Light Source | D65 and TL84 |
| Color Temperature | D50 (5000K) or D65 (6500K) |
| C RI Index | D50: CRI ≥ 95, D65: CRI ≥ 90 |
| Power Supply | AC220V 50HZ |
| Weight | Gross Weight: 29 kg |
Common Symptoms and Troubleshooting Solutions
Equipment Does Not Power On
If the YR05534 Color Light Box fails to power on, it can be frustrating. Below are potential causes and solutions:
- Check if the power cable is firmly connected to both the light box and the power outlet.
- Verify the voltage compatibility with the outlet to ensure compatibility.
- Inspect the power switch for any signs of damage or malfunction.
- Confirm fuse integrity and replace if blown.
Error Code E-03 Appears
Error code E-03 indicates a malfunction with the light source. Follow these steps:
- Take note of the hours of operation; replace lamps if they exceed recommended usage.
- Remove the cover and ensure that connections to the lamp are secure.
- Replace aged or damaged lamps promptly to prevent further issues.
Inconsistent Color Readings
Inconsistent readings can lead to errors in color assessment. Here’s how to troubleshoot:
- Ensure that the light source is calibrated correctly and check its settings.
- Verify the cleanliness of the light box and lamps to avoid distortion from dirt or dust.
- Confirm that the surrounding environmental lighting is controlled and does not interfere with readings.
Light Flickering or Dimness
This symptom often points to issues with the light source. Follow these solutions:
- Inspect the lamps for wear and replace if necessary.
- Check the wiring for any signs of damage.
- Ensure that the light box is correctly connected to a suitable power source.
Symptom-Cause-Solution Table
| Symptom | Probable Causes | Solutions |
|---|---|---|
| Equipment Does Not Power On | Loose power connection, faulty power outlet, damaged power switch | Check connections and power outlet; inspect and replace power switch if needed |
| Error Code E-03 | Malfunctioning light source | Replace lamps and secure connections |
| Inconsistent Color Readings | Calibration issues, dirty lamps | Calibrate properly and clean lamps |
| Light Flickering or Dimness | Aged lamps, wiring issues | Replace lamps and check wiring |
Frequently Asked Questions
What types of light sources are compatible with the YR05534 Color Light Box?
The YR05534 Color Light Box is compatible with several light sources, including D65, TL84, and D50. Each serves a specific purpose in assessing color under varying conditions.
How often should the lamps in YR05534 be replaced?
Lamps should be replaced based on hours of operation and their performance. Regular inspections and adhering to the manufacturer’s guidelines will ensure optimal performance.
What is the ideal environment for operating the YR05534?
The ideal environment includes controlled temperature and humidity levels, free from excessive dust or light interference to maintain accurate color assessments.
Can the YR05534 be used in different industries?
Yes, the YR05534 Color Light Box is versatile and can be utilized in various sectors, including printing, manufacturing, and quality control in laboratories.
What should I do if the light box shows inconsistent results?
If inconsistent results occur, check for calibration issues, ensure the cleanliness of the light source, and verify that surrounding lighting conditions are controlled.
