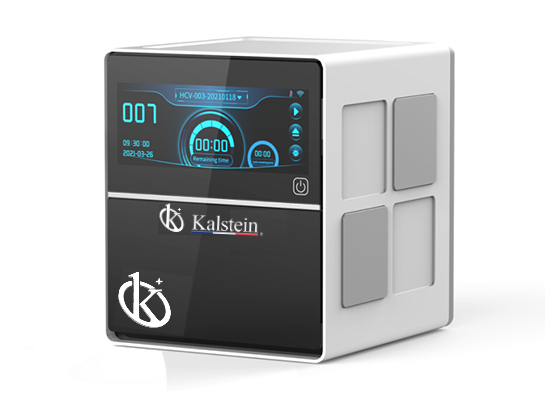

Customization and Advanced Configurations of the YR01869-2 Automatic Nucleic Acid Extractor
The YR01869-2 Automatic Nucleic Acid Extractor represents a significant advancement in laboratory technology, providing researchers and technicians with the ability to optimize nucleic acid extraction processes. This article focuses on the myriad options for customization and the advanced configurations available for this model, allowing laboratories to enhance their workflows and experiment setups.
Technical Specifications of the YR01869-2
| Model | YR01869-2 |
| Performance | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Custom 96 deep well plates, individual 6 strip tubes |
| Well Variation | CV≤3%. |
| Mixing Method | Rotary Mixing |
| Rotation Speed | 100~3000rpm |
| Temperature Control Range | Separate temperature control for lysis and elution. |
| Temperature range from 30°C to 120°C. | |
| Temperature Control Accuracy | Heating rate: 4.0±0.2°C/s. |
| Temperature accuracy: ±1.0°C. | |
| Temperature uniformity: ≤1.0°C. | |
| Languages | Chinese/English |
| Protocol Management | Flexibility to create, edit, and delete protocols |
| Operating Mode | Mode 1: Android systems on smartphones/tablets |
| Mode 2: 6.86-inch full-color LCD screen | |
| Automatic Control | Automatic opening and closing of the experimentation chamber |
| Reagent Identification | Automatic identification of reagent information and execution of tests |
| Mixer Sleeve Monitoring | Real-time control of the status of mixing sleeves in experiments |
| Magnetic Bead Residues | ≤1% |
| Power Failure Protection | Freely choose whether to continue the experiment when power is restored after a cut. |
| Disinfection | Ozone + UV disinfection |
| Automatic Shutdown | Automatic shutdown after UV disinfection |
| Negative Pressure Filtration | HEPA negative pressure filtration module |
| Connection Port Type | USB Port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
Advanced Configurations and Customization Options
The YR01869-2 model is specifically designed to accommodate a variety of configurations that cater to different laboratory needs. These configurations can significantly enhance the user's experience and workflow efficiency.
1. Optional Modules
- Advanced Sample Processing Module: This module allows for processing larger volumes of samples simultaneously, perfect for high-throughput laboratories.
- Enhanced Filtration System: An upgrade for laboratories focused on maintaining the highest levels of sample purity, it improves the filtering capabilities beyond standard settings.
- Integrated Data Management Software: Provides real-time data logging and analysis directly connected with laboratory information management systems (LIMS).
2. Software Upgrades
Keeping the software updated is crucial for maximizing the functionality of the YR01869-2. Key aspects include:
- Protocol Customization: Ability to create and modify extraction protocols tailored to specific sample types and requirements.
- Remote Monitoring: Allows users to monitor and control the extractor via smartphones or tablets, providing flexibility during experiments.
- Integration with External Devices: Adapts to new technology as it becomes available, ensuring the extractor remains compatible with future laboratory advancements.
3. Advanced Operating Modes
The YR01869-2 features several advanced operating modes that cater to specialized tasks:
- Rapid Mode: For experiments requiring quick results, reducing the processing time significantly.
- Energy-Saving Mode: Automatically adjusts power consumption while maintaining performance, ideal for long-term experiments.
- High-Precision Mode: Prioritizes accuracy for critical applications, reducing speed slightly for enhanced results.
Benefits of Customization
Customizing the YR01869-2 allows for:
- Improved Efficiency: Tailoring the extractor to specific requirements enhances throughput and reduces time spent on sample processing.
- Flexibility: Configurations can be adapted based on project requirements, making the device suitable for various research areas.
- Increased Accuracy: Specialized modules and software enhancements can minimize sample contamination and maximize extraction yield.
Frequently Asked Questions
What types of samples can be processed with the YR01869-2 Automatic Nucleic Acid Extractor?
The YR01869-2 is designed to handle a wide range of samples, especially those requiring precise nucleic acid extraction such as DNA and RNA analysis.
Is the YR01869-2 easy to operate?
Yes, the device features a 6.86-inch touchscreen and a remote control system that allows for easy operation from smartphones or tablets. The interface is user-friendly, enabling quick and efficient experiments.
How do I maintain the YR01869-2 in optimal condition?
Regular maintenance, including cleaning after each use and remote system updates, is crucial to ensure optimal performance.
Can the YR01869-2 be adapted for high-throughput processing?
Yes, with the optional Advanced Sample Processing Module, the YR01869-2 can significantly increase its capacity for high-throughput applications.
What is the significance of using the Enhanced Filtration System?
The Enhanced Filtration System improves the filtering capability, which is crucial for laboratories focusing on high purity extracts and minimizing contamination.
How often should I update the software of the YR01869-2?
It is recommended to check for software updates regularly to ensure all features are functioning optimally and that the extractor performs at its best.
Where can I request a quote for the YR01869-2 and its accessories?
You can request a personalized quote for the YR01869-2 Automatic Nucleic Acid Extractor and any additional accessories through Kalstein Plus.
