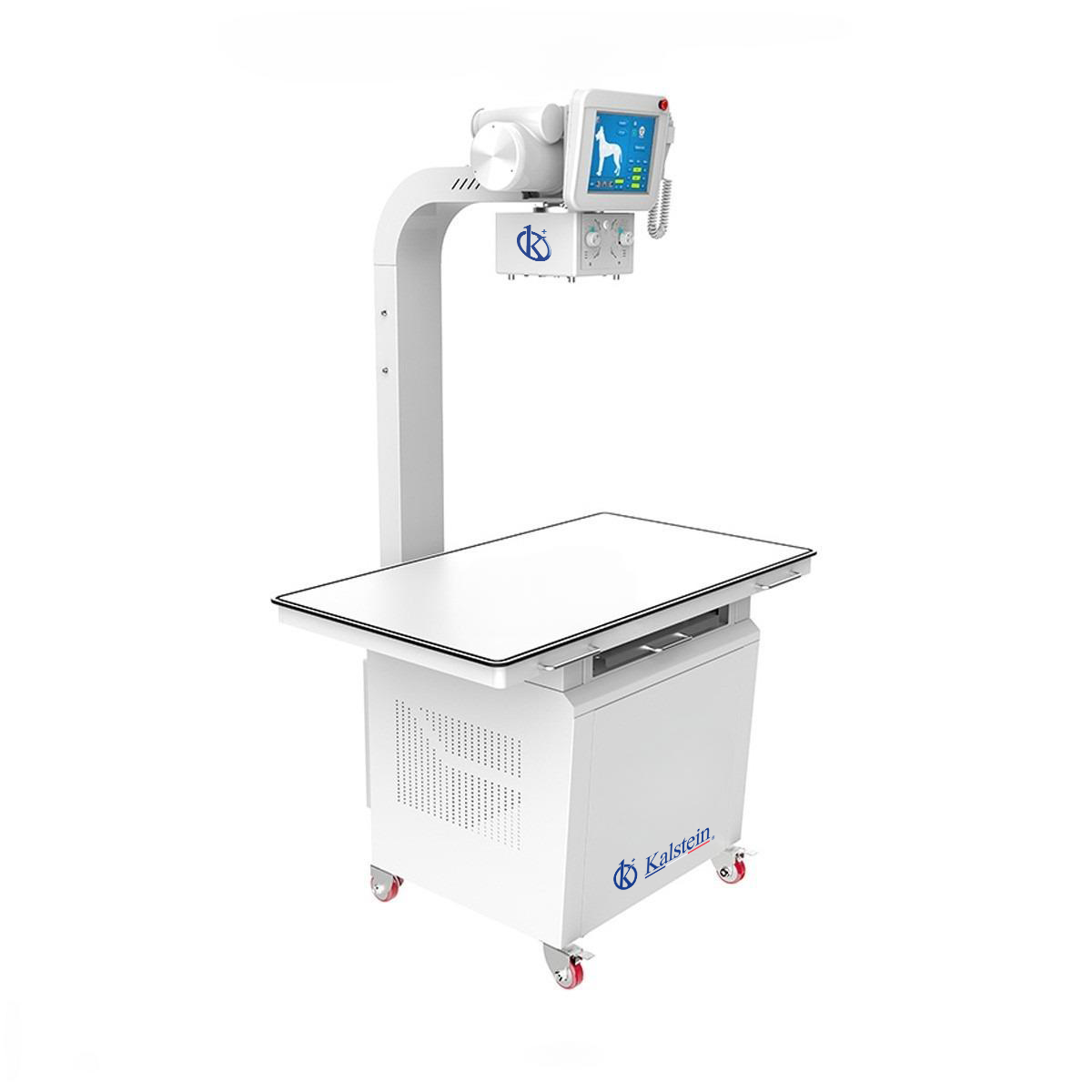

Digital Veterinary X-rays (DR) YR06162: Field Integration Insights
The Digital Veterinary X-rays (DR) YR06162 is a cutting-edge solution designed to enhance veterinary diagnostic capabilities. This technological marvel integrates seamlessly into field processes, providing veterinarians with high-quality imaging to support accurate diagnosis and treatment. Below, we delve into its specifications, pricing, and practical applications in the field.
Product Description
| Specification | Details |
|---|---|
| Model | YR06162 |
| Maximum Output Power | 16 kW |
| Input Voltage Range | AC 220V±22V |
| Applicable Support | Radiography |
| Inverter Frequency | ≥30kHz |
| Tube Voltage Range | 40kV~125kV |
| Tube Current Range | 16~200mA |
| Exposure Time Range | 0.0025s~6.4s |
| mAs Range | 0.5mAs~320mAs |
| Communication Interface | RS-232 |
| Other Features | Automatic capacity lock, automatic fault diagnosis, self-protection |
| Max. Tube Voltage | 125 kV |
| Focus | Small focus: 1.0mm, Large focus: 2.0mm |
| Anode Input Power | Small focus: 20KW, Large focus: 40KW |
| Anode Speed | 2800 R/M |
| Target Angle | 17.5° |
| Anode Heat Content | 100kJ (140kHU) |
Market Price
The current market price for the Digital Veterinary X-rays (DR) YR06162 is approximately $15,600. This price reflects the advanced technology and features included in this veterinary imaging system. It is crucial to compare prices from different suppliers to ensure you receive the best deal and warranty services.
Frequently Asked Questions
What is the maximum output power of the YR06162?
The maximum output power of the YR06162 is 16 kW, providing sufficient energy for high-quality imaging.
What voltage range does the device operate on?
The device operates on an input voltage range of AC 220V±22V, making it suitable for various environments.
What is the exposure time range available in the system?
The exposure time range of the YR06162 is between 0.0025 seconds to 6.4 seconds, allowing flexibility for different imaging requirements.
Is there an automatic fault diagnosis feature?
Yes, the YR06162 includes an automatic fault diagnosis feature, enhancing operational reliability and safety.
Can the device handle different tube voltages?
The YR06162 can handle tube voltages ranging from 40kV to 125kV, which is essential for various veterinary radiography applications.
What communication interface does this device use?
The communication interface for the YR06162 is RS-232, allowing for easy integration with other systems.
How does the focus system work?
The device features both a small focus of 1.0mm and a large focus of 2.0mm, providing options for different imaging needs.
Pros and Cons
When considering the Digital Veterinary X-rays (DR) YR06162, it is important to weigh its advantages and disadvantages:
- Pros:
- High maximum output power (16 kW) for superior imaging quality.
- Wide input voltage range, ensuring versatility in various settings.
- Automatic features like capacity lock and fault diagnosis for enhanced safety.
- RS-232 interface for easy connectivity with other systems.
- Flexible exposure time and mAs range for diverse veterinary applications.
- Cons:
- Higher upfront cost compared to traditional X-ray systems.
- Requires trained personnel to operate efficiently.
- May necessitate regular maintenance to ensure optimal performance.
Field Usage
The Digital Veterinary X-rays (DR) YR06162 is an ideal solution for field usage in veterinary practices. Its portable and user-friendly design allows veterinarians to take it on location, thus facilitating immediate diagnosis for patients who may not be able to visit a clinic. This capability is particularly beneficial in rural or remote areas where access to veterinary services is limited.
Moreover, the device’s advanced imaging features ensure that veterinarians can capture clear and detailed X-ray images, enhancing their ability to make informed diagnostic decisions. This is crucial in various situations, such as examining injuries, diagnosing diseases, and monitoring the health of animals. Its robust design also ensures that it can withstand the rigors of fieldwork.
Recommendations
For veterinarians considering the Digital Veterinary X-rays (DR) YR06162, it is recommended to undertake thorough training to maximize its capabilities and ensure effective usage. Regularly servicing the device is also advised to maintain its operational efficiency and longevity.
Furthermore, keep abreast of new developments in veterinary radiography technology, as advancements can further enhance diagnostic capabilities. Consider integrating the YR06162 with other veterinary software systems to streamline processes and improve overall workflow.
If you are interested in acquiring the Digital Veterinary X-rays (DR) YR06162 or would like to request a quote, please reach out for further assistance.
