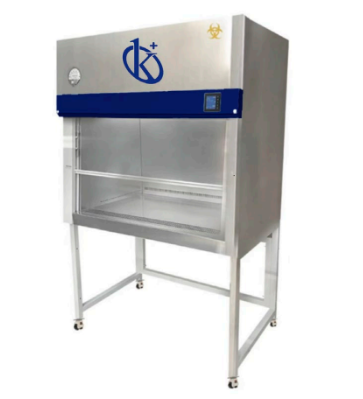

Environmental Conditions and Installation Requirements for the YR0090B-SS Biological Safety Cabinet
The YR0090B-SS Biological Safety Cabinet is engineered to provide unparalleled protection in laboratories handling low to moderate risk biological agents. To ensure its optimal performance, understanding the environmental conditions and installation requirements is crucial. This article will delve into these aspects, ensuring that operators can maximize the efficacy and safety of the YR0090B-SS cabinet.
Understanding Environmental Conditions
The YR0090B-SS cabinet operates best under specific environmental conditions that must be met for safe and effective use. These conditions include ambient temperature, relative humidity, atmospheric pressure, and electrical requirements.
Ambient Temperature
The optimal ambient temperature range for the YR0090B-SS is between 15 to 35 °C. Operating below or above this range can impact the functionality and effectiveness of the cabinet. Temperatures that are too low can lead to inadequate airflow, while excessively high temperatures can interfere with the cooling mechanisms within the cabinet.
Relative Humidity
The relative humidity should not exceed 75%. High humidity levels can pose a risk for equipment malfunction, as condensation can affect electronic components and the air filtration system.
Atmospheric Pressure
The atmospheric pressure for the YR0090B-SS should be maintained between 70 kPa and 106 kPa. Fluctuations outside this range may compromise the cabinet’s ability to filter air effectively, which is crucial for maintaining safety standards in biological labs.
Electrical Requirements
The YR0090B-SS operates on a 220V, 50Hz electrical supply. It is essential to ensure that the designated electrical system can support the cabinet's energy requirements to avoid interruptions during operation.
Installation Requirements
Proper installation of the YR0090B-SS Biological Safety Cabinet is vital for ensuring its performance and the safety of laboratory personnel. Several important factors need to be considered during the installation process.
Space and Clearance
The cabinet requires ample space for installation, including clearances for airflow around the unit. When planning the installation, ensure that there is sufficient room on all sides of the cabinet to facilitate proper air circulation and maintenance access.
Ventilation Needs
One of the major benefits of the YR0090B-SS is its ability to recycle 70% of the internal air and expel 30%. Therefore, it is crucial to ensure that the facility’s ventilation system can accommodate this airflow pattern without introducing contaminants into the laboratory space.
Flooring Requirements
The cabinet should be placed on a level surface, ideally a solid floor that can support its weight. If the floor is uneven, shimming may be necessary to ensure stability and prevent tipping.
Power Supply Location
During installation, the power supply should be easily accessible but positioned away from potential water spills or contamination sources. This precaution minimizes the risk of electrical hazards in the laboratory environment.
Technical Specifications of the YR0090B-SS
| Parameter / Model | YR0090B(SS) |
|---|---|
| Voltage | 220 V |
| Frequency | 50HZ |
| Number of Users | Single |
| Overall Dimensions | 1000*765*2000MM |
| Working Space | 800*630*700MM |
| Nominal Power | 1100W |
| Exhaust Airflow System | 360M3/h |
| UV Lamp Power | 30w |
| Fluorescent Lamp Power | 12w*2(LED) |
| Average Downflow Air Velocity | 0.33+-0.25M/S |
| Average Inflow Air Velocity | 0.53+-0.25M/S |
| Filtration Efficiency | HEPA (ULPA) filter, 0.3 µm efficiency > 99.999% |
| Noise Level | <67 Db (A) |
Frequently Asked Questions
What are the environmental requirements for the YR0090B-SS Biological Safety Cabinet?
The optimal environmental conditions for the YR0090B-SS include an ambient temperature of 15 to 35 °C, relative humidity under 75%, and atmospheric pressure between 70 kPa and 106 kPa. Electrical supply should be 220V at 50Hz.
How should the YR0090B-SS be installed for optimal performance?
Proper installation requires ensuring sufficient space for airflow, a level surface, adequate ventilation, and that the power supply is accessible yet away from potential contaminants. These factors contribute to the cabinet's safety and functionality.
Can the YR0090B-SS operate without an additional exhaust system?
Yes, the YR0090B-SS is designed to recycle 70% of the air internally, making it unnecessary to install additional exhaust systems in most situations. It expels 30% of the air, which should be managed by the existing laboratory ventilation system.
What maintenance is required for the YR0090B-SS?
Regular maintenance includes inspecting and replacing HEPA filters periodically, calibrating the airflow system, and checking UV lamps and safety alarms. This ensures the cabinet operates effectively and safely.
How do I ensure the YR0090B-SS is safe to use after installation?
After installation, perform a thorough check of all operational parameters, including airflow rates and UV lamp functionality. Regularly scheduled validations and maintenance checks will ensure ongoing safety and effectiveness.
Where can I find technical specifications and support for the YR0090B-SS?
Technical specifications and support can typically be found in the user manual that accompanies the YR0090B-SS, or through authorized suppliers. Additionally, professional support services can assist with installation and maintenance queries.
