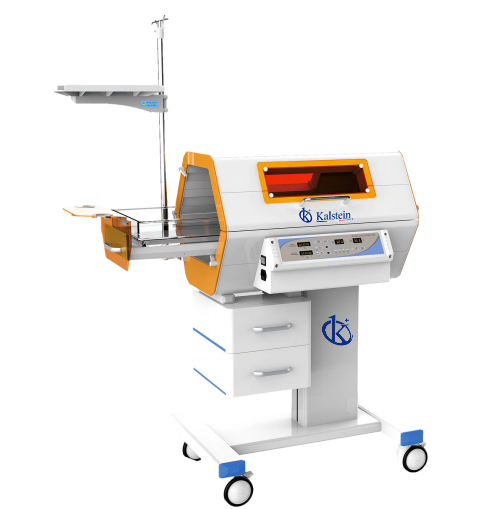

Environmental Conditions and Installation Requirements for the YR06223 Infant Phototherapy Unit
The YR06223 Infant Phototherapy Unit is a cutting-edge solution designed to provide effective treatment for neonatal jaundice. To ensure optimal performance and reliability of the YR06223, understanding the environmental conditions and installation requirements is crucial. This guide delves into the specific parameters necessary for effective operation, helping healthcare providers achieve the best outcomes for their patients.
Technical Specifications of the YR06223
| Specification | Details |
|---|---|
| Model | YR06223 |
| Power Supply | AC220V±10%, 50Hz±2% |
| Power Input | ≤400VA |
| Blue Light Wavelength | 420nm~490nm |
| Circle 360 Light Radiation | 3700μW/cm2 |
| Up Side Light Radiation | 3300μW/cm2 |
| Down Side Light Radiation | 2400μW/cm2 |
| Life Span of Blue Light Tube | ≥20000 hours |
| Air Temperature Display Range | 0-45.0°C |
| Skin Temperature Display Range | 0-45.0°C |
| Time Accuracy | 1min/2h |
| Count-up Time Range | 0-99.9 hours |
| Count-down Time Range | 1min~99.9 hours |
| Total Cumulative Time | 0-999999 hours |
| Mattress Size | 613×300 mm |
| Ambient Temperature | 18°C ~ 30°C |
| Relative Humidity | 30%~75% |
| Atmospheric Pressure | 700hpa~1060hpa |
Installation Requirements for the YR06223
To maximize the efficacy of the YR06223, it is vital to adhere to specific installation requirements. This section outlines the necessary considerations for setting up the unit correctly.
Unboxing and Initial Setup
When receiving the YR06223, ensure that all components are included in the package. Perform an unboxing checklist that features key components such as the main unit, light sources, power supply, and any additional accessories. Inspect for any damages that might have occurred during transit.
Location and Environment
The installation site must maintain an ambient temperature between 18°C and 30°C, with relative humidity levels ranging from 30% to 75%. Ensure proper ventilation to prevent overheating. The YR06223 should be placed on a stable, flat surface to avoid vibrations that could affect its performance.
Power Requirements
To operate the YR06223 efficiently, ensure that the power supply meets the specified AC220V±10%, 50Hz±2% requirements. Verify that electrical outlets are properly grounded and that the power source can handle the equipment's ≤400VA power input.
Positioning and Orientation
The YR06223 features a 360-degree light radiation capability. Position the unit to ensure that the infant receives optimal light exposure from all sides. The design allows for both upward and downward light therapy modes, hence positioning must accommodate these operational modes effectively.
Environmental Conditions for Optimal Performance
Environmental factors significantly influence the performance of the YR06223. Understanding these conditions helps prevent malfunction and promotes efficient therapy.
Temperature Control
The YR06223 is designed to operate effectively within a temperature range of 18°C to 30°C. If temperatures exceed this range, it may lead to inaccurate readings or equipment failure. Regularly monitor the ambient conditions to ensure they remain within the specified limits.
Humidity Levels
Relative humidity affects the operation of the YR06223. The ideal range is between 30% and 75%. Lower humidity may lead to increased static electricity, while higher humidity can cause condensation, risking electrical components. Utilize a hygrometer to monitor humidity levels in the installation area.
Atmospheric Pressure
The unit operates best at an atmospheric pressure ranging from 700hpa to 1060hpa. At higher altitudes, lower atmospheric pressure can affect the operation of electronic components. Ensure that the installation site complies with these atmospheric requirements.
Common Installation Mistakes and Troubleshooting
It is essential to avoid common pitfalls during the installation process to guarantee optimal performance of the YR06223. Below are frequent mistakes and their solutions.
Improper Power Connections
One common mistake is failing to ensure that the power supply matches the specifications. Always check connections and make sure that the outlet provides the correct voltage and amperage.
Neglecting Ambient Conditions
Some users overlook the importance of maintaining proper environmental conditions. Regular monitoring of temperature and humidity is crucial to avoid performance issues. Use appropriate equipment like thermometers and hygrometers to keep accurate records.
Inadequate Stability of the Unit
Placing the YR06223 on an unstable surface can lead to vibrations that impact performance. Always ensure the unit is positioned on a stable, flat surface.
Frequently Asked Questions
What are the necessary ambient conditions for the YR06223?
The ideal ambient conditions for the YR06223 are a temperature range of 18°C to 30°C, with relative humidity between 30% and 75%. It is essential to monitor these conditions regularly to ensure optimal performance.
How should I position the YR06223 for maximum efficiency?
The YR06223 should be positioned to allow optimal 360-degree light exposure around the infant. Ensure it is placed on a stable surface and adjust its orientation based on the therapy mode being used.
What power supply is required for the YR06223?
The YR06223 requires a power supply of AC220V±10%, 50Hz±2%. Ensure that the electrical setup complies with these specifications to prevent damage to the unit.
How can I troubleshoot if the YR06223 is not performing as expected?
Check for proper power supply connection, ensure ambient conditions meet the required standards, and verify that the unit is stable and undisturbed. If issues persist, refer to the user manual for further troubleshooting steps.
What maintenance does the YR06223 require to ensure longevity?
Regular maintenance includes checking connections, cleaning the unit, and monitoring ambient conditions. Ensure that the blue light tubes are replaced after reaching their 20,000-hour lifespan for optimal performance.
Can the YR06223 be used in different healthcare settings?
Yes, the YR06223 can be adapted for use in various healthcare settings, including hospitals, clinics, and home care environments, ensuring flexibility in neonatal care.
