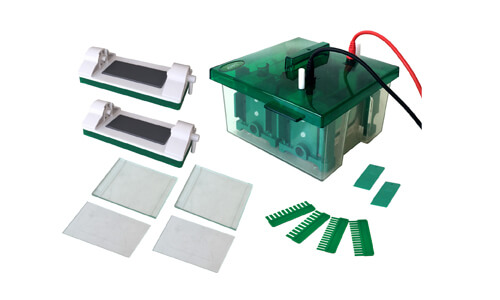

Installation and Commissioning Guide for the YR03427 Mini-Protean Vertical Electrophoresis Cell
The YR03427 Mini-Protean Vertical Electrophoresis Cell is a sophisticated instrument designed for the separation of proteins. This guide will walk you through the installation and commissioning process of the YR03427, ensuring a smooth setup and optimal performance.
Overview of the YR03427 Mini-Protean Vertical Electrophoresis Cell
The YR03427 serves as an advanced tool for protein analysis, distinguishing itself from simpler horizontal systems. It allows for a more complex separation process, which is essential for various applications in research and clinical settings. Before diving into the installation steps, let’s take a closer look at its specifications.
Technical Specifications of YR03427
| Specification | Details |
|---|---|
| Model | YR03427 |
| Glass Plate Size (LxW) | 101x82mm |
| Gel Size (LxW) | 81x73mm |
| Gel Thickness | 1.0 mm |
| Gel Quantity | 1~4 pieces |
| Sample Volume | 11~60 µl |
| Buffer Volume | ~1200 ml |
| Dimensions | 175x175x100 mm |
| Net Weight | 2.5 kg |
Unboxing and Initial Setup Checklist
Upon receiving your YR03427, follow this checklist to ensure all components are present and in good condition:
- Check for the main electrophoresis unit.
- Verify the presence of glass plates, gel molds, and safety cover.
- Ensure the user manual is included.
- Inspect for any visible damage or defects.
- Gather necessary tools for assembly, such as screwdrivers and gloves.
Installation Steps for YR03427
Follow these steps to properly install the YR03427:
- Positioning the Unit: Place the YR03427 on a stable, level surface in a moisture-controlled environment.
- Setting Up the Glass Plates: Install the glass plates into the designated slots. This process can be completed in approximately 15 seconds without the need for additional buttons.
- Gel Preparation: Prepare the gel in the original gel mold without moving it to the electrophoresis unit. This design feature allows for easy observation during sample addition.
- Connecting Power Supply: Ensure that the YR03427 is connected to a compatible power supply. Verify voltage requirements to prevent damage.
- Safety Cover Configuration: Utilize the safety cover’s opening button for easy access to the interior when adding samples.
- Cooling Buffer Addition: Fill the buffer chamber with the appropriate buffer solution. This ensures effective cooling and pH stability throughout the electrophoresis process.
- Initial Power-Up: Turn on the power supply and ensure the equipment initializes without error messages.
Common Installation Issues and Troubleshooting
If you encounter any issues during the installation of the YR03427, reference the following table for common problems and solutions:
| Issue | Probable Cause | Solution |
|---|---|---|
| Unit does not power on | Power supply connection is loose | Check and secure all connections |
| Error codes displayed | Improper setup of glass plates | Reinstall glass plates ensuring proper placement |
| Electrophoresis does not run | Buffer level is too low | Add more buffer to the chamber |
| Inconsistent results | Temperature fluctuations | Ensure stable environmental conditions |
Frequently Asked Questions
What are the key features of the YR03427 Mini-Protean Vertical Electrophoresis Cell?
The YR03427 features quick installation of glass plates, an efficient cooling buffer system, and a safety cover with a convenient opening button. Its design facilitates easy observation of gel preparation and sample addition.
How do I maintain the YR03427 for optimal performance?
Regularly check for wear and tear on components, ensure that the power supply is stable, and clean the unit thoroughly after each use to prevent contamination and maintain the integrity of future results.
Can the YR03427 be used for different types of gel electrophoresis?
Yes, the YR03427 is versatile enough to accommodate various gel types, making it suitable for a range of electrophoresis applications in protein analysis.
What should I do if I experience unusual error codes during operation?
Consult the user manual for a list of error codes and their meanings. Follow the troubleshooting steps provided to address and resolve any issues promptly.
Is there a warranty on the YR03427 Mini-Protean Vertical Electrophoresis Cell?
Yes, the YR03427 comes with a warranty that covers defects in materials and workmanship. Ensure to register your product and review the warranty terms in the user manual for details.
Where can I find compatible accessories for the YR03427?
Compatible accessories can be sourced from authorized suppliers and should be referenced in the product documentation. Always ensure that the accessories meet the specifications for optimal performance.
How can I submit a request for a quote on the YR03427?
You can submit a request for a quote through our online channels, providing the necessary information regarding your institution and requirements for prompt assistance.
