Installation and Commissioning Guide for the YR06118 LED Shadowless Surgical Lamp
In the field of modern surgical environments, the YR06118 LED Shadowless Surgical Lamp stands out for its highly efficient design and remarkable functionality. This guide is focused on the essential steps for installing and commissioning this state-of-the-art surgical lamp, ensuring it operates flawlessly in your clinical setting. By following this comprehensive guide, you will be equipped with the knowledge necessary for a successful installation and setup.

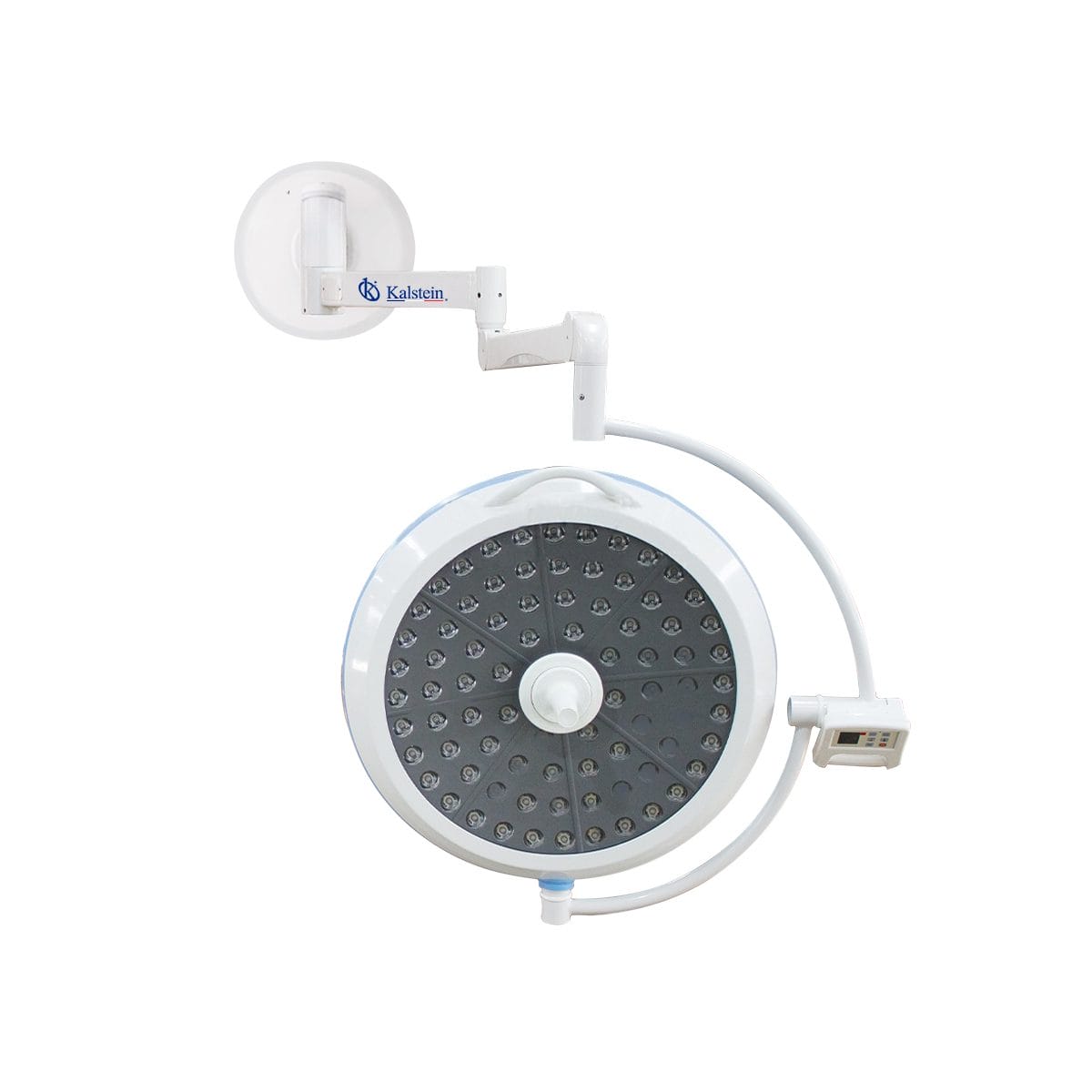

Introduction to the YR06118 Surgical Lamp
The YR06118 LED Shadowless Surgical Lamp is designed to meet high-level laminar and aseptic requirements essential for contemporary operating rooms. Its completely enclosed and aerodynamic light head eliminates dead air flow angles, enhancing air purification. The lamp head includes a sterilization handle and handrail, allowing for flexible movement at any angle. Understanding its features and specifications is crucial for effective installation.
Technical Specifications of the YR06118
| Specification | Details |
|---|---|
| Model | YR06118 |
| Mounting | Wall-mounted |
| LED Bulbs | 80 pcs |
| Illuminance | 40000~160000 Lux |
| Color Temperature | 3000~6700K adjustable |
| Diameter of Light Spot | 160-280 mm |
| Dimming System | Continuous dimming system |
| Color Rendering Index | ≥96 |
| Lighting Depth | ≥600 mm |
| Temperature Rises at Operator’s Head | ≤1℃ |
| Voltage | 220V, 50Hz |
| Optimum Installation Height | 3.0 m |
| Lowest Installation Height | 2.8 m |
Unboxing and Initial Setup
Before starting the installation, ensure that you have the necessary tools and a clean, organized workspace. Upon unboxing the YR06118, check that all components are present:
- YR06118 Surgical Lamp unit
- Mounting brackets
- Power supply cable
- User manual
Make sure to inspect each component for any signs of damage. If any parts are missing or damaged, contact your distributor immediately.
Mounting the YR06118 Surgical Lamp
Proper mounting is crucial for optimal performance. Follow these steps for mounting the YR06118:
- Choose an installation site that accommodates the required height and provides an unobstructed view for surgical procedures.
- Using a level, mark the wall at the optimum installation height of 3.0 m.
- Drill holes for the mounting brackets, ensuring they are secure enough to hold the weight of the lamp (45 kg).
- Attach the mounting brackets to the wall and ensure they are stable.
- Carefully hang the surgical lamp on the mounted brackets.
Make sure to double-check that the lamp is securely placed and can be adjusted easily without any strain.
Powering Up the YR06118
After successfully mounting the lamp, it's time to connect it to the power supply. Follow these steps:
- Connect the power supply cable to the designated port on the YR06118.
- Plug the other end of the cable into a grounded power outlet.
- Turn on the power switch located on the lamp’s control panel.
Upon powering up, observe the lamp's functionality. The LED bulbs should illuminate without flickering or delays.
First-Run Calibration
Once the YR06118 is powered on, perform the first-run calibration to ensure optimal performance:
- Adjust the lamp’s brightness settings using the dimming control.
- Set the color temperature between 3000K and 6700K based on your surgical requirements.
- Test the focusing mechanism to ensure it operates smoothly and accurately.
In this calibration phase, it is essential that the lamp meets the necessary conditions for surgical lighting.
Common Installation Mistakes to Avoid
Avoid the following common mistakes during installation to ensure that the YR06118 performs optimally:
- Not ensuring the weight of the lamp is supported adequately by using proper anchoring methods.
- Failing to calibrate the light settings before the first surgical procedure.
- Ignoring the manufacturer's recommendations on installation height.
By being aware of these pitfalls, you can prevent costly errors and ensure a seamless setup.
Frequently Asked Questions
What is the ideal installation height for the YR06118 surgical lamp?
The ideal installation height for the YR06118 is 3.0 meters, while the lowest installation height is 2.8 meters. This ensures optimal lighting coverage and effectiveness during surgical procedures.
How can I adjust the color temperature on the YR06118?
The color temperature on the YR06118 can be adjusted between 3000K and 6700K using the control panel. This flexibility allows for customization based on specific surgical requirements.
What should I do if the lamp does not power on?
If the YR06118 does not power on, check the power connection, ensure the outlet is functional, and verify that the power switch is in the 'on' position. If the issue persists, consult your manual for troubleshooting steps.
How do I maintain the YR06118 for optimal performance?
Regular maintenance includes checking the integrity of the electrical connections, cleaning the lamp surfaces, and validating the functionality of the control panel. Follow the manufacturer's recommendations for service intervals.
Can I use the YR06118 in different surgical environments?
Yes, the YR06118 is designed for various surgical environments due to its adjustable features and high illuminance levels. It is suitable for clinical, veterinary, and diverse surgical applications.
What is the expected lifespan of the YR06118 LED bulbs?
The LED bulbs in the YR06118 are rated for an impressive lifespan of 60,000 hours, meaning they do not require frequent replacements, significantly reducing operational costs over time.
How do I request a quote for the YR06118?
To request a quote for the YR06118 LED Shadowless Surgical Lamp, please reach out directly to our sales team or use the designated inquiry form on our website.
