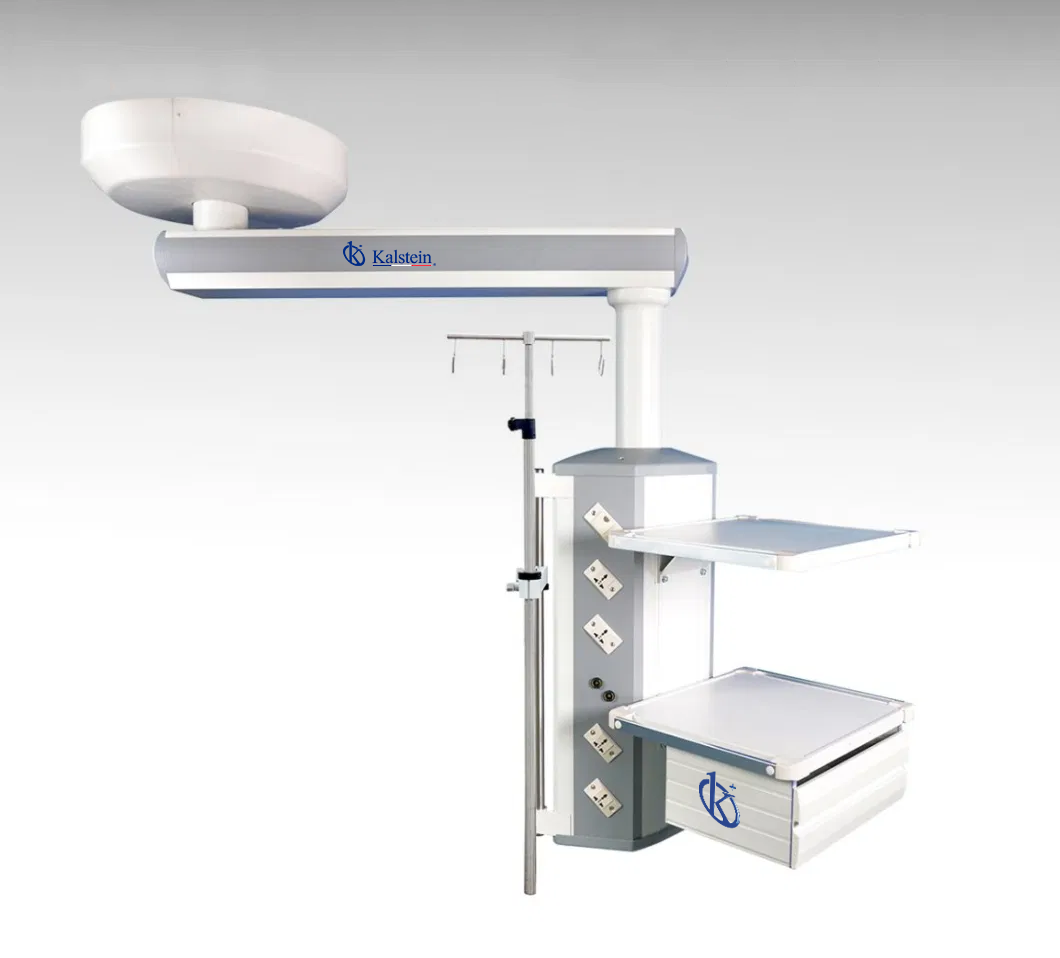

Installation and Commissioning Guide for the YR06121 Rotating Single-Arm Light Pendant
The YR06121 Rotating Single-Arm Light Pendant is an essential piece of equipment in various medical and veterinary settings. This guide will walk you through the steps of installing and commissioning the device, ensuring optimal performance and longevity.
Understanding the YR06121 Rotating Single-Arm Light Pendant
The YR06121 is specifically designed for use in clinical environments, offering flexibility and precision in lighting. The pendant features a rotating arm radius of 1000 mm and an impressive rotating angle of 340°, allowing for effective illumination of surgical sites. The device has a maximum load capacity of 160 kg, making it versatile enough to support multiple accessories.
Technical Specifications of the YR06121
| Specification | Details |
|---|---|
| Model | YR06121 |
| Arm Rotating Radius | 1000 mm |
| Arm Rotating Angle | 340° |
| Maximum Load Capacity | 160 kg |
| Braking System | Friction Brake |
Unboxing and Initial Setup
When you receive your YR06121 unit, ensure to follow these steps to unbox and set it up correctly:
- Check the package for any visible damage before unboxing.
- Inside the package, you should find:
- 2 oxygen terminals
- 2 vacuum terminals
- 1 medical air terminal
- 6 Chinese type 3-pin power outlets
- 2 grounding screws
- 2 equipment shelves
- 1 drawer
- 1 IV pole & infusion pump support
- Gather necessary tools for installation, such as a drill, level, and wrench.
Anchoring and Leveling the Pendant
For optimal performance, it is crucial to properly anchor and level the YR06121:
- Select a suitable location that meets the environmental requirements (temperature, humidity).
- Ensure that the ceiling is structurally sound to handle the weight of the pendant.
- Use a drill to install any necessary mounting brackets securely.
Power-Up Sequence and Calibration
Once the pendant is securely mounted, follow these steps to power it up and calibrate:
- Connect all terminal connections securely as per the schematic provided.
- Power up the unit using the main switch.
- Calibrate the pendant’s lights according to the manufacturer’s specifications.
Common Installation Mistakes and How to Avoid Them
Some common pitfalls during installation include:
- Failing to level the device, which can cause operational issues.
- Inadequate securing of terminals, which may lead to power failures.
- Neglecting to perform initial calibration, resulting in poor lighting quality.
Frequently Asked Questions
What environmental conditions are required for the YR06121?
The YR06121 should be installed in a controlled environment with specific temperature and humidity ranges to ensure optimal performance.
How do I perform the first calibration for the YR06121?
Calibration steps should be followed as per the manufacturer's guidelines provided with the unit to ensure accurate lighting during use.
What types of accessories can be used with the YR06121?
Compatible accessories include shelves, drawers, IV poles, and infusion pump supports that enhance the functionality of the pendant.
How can I troubleshoot power issues with the YR06121?
Check all terminal connections, ensure that the main power supply is active, and inspect the circuit for any faults that could cause power interruptions.
What is the maximum load capacity of the YR06121?
The YR06121 has a maximum load capacity of 160 kg, allowing it to support various medical devices and accessories.
Can I move the YR06121 after installation?
While the YR06121 is designed for mobility, any relocation should be performed with care to avoid destabilization and ensure all connections remain secure.
What are the safety features of the YR06121?
The YR06121 includes a friction braking system to enhance stability and safety during use.
