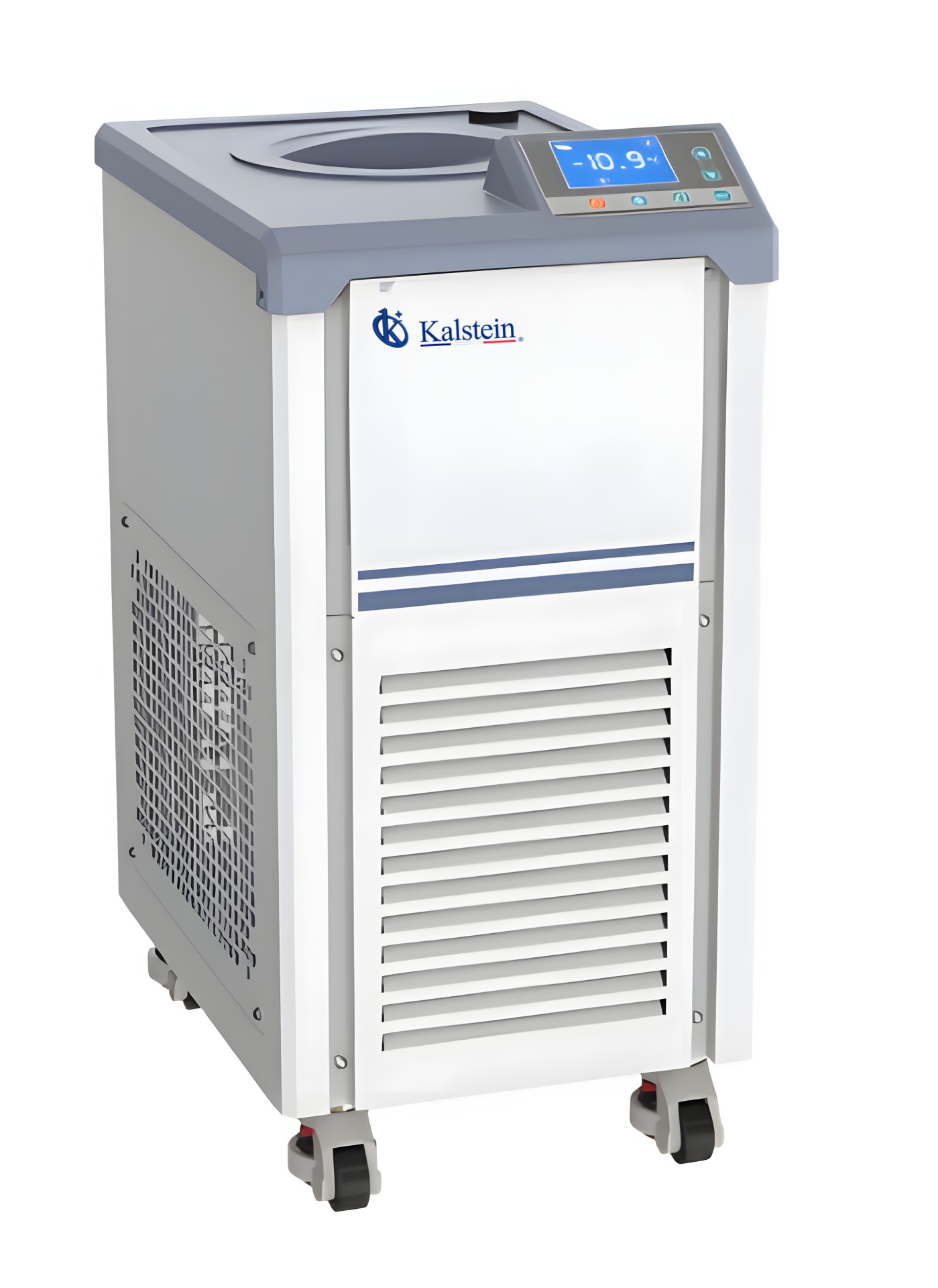

Installation and Commissioning Guide for the YR06617 Recirculating Chiller
The YR06617 Recirculating Chiller is engineered for precise thermal control in laboratory and industrial environments that demand low and stable temperatures. This guide aims to provide a step-by-step installation and commissioning process to ensure optimal performance and reliability from the YR06617.
Understanding the YR06617 Recirculating Chiller
The YR06617 model features an impressive temperature range of -30 to 5 °C and a thermal stability of ±2 °C, making it ideal for varied applications, including reactors and analytical instruments. Understanding its specifications and operational principles is crucial for effective installation and use.
Technical Specifications of YR06617
| Specification | Details |
|---|---|
| Model | YR06617 |
| Temperature Range | -30~5℃ |
| Thermal Stability | ±2℃ |
| Pump Flow Rate | 20 L/min |
| Pump Pressure | 0.4 bar |
| Power Supply | 220–240 V / 50 Hz |
| Filling Volume | 5 L |
| Dimensions | 335 x 473 x 684 mm |
| Net Weight | 42 kg |
Unboxing and Initial Setup
Upon receiving the YR06617, carefully unbox the unit and verify that all components are included. The following checklist can assist in ensuring nothing is overlooked:
- YR06617 unit
- User manual
- Power cable
- Water reservoir lid
- Any additional accessories
Installation Steps
Follow these detailed steps for a successful installation of the YR06617 Recirculating Chiller:
- Select the Installation Location: Ensure the location is well-ventilated, stable, and allows for easy access to the chiller's controls and maintenance areas.
- Level the Unit: Use a spirit level to ensure that the chiller is perfectly leveled.
- Connect the Power: Plug the power supply into a standard outlet that meets the voltage requirements (220–240 V / 50 Hz).
- Connect Cooling Lines: Attach the inlet and outlet cooling lines to the appropriate ports on the chiller. Ensure all connections are secure to prevent leaks.
- Fill the Bath Liquid: Fill the reservoir with the recommended coolant liquid, ensuring it is within the 5 L limit.
- Power On the Unit: Turn on the YR06617 and allow the system to reach the desired temperature setting.
First Run Calibration
After installation, perform a first run calibration to ensure accurate temperature control:
- Set the desired temperature on the control panel.
- Allow the unit to stabilize for a few minutes.
- Use a calibrated thermometer to verify the temperature at various points in the fluid.
- Adjust the settings as necessary to align with the desired temperature.
Common Installation Mistakes
It is essential to be aware of common pitfalls during installation:
- Improper leveling, leading to inefficient performance.
- Failure to secure all fluid connections, resulting in leaks.
- Using an incompatible coolant, which can damage the unit.
Site Requirements and Environmental Conditions
The performance of the YR06617 is heavily influenced by its installation environment. Here is a detailed checklist of site requirements:
| Site Requirement | Details |
|---|---|
| Temperature Range | Ambient temperature should be within 5 to 30 °C. |
| Humidity | Should not exceed 80% relative humidity. |
| Ventilation | Adequate ventilation is necessary to dissipate heat. |
| Vibration | Should be placed away from heavy machinery to avoid vibration. |
| Drainage | Ensure proper drainage to handle any overflow. |
Frequently Asked Questions
What types of applications does the YR06617 support?
The YR06617 is suitable for chemical, pharmaceutical, and biotechnology labs, as well as industrial applications requiring stable cooling.
What maintenance does the YR06617 require?
Regular maintenance includes checking bath fluid levels, cleaning filters, and verifying the pump system.
Can the YR06617 operate continuously?
Yes, it is designed for prolonged operation while maintaining specified thermal stability.
How do I troubleshoot if the YR06617 does not power on?
Check the power supply connection, ensure the outlet is functioning, and inspect the internal circuit for issues.
What are the recommended fluids for the YR06617?
It is best to use compatible coolant fluids as specified in the user manual for optimal performance.
How can I ensure accurate temperature readings from the YR06617?
Calibrate the unit regularly and ensure that the temperature sensor is clean and unobstructed.
Can I request a quote for the YR06617 Recirculating Chiller?
Yes, you can request a personalized quote to get the best pricing and service for the YR06617.
