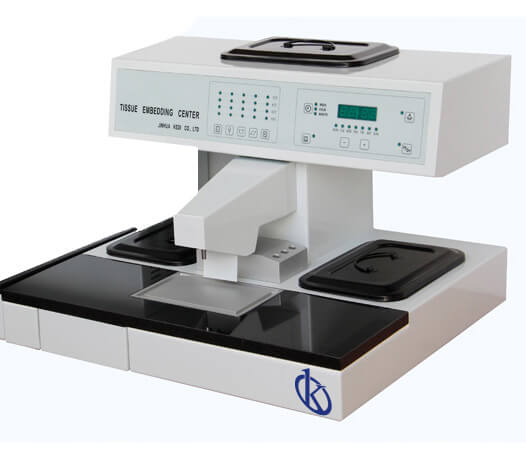

Installation and Commissioning Guide for the YR439 Tissue Embedding System
The YR439 Tissue Embedding System is a comprehensive paraffin dispensing unit designed for optimal sample processing in pathological anatomy. In this guide, we will walk you through the installation and commissioning process, ensuring that you can maximize the capabilities of the YR439 from the start.
Understanding the YR439 Tissue Embedding System
The YR439 integrates advanced technology with user-friendly features, including a 3-liter paraffin chamber, a heated work area, and a cooling point. The ergonomic design allows for comfortable sample processing, enhanced by adjustable LED lighting.
Technical Specifications of the YR439
| Specification | Details |
|---|---|
| Model | YR439 |
| Paraffin Chamber Capacity | 3 liters |
| Temperature Range of Heated Areas | 55 - 70 ℃ |
| Temperature Control Precision | ±1% |
| Power Supply | 220V±10% 50Hz; 110V±10% 60Hz |
| Power Consumption | 650W |
| Dimensions | 525×550×385 mm (Width×Depth×Height) |
| Net Weight | 26 kg |
Installation Process
Follow these steps to ensure a smooth installation of the YR439 Tissue Embedding System:
- Unbox the Unit: Carefully remove the YR439 and its accessories from the packaging. Ensure all components are present.
- Site Preparation: Select a flat and stable surface to place the unit. Ensure there is adequate ventilation and accessibility to power supply.
- Level the Equipment: Use a leveling tool to adjust the feet of the YR439, ensuring it is stable and does not wobble.
- Connect to Power: Plug the YR439 into a properly rated power outlet.
- Initial Setup: Power on the unit by pressing the main switch. Follow the on-screen prompts to set up basic configurations.
- Calibration: Check and calibrate the temperature settings to ensure optimal performance.
- First Run: Run a test cycle to verify all functionalities are working correctly.
Common Installation Mistakes to Avoid
Here are some pitfalls to watch out for during installation:
- Failure to level the equipment properly can lead to inaccurate temperature readings.
- Connecting to an incorrect voltage outlet may damage the unit.
- Not allowing sufficient space around the unit can restrict ventilation and impact performance.
Commissioning the YR439 for Optimal Performance
Once the installation is complete, it is essential to commission the YR439 for optimal operation. This includes programming operational parameters and performing initial test runs.
Setting Up Temperature Controls
Utilize the LED display to program the desired temperature settings for the paraffin chamber and heated work areas. Adjust these settings based on the specific requirements of your applications.
Utilizing the Programmable Control Features
The YR439 features fully programmable controls that allow for automatic start and stop functions. Familiarize yourself with these settings to enhance workflow efficiency.
Frequently Asked Questions
What are the key features of the YR439 Tissue Embedding System?
The YR439 offers a 3-liter paraffin chamber, ergonomic heating area, adjustable LED lighting, and programmable controls for automatic operation. These features enhance user convenience and sample processing efficiency.
How do I properly calibrate the YR439?
Calibration involves setting the temperature controls to the desired levels and running test samples. It is crucial to monitor the temperature readings during the first runs to ensure accuracy.
What should I do if the YR439 does not power on?
If the YR439 fails to power on, check the power connection, ensure the outlet is functional, and inspect the unit for any visible damage that may affect operation.
How can I ensure the longevity of the YR439?
Regular maintenance, following operational guidelines, and keeping the unit clean will help prolong the lifespan of the YR439. Additionally, ensure that any software updates or upgrades are applied as recommended.
What are the temperature control settings for the YR439?
The YR439 allows for temperature settings ranging from 55 to 70 degrees Celsius, with a control precision of ±1%. It is essential to set these according to your specific application needs.
Are there any safety features in the YR439?
Yes, the YR439 includes a double overheating protection mechanism, ensuring safe operation and energy efficiency during use.
Can I request a quote for the YR439?
Absolutely! You can request a quote on Kalstein Plus to get the best pricing and options available for the YR439 Tissue Embedding System.
