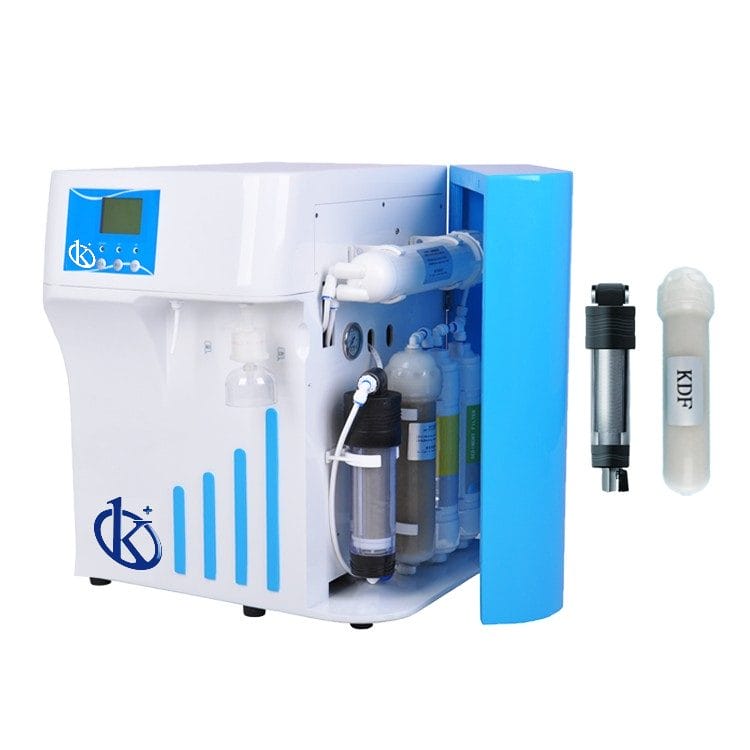

Installation and Commissioning Guide for the YR54-1 Water Purification System
The YR54-1 Water Purification System is a compact solution designed to provide both pure and ultrapure water in a single unit. This guide outlines the essential steps for installing and commissioning the YR54-1, ensuring that operators can achieve optimal performance and reliability from the system.
Unboxing and Initial Setup
Before beginning the installation process, it is crucial to thoroughly check the contents of the box. Ensure you have the following items:
- YR54-1 Water Purification System
- Power supply cables
- Quick-connect fittings
- User manual
- Calibration solutions
Once you have confirmed all components are present, follow these initial steps:
- Position the YR54-1 on a stable, clean surface in your laboratory, considering accessibility for future maintenance.
- Ensure the unit is level to prevent any operational issues.
- Connect the power supply according to the guidelines in the user manual.
Water Source and Connections
The YR54-1 requires a suitable water source for optimal operation. It is designed to accept urban tap water with the following specifications:
- Input water pressure: 0.15-0.5MPa
- Input water temperature: 5-40°C
Connect the water input to the system using the quick-connect fittings provided. Ensure that all connections are secure to prevent leaks. A leak detection system is integrated into the YR54-1 to automatically shut off the water supply in case of a leak.
Power-Up Sequence
Upon completing the physical installation, power up the YR54-1 by switching on the main power supply. Follow these steps for the initial power-up:
- Press the power button on the front panel.
- Observe the LCD screen for any startup diagnostics or error messages.
- Allow the system to complete its self-check, which may take several minutes.
Calibration and First-Run Validation
After successfully powering up the YR54-1, calibration is necessary to ensure accurate measurements. Follow these steps:
- Prepare the calibration solutions as outlined in the user manual.
- Access the calibration mode from the main menu on the LCD display.
- Follow the prompts to calibrate the conductivity and temperature sensors.
Once calibration is complete, validate the first measurements by checking the output water quality against the specifications provided in the user manual.
Common Setup Mistakes to Avoid
Proper installation and commissioning of the YR54-1 are vital to its performance. Here are some common mistakes to avoid:
- Neglecting to properly level the device, leading to inaccurate readings.
- Failing to check for leaks in the water connections post-installation.
- Skipping the calibration process, which can result in poor water quality.
Technical Data Overview
| Specification | Details |
|---|---|
| Model | YR54-1 |
| Water Source | Urban tap water, input pressure: 0.15-0.5MPa, temperature: 5-40°C |
| Flow Rate | 1.5-2L/min (with pressure barrel) |
| Machine Capacity | 15 L/H |
| Output Water Quality | RO: Desalination rate up to 95-99% (using new RO membrane), UP: resistivity 18.25MΩ.cm@25°C |
Frequently Asked Questions
What are the ideal environmental conditions for operating the YR54-1?
The YR54-1 operates optimally in controlled environments with stable temperatures between 5°C and 40°C and relative humidity levels below 80%. Adequate ventilation is also recommended.
How often should the consumables be replaced in the YR54-1?
The frequency of consumable replacement varies based on usage. It is advised to monitor the system's display for reminders and perform maintenance checks every six months.
Can the YR54-1 be installed under a laboratory bench?
Yes, the YR54-1 is designed for space-saving installation and can be placed under a bench. Ensure there is sufficient clearance for air circulation and access to connections.
What safety features are included in the YR54-1?
The YR54-1 is equipped with a water leak sensor that automatically shuts off the water supply and triggers an alarm in the event of a leak, ensuring safe operation.
How do I troubleshoot common error codes on the YR54-1?
Refer to the user manual for an error code chart. Common issues include power supply problems, water source irregularities, or calibration errors, each with specific troubleshooting steps outlined in the manual.
What is the warranty coverage for the YR54-1?
The YR54-1 comes with a standard warranty covering parts and labor for a period of two years from the date of purchase, ensuring peace of mind for operators.
Where can I request a quote for the YR54-1?
You can easily request a quote for the YR54-1 by contacting our sales department or visiting our online portal.
