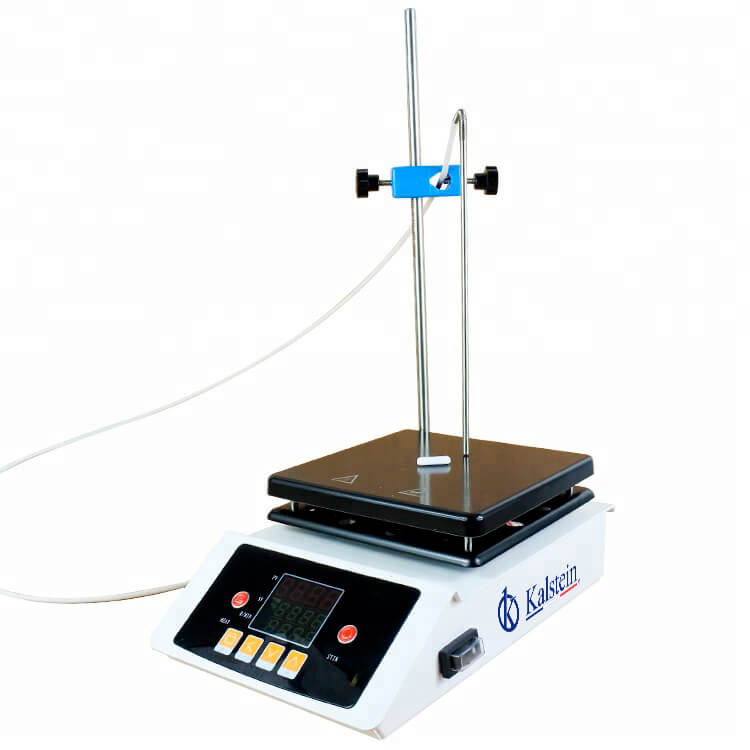

Installation and Environmental Conditions for the YR02938 Intelligent Digital Display Ceramic Top Hotplate Stirrer
The YR02938 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a sophisticated laboratory device designed for precise heating and stirring applications. Understanding the installation requirements and environmental conditions is critical for ensuring optimal performance and longevity of the equipment. This article delves into the specific conditions and installation guidelines to help users effectively set up and operate the YR02938.
Essential Installation Requirements for YR02938
Before setting up the YR02938, it is important to consider various installation factors that can affect the functionality of the hotplate stirrer. Below is a checklist to guide users through the installation process:
| Installation Step | Description |
|---|---|
| Unboxing | Carefully unpack the unit and inspect for any damages during shipping. |
| Positioning | Place the hotplate stirrer on a stable, level surface away from direct sunlight and drafts. |
| Electrical Connection | Ensure the device is plugged into a power outlet that matches the specified voltage (160-240 V or 110-130 V). |
| Calibration | Perform the first-run calibration to confirm accurate temperature readings. |
| Clearance | Maintain sufficient clearances around the unit for ventilation and safe operation. |
Environmental Conditions for Optimal Operation
The YR02938 is designed to operate effectively under specific environmental conditions. It is important to maintain these conditions for optimal performance:
- Temperature Range: The device should be operated in an ambient temperature environment not exceeding 40°C. This ensures that the internal components function efficiently without overheating.
- Humidity: The ideal humidity level should be below 80% to prevent moisture-related issues that could affect the electronic components.
- Power Supply: Ensure that the power supply is stable and free from fluctuations. The hotplate stirrer requires a power supply of 550 W for heating and 40 W for the motor.
- Vibration and EMI: Place the YR02938 away from sources of vibration and electromagnetic interference (EMI) to prevent inaccurate operational readings.
Technical Specifications of YR02938
| Specification | Details |
|---|---|
| Model | YR02938 |
| Plate Dimension (mm) | 180 x 180 |
| Temperature Control | PID Automatic Control |
| Temperature Range | Ambient to 400°C |
| Maximum Plate Temperature | 325°C |
| Stirring Speed | 100-1800 RPM |
| Permissible Ambient Temperature | Up to 40°C |
| Weight | 5.1 kg |
Common Installation Mistakes and How to Avoid Them
Even experienced operators can make mistakes during the installation of the YR02938. Below are common errors and tips for avoiding them:
- Improper Leveling: Failing to level the hotplate stirrer can result in inaccurate heating and stirring. Always use a spirit level to confirm that the unit is perfectly level.
- Incorrect Electrical Connection: Connecting to the wrong voltage can damage the equipment. Double-check the voltage requirements before powering up.
- Neglecting Ventilation: Placing the device in a confined space can restrict airflow and lead to overheating. Ensure there is adequate space for airflow around the unit.
Frequently Asked Questions
What are the specific environmental conditions required for operating the YR02938?
The YR02938 should be operated in an ambient temperature not exceeding 40°C, with humidity levels below 80%. It should also be kept away from sources of vibration and electromagnetic interference.
How do I ensure proper calibration of the YR02938?
To calibrate the YR02938, follow the manufacturer’s guidelines for the calibration procedure. Ensure that the device is at a stable temperature before beginning the calibration process.
What are the common installation mistakes when setting up the YR02938?
Common installation mistakes include improper leveling of the unit, incorrect electrical connections, and neglecting ventilation. Always ensure the equipment is level and connected to the proper voltage.
How can I maintain the YR02938 for optimal performance?
Regular maintenance includes cleaning the ceramic top, checking for any signs of wear, and ensuring that the electrical connections are secure. Follow the maintenance schedule as outlined in the user manual.
What is the maximum temperature the YR02938 can reach?
The YR02938 can heat up to a maximum plate temperature of 325°C, making it suitable for various laboratory applications.
How does the PID control system of the YR02938 work?
The PID (Proportional-Integral-Derivative) control system maintains the desired temperature by continuously adjusting the heating element's power to minimize the difference between the setpoint and the actual temperature.
Where can I obtain replacement parts for the YR02938?
Replacement parts can be sourced from authorized suppliers or directly through the manufacturer. Always use genuine parts to ensure compatibility and maintain warranty coverage.
