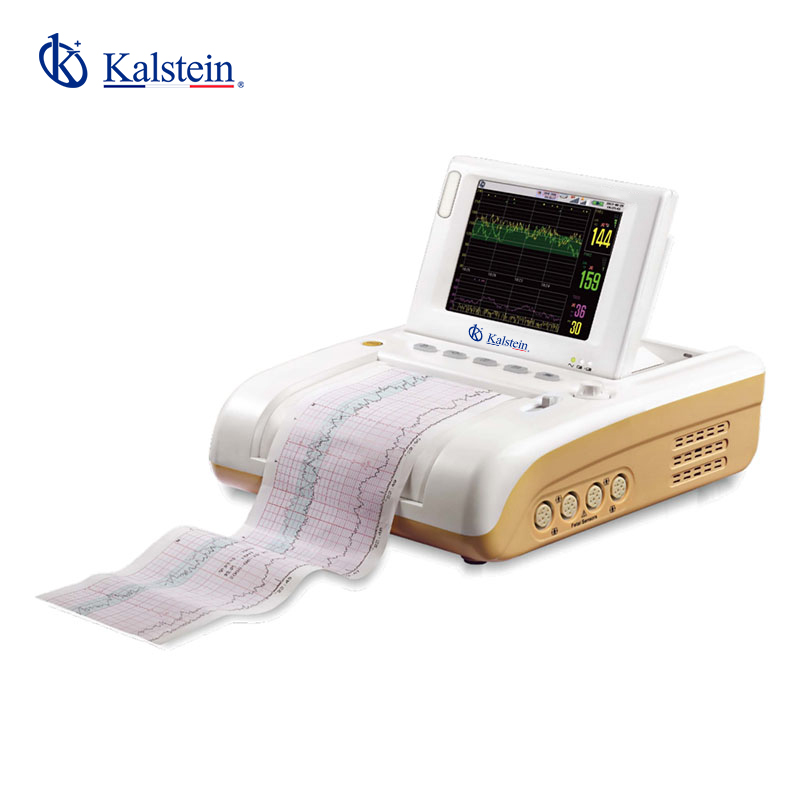

Installation Guide and Commissioning for the YR02190B Fetal Monitor
The YR02190B Fetal Monitor is a sophisticated device designed for monitoring fetal heart rate and uterine contractions. Proper installation and commissioning are crucial for ensuring accurate readings and effective performance. This guide will walk you through the detailed steps required to install and commission the YR02190B, making it ready for clinical use.
Unboxing Checklist
Before proceeding with the installation, ensure that all components are present and in good condition. The unboxing checklist includes:
- YR02190B Fetal Monitor unit
- Power adapter and cord
- Ultrasound transducer
- TOCO sensor
- User manual
- Calibration certificate
- Carrying case (if applicable)
Installation Steps
Follow these steps to install the YR02190B Fetal Monitor:
1. Selecting the Location
Choose a stable, flat surface in a controlled environment. The area should be free from excessive vibration and electromagnetic interference.
2. Anchoring and Leveling
Ensure the monitor is securely anchored, particularly if mounted on a wheeled cart. Level the monitor to avoid any discrepancies in readings.
3. Connecting the Power Supply
Connect the power adapter to the monitor and plug it into a reliable power source. Ensure the voltage matches the specifications outlined in the user manual.
4. Sensor Installation
Attach the ultrasound transducer and TOCO sensor as instructed in the user manual, ensuring they are securely connected to the monitor.
5. First-run Calibration
After powering on the device, follow the prompts on the display to complete the first-run calibration process. This is essential for accurate measurements.
6. Validating First Measurements
Once calibrated, perform initial measurements to ensure everything is functioning correctly. Document the readings for future reference.
Common Setup Mistakes
Avoid common pitfalls such as:
- Improper sensor connections
- Inadequate leveling of the monitor
- Bypassing the calibration process
Technical Specifications of YR02190B
| Specification | Details |
|---|---|
| Model | YR02190B |
| FHR | Fetal Heart Rate 50–240 bpm |
| Resolution | 800 x 600 |
| Maximum Audio Output Power | 1.5 Watt |
| Working Frequency | 1.0 MHz |
| Signal Processing | Special DSP system and modern recognition |
| Alarm Range | High Limit: 160, 170, 180, 190 bpm; Low Limit: 90, 100, 110, 120 bpm |
| Power Consumption | Less than 5mW/cm² |
Frequently Asked Questions
What are the steps to troubleshoot the YR02190B Fetal Monitor if it does not power on?
If the monitor does not power on, check the power connection, ensure the power outlet is functional, and inspect the power adapter for damage. If these steps fail, consult the user manual or contact customer support.
How do I perform a calibration check on the YR02190B?
Calibration checks can be performed by accessing the calibration section in the settings menu of the monitor. Follow the on-screen instructions to complete the calibration process.
What maintenance is required for the YR02190B Fetal Monitor?
Regular maintenance includes cleaning the sensors, checking the power supply, and verifying calibration at specified intervals as detailed in the user manual.
How can I ensure accurate readings from the YR02190B?
To ensure accurate readings, always follow the installation instructions, perform regular calibrations, and keep the sensors clean and free from obstructions.
What is the warranty period for the YR02190B?
The warranty period for the YR02190B typically lasts for 12 months from the date of purchase. Refer to the warranty card included in the packaging for further details.
Conclusion
The YR02190B Fetal Monitor is an advanced tool for monitoring fetal health during pregnancy. Proper installation and commissioning are vital for its effectiveness. By following this guide, you can ensure that your monitor is set up correctly for optimal performance.
