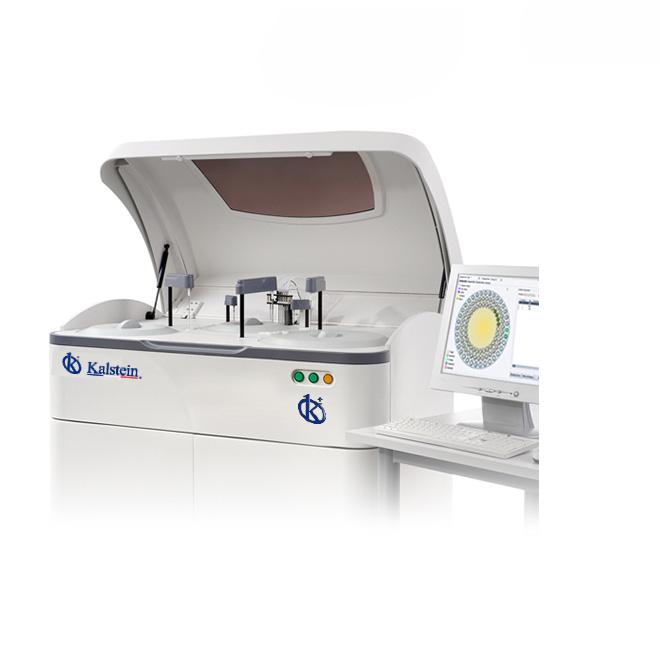

Installation and Startup Guide for the YR06075 Automatic Chemistry Analyzer
The YR06075 Automatic Chemistry Analyzer is a state-of-the-art laboratory device designed to deliver high-performance chemical analysis with precision. This guide will walk you through the necessary steps for installation and startup, ensuring that your device is functioning optimally right from the beginning.
Understanding the YR06075 Chemistry Analyzer
The YR06075 model represents a significant advancement in laboratory technology. It is capable of conducting up to 560 tests per hour, making it suitable for high-demand environments. The analyzer uses an advanced inverted diffraction network system with 12 wavelengths, guaranteeing reliable and accurate measurements.
Technical Specifications of YR06075
| Specification | Detail |
|---|---|
| Model | YR06075 |
| Tests per Hour | 560 |
| Washing System | 10-step |
| Power Supply | 100-240 VAC 50/60 Hz, 1500W |
| Temperature | 100℃, 300℃ |
| Humidity | 40%-85% |
| Water Consumption | <20 L/hour |
| Dimensions | 1150mm(L) x 726.5mm(W) x 1150mm(H) |
| Light Source | Halogen Tungsten Lamp |
| Photometry | Grating Photometry |
| Wavelengths | 340nm, 405nm, 450nm, 505nm, 540nm, 570nm, 600nm, 635nm, 670nm, 700nm, 760nm, 795nm |
| Absorption Range | 0-2.500 Abs |
| Resolution | 0.0001 Abs |
Unboxing the YR06075
When unboxing your YR06075, verify that all components are present. The unboxing checklist should include:
- YR06075 Analyzer Unit
- Power Cord
- Instruction Manual
- Calibration Standards
- Cleaning Supplies
- Optional Modules (if applicable)
Installation Procedure
Ensure the installation area meets the environmental requirements for the YR06075. The space should be:
- Free of excess vibration.
- Well-ventilated.
- Stable temperature between 20-25°C.
- Humidity levels within 40% to 85%.
Once the area is prepared, proceed as follows:
- Position the analyzer on a stable, level surface.
- Securely connect the power supply.
- Connect the water supply and drainage as specified in the manual.
Powering Up the Analyzer
After installation, power up the YR06075 by following these steps:
- Turn on the power switch located at the back of the unit.
- Wait for the self-check sequence to complete.
- Follow the on-screen instructions to complete the initial setup.
Calibration and First Measurement
Calibrating your YR06075 is crucial for accurate results. Use the calibration standards included in your package to perform this initial calibration.
To conduct the first measurement:
- Prepare the calibration standards as per instructions.
- Run the calibration cycle through the analyzer's interface.
- Validate the calibration by measuring the standards.
Common Setup Mistakes and Solutions
Poor setup can lead to inaccurate results. Here are some common mistakes and their solutions:
| Mistake | Solution |
|---|---|
| Not leveling the analyzer | Use a spirit level to adjust the feet of the analyzer until it is level. |
| Incorrect power supply connection | Double-check the voltage and ensure proper connection to the main supply. |
| Forgetting to run self-check | Always run the self-check before performing any measurements. |
Frequently Asked Questions
What are the power requirements for the YR06075?
The YR06075 requires a power supply of 100-240 VAC at 50/60 Hz, with a maximum power consumption of 1500W.
How often should the YR06075 be calibrated?
Calibration frequency depends on usage; however, it is recommended to calibrate daily or before critical measurements to ensure accuracy.
What types of samples can be analyzed with the YR06075?
The YR06075 can analyze a wide variety of chemical samples, including clinical, industrial, and environmental samples based on the configured modules.
How do I troubleshoot error codes on the YR06075?
Refer to the troubleshooting section in the manual, which provides a detailed list of error codes, their probable causes, and solutions.
What maintenance is required for the YR06075?
Regular maintenance includes cleaning the analyzer as prescribed, checking fluid levels, and ensuring all connections are secure.
Can I connect the YR06075 to a laboratory information system?
Yes, the YR06075 can be integrated into laboratory information systems using its built-in connectivity features, allowing for streamlined data management.
