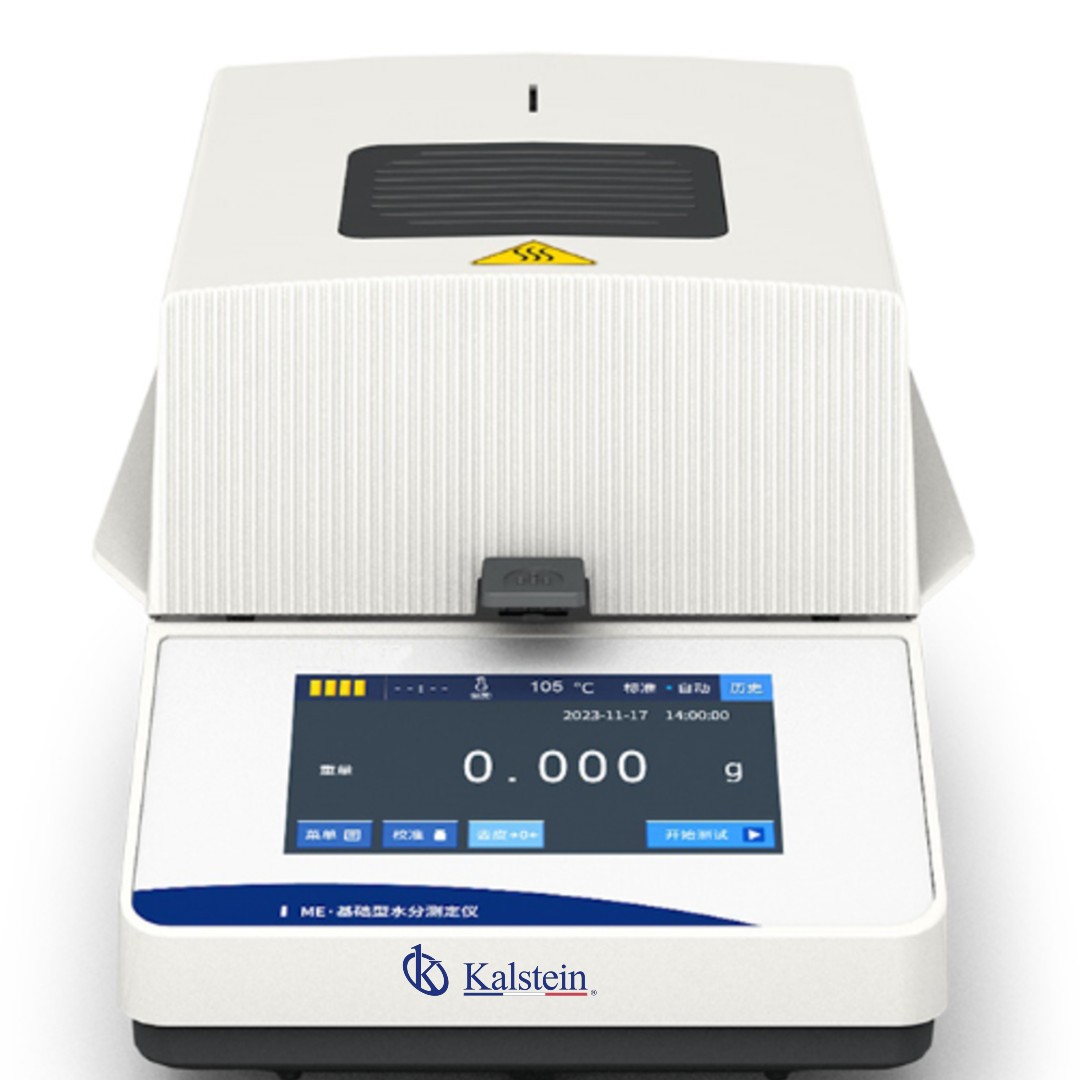

Installation and Startup Guide for the YR06696 Moisture Analyzer
The YR06696 Moisture Analyzer is a precision instrument widely used in laboratories and industries for accurately determining moisture content in various substances. Its advanced halogen lamp and user-friendly interface make it an essential tool in quality control procedures across sectors such as food, pharmaceuticals, chemicals, and agriculture. This guide will provide a comprehensive overview of how to install and start up the YR06696, ensuring that you are fully equipped to obtain precise and reliable results.
Understanding the YR06696 Moisture Analyzer
The YR06696 is engineered to deliver consistent and reproducible results in moisture analysis. The key features that make this model stand out include:
- 5-Inch Touchscreen: An intuitive interface that simplifies operation and enhances data visualization through real-time analysis curves.
- Halogen Heating Source: Provides rapid heating and uniform thermal distribution for effective drying.
- Real-Time Test Curve: Monitors weight loss dynamics throughout the drying process, giving users immediate insights.
- Versatile Modes: Offers standard, quick, and gentle drying modes, with options for automatic, manual, or timed stops.
- Data Management: Capable of storing 20 groups of settings and generating historical test reports.
Technical Specifications of the YR06696
| Parameter | Features |
|---|---|
| Model | YR06696 |
| Maximum Capacity | 110 g |
| Weight Readability | 0.01 g |
| Weight Sensor | Load Cell |
| Heating Source | Halogen Lamp |
| Temperature Range | 40°C - 160°C (1°C increments) |
| Humidity Range | 90.00% - 10.00% |
| Humidity Readability | 0.1% |
| Screen | 5-Inch Touchscreen |
| Plate Size | 96 mm |
| Storage | 20 Groups of Memory |
| Analysis Curve | Dynamic Real-Time |
| Test Height | 30 mm |
| Power Supply | 220V 50Hz / 110V 60Hz |
| Instrument Dimensions | 33.6 x 21.4 x 16.6 cm |
| Packaging Size | 41.5 x 31.0 x 25.5 cm |
| Net Weight | 3.5 kg |
| Gross Weight | 4.0 kg |
Unboxing and Initial Setup
Upon receiving the YR06696 Moisture Analyzer, follow these steps for a successful unboxing and initial setup:
- Unboxing Checklist:
Ensure all components are included: the analyzer unit, power cord, user manual, and calibration weights. - Site Preparation:
Choose a stable and vibration-free surface for the analyzer. Ensure proper ventilation and adequate space around the unit for operation and maintenance. - Leveling:
Use a leveling tool to ensure the analyzer is perfectly horizontal. This is crucial for accurate measurements. - Power Connection:
Connect the power cord to an appropriate outlet (110V or 220V) and switch on the device.
Calibration and First-Run Validation
Calibrating the YR06696 is essential for accurate measurements. Follow the steps below for calibration:
- Initial Calibration:
Use the provided calibration weights to calibrate the unit before the first measurement. Access the calibration mode via the touchscreen menu. - Validate First Measurement:
After calibration is complete, run a test with a known sample to validate the accuracy of the readings. - Common Setup Mistakes:
Ensure the sample is spread evenly on the plate and that the sensor is clean. Avoid placing the analyzer near air vents or in drafty areas.
Common Troubleshooting Steps
Even with proper setup, users may encounter issues. Here are common symptoms and their solutions:
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment does not power on | Power cord disconnected or faulty outlet | Check power connections and try a different outlet |
| Error code E-03 displayed | Overheating or internal sensor failure | Allow the unit to cool down; if problem persists, contact support |
| Inconsistent readings | Sample unevenly distributed or contaminated sensor | Ensure even sample distribution and clean the sensor |
Maintenance and Care for Longevity
To ensure the YR06696 lasts and operates effectively, regular maintenance is vital:
- Cleaning: Regularly clean the sample plate and the sensor with a soft, dry cloth to avoid contamination.
- Calibration Checks: Perform calibration checks at regular intervals, especially if the analyzer has been moved or after heavy use.
- Storage Conditions: Store the unit in a controlled environment, avoiding extreme temperatures and humidity levels.
Frequently Asked Questions
What is the maximum sample capacity of the YR06696 Moisture Analyzer?
The YR06696 can analyze samples with a maximum capacity of 110 grams.
Can the drying temperature be adjusted on the YR06696?
Yes, the drying temperature can be set between 40°C and 160°C, adjustable in 1°C increments.
How are test reports transferred from the YR06696?
The device features a historical test report function that allows users to view previous analyses directly on the screen or manage them via the communication port settings.
What are the advantages of using the YR06696 in a laboratory?
The advantages include a modern interface that minimizes operational errors, real-time monitoring of sample behavior, and its quiet operation, making it suitable for lab environments.
Is the YR06696 adaptable for different voltages?
Yes, the YR06696 operates on both 110V and 220V, making it adaptable for various regions.
