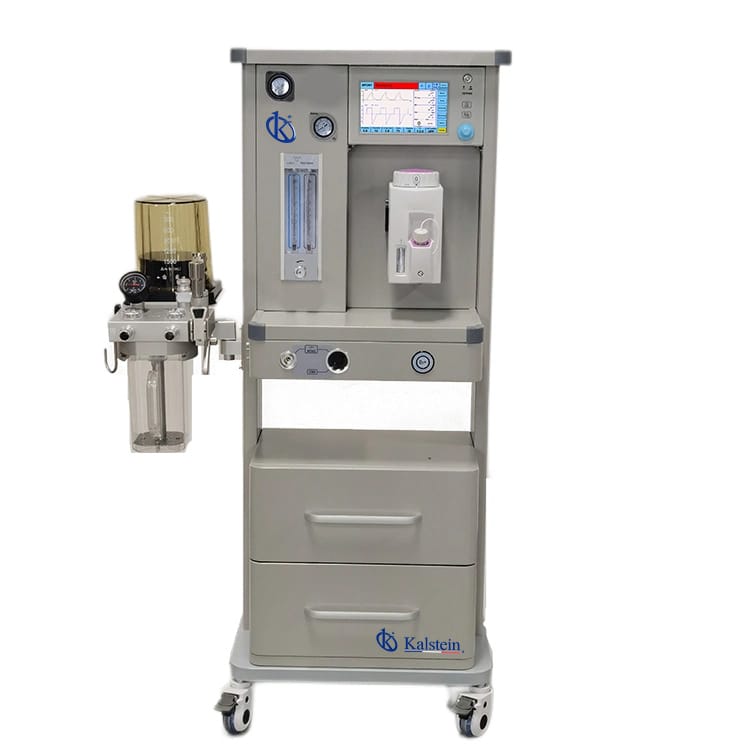

Understanding Measurements and Result Interpretation with the YR06100 Veterinary Anesthesia Machine
The YR06100 Veterinary Anesthesia Machine is a highly versatile device tailored for veterinary professionals. It caters to animals of various weights and sizes, providing reliable anesthesia management. This article will delve into the interpretation of measurements and results, ensuring that operators can effectively utilize this machine in clinical settings.
Technical Specifications of the YR06100
| Specification | Description |
|---|---|
| Model | YR06100 |
| Working Mode | Closed, Semi-closed, Semi-open system, Open |
| Driven Mode | Pneumatically driven, manual controlled |
| Application | 0.5-100kg animal |
| Anesthesia Gas Source Switch | Start or stop the gas source control |
| Alarm Parameter | Upper tidal volume alarm, low oxygen alarm, Apnea, Power failure |
| Oxygen Flush | 25L/min~75L/min |
| Airway Pressure | O2: 0.25Mpa~0.65Mpa |
| Concentration Range | Halothane: 0.2 to 5%, Isoflurane: 0.2 to 5%, Sevoflurane: 0.2 to 8% |
| Flow Rate Range | 0.2 to 15L/min, 0.2 to 10L/min (normal application) |
| Anesthetic Volume | 340ML (dry cavity), 300ML (wet cavity) |
| Suspension Type | Selectatec international standard type |
Interpreting Anesthesia Measurements
Understanding measurements is crucial for the effective use of the YR06100. Key parameters include the tidal volume, oxygen concentration, and flow rates. Each of these measurements must be monitored closely to ensure patient safety and effective anesthesia delivery.
Tidal Volume
Tidal volume refers to the amount of air delivered to the patient during each breath. The YR06100 is equipped with alerts for upper tidal volume limits, which helps prevent over-inflation of the lungs. Operators should familiarize themselves with standard tidal volume ranges based on the animal's weight to interpret results accurately.
Oxygen Concentration
The concentration of anesthetic gas is another critical measurement that needs interpretation. The YR06100 provides a concentration range for different gases (Halothane, Isoflurane, and Sevoflurane). Interpreting these concentrations correctly helps in adjusting the anesthesia levels according to the specific requirements of the patient.
Flow Rate
The flow rate of anesthetic gas must also be monitored. The YR06100 allows operators to set and adjust flow rates between 0.2 to 15L/min depending on the procedure and patient needs. Understanding how to adjust the flow based on the patient's response is essential for effective anesthesia management.
Common Misinterpretations of Measurements
Operators may encounter various challenges in interpreting the measurements displayed by the YR06100. Below are some common misinterpretations and how to avoid them:
- Misreading Tidal Volume: Ensure that the unit of measurement is understood; tidal volume should be assessed in mL/kg based on the patient's weight.
- Confusing Concentration Levels: Always cross-reference the anesthetic gas being used with the recommended concentration levels specific to that gas.
- Ignoring Alarms: The YR06100 features multiple alarms for critical parameters. Ignoring these alarms can lead to severe consequences; always verify the cause of an alarm before proceeding.
Error Handling and Troubleshooting
Occasionally, operators may face error codes or alarms from the YR06100. Here are common symptoms, probable causes, and solutions:
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment does not power on | Power supply failure or internal fault | Check power connections and test the outlet; contact service if the issue persists. |
| Error code E-03 | Alarm for low oxygen | Check oxygen supply; replace the tank if necessary and reset the unit. |
| Inconsistent readings | Blocked airway or faulty sensors | Inspect the airway for blockages; clean or replace sensors as needed. |
Conclusion: Ensuring Safe Anesthesia Delivery
Effectively interpreting measurements from the YR06100 Veterinary Anesthesia Machine is essential for safe and successful anesthesia management. By understanding key parameters and recognizing potential issues, operators can ensure optimal performance and patient safety.
Frequently Asked Questions
What is the weight capacity of the YR06100 Veterinary Anesthesia Machine?
The YR06100 is designed to accommodate animals weighing between 0.5 to 100 kg, making it highly versatile for different animal sizes.
How can I ensure accurate tidal volume readings?
To ensure accurate tidal volume readings, always set the machine according to the animal's weight and monitor for any alarms indicating deviations from the set parameters.
What types of anesthetic gases can be used with the YR06100?
The YR06100 is compatible with Halothane, Isoflurane, and Sevoflurane, each offering specific concentration ranges for safe use.
How do I troubleshoot alarm errors on the YR06100?
Troubleshooting alarm errors requires checking the specific parameter associated with the alarm. Consult the user manual for detailed guidance on resolving issues based on the error code displayed.
What maintenance is required for the YR06100?
Regular maintenance includes checking and replacing gas supplies, cleaning sensors, and ensuring that all mechanical components are functioning correctly to avoid failures during use.
Can the YR06100 be used for both small and large animals?
Yes, the YR06100 is designed to be effective for a wide range of animal sizes, from small pets to larger animals, by adjusting the settings accordingly.
How do I request a quote for the YR06100?
To request a quote for the YR06100 Veterinary Anesthesia Machine, please contact our sales team for assistance and competitive pricing.
