Interpreting Results and Reading Measurements with the YR02186 Incubator

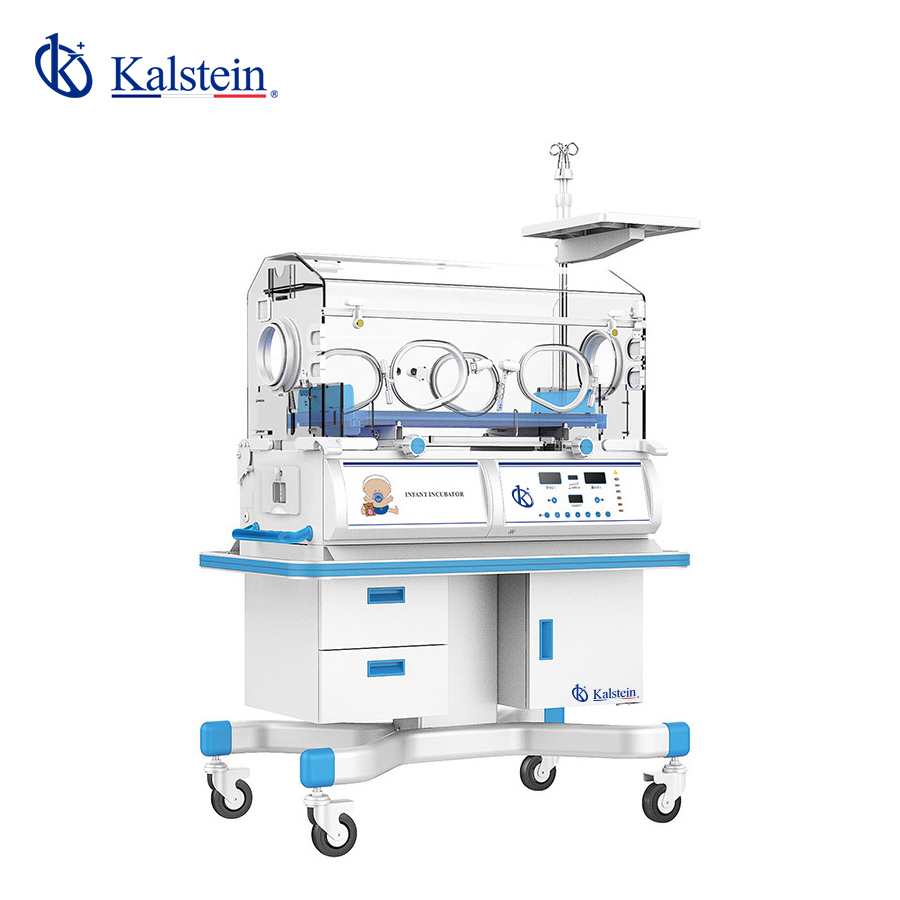

The YR02186 Infant Incubator is designed to provide a safe and controlled environment for newborns, particularly preterm or ill infants. Understanding how to interpret the results and read the measurements from this incubator is crucial for healthcare professionals. This guide will focus on the key features of the YR02186, how to accurately read its display, and the significance of its measurements.
Technical Overview of the YR02186
| Model | YR02186 |
|---|---|
| Temperature Control of Air | Yes |
| Skin Temperature Control | Yes |
| Temperature Control at 37 °C | Yes |
| Reclining Cradle | Yes |
| Humidity Display | Optional |
| Humidity Control | Optional |
| Side Door | Optional |
| Aluminum Heat Retention Tank | Yes |
| Operating Windows and Access Ports | 2 Ports, 4 Windows |
| Cabinet | Yes |
| Adjustable Working Height | Optional |
| Additional Rear Door | Optional |
| Baby Weighing Bed | Optional |
| Low Noise DC Motor | Optional |
Understanding Display Measurements
The YR02186 features a microprocessor-controlled servo system that ensures precise and reliable temperature control. On the display, several key measurements are shown:
- Set Temperature: This is the target temperature for the incubator, which can be adjusted based on the infant's needs.
- Monitored Air Temperature: This indicates the current temperature of the air inside the incubator.
- Skin Temperature: This measurement reflects the temperature of the infant's skin, providing critical data for monitoring their condition.
- Heating Power: This is displayed to inform caregivers about the operational heating level being used to maintain the set temperature.
Normal Ranges and Error Considerations
When operating the YR02186, it is crucial to understand the normal ranges for the various measurements:
- Set Temperature: Typically set between 32 °C and 37.5 °C, depending on the infant's condition.
- Skin Temperature: Ideal skin temperature for newborns is between 36.5 °C and 37.5 °C.
- Air Temperature: Should closely match the set temperature for optimal incubator performance.
If the skin temperature exceeds 37 °C, the incubator will automatically disable the heating function to prevent overheating.
Common Misinterpretations and How to Avoid Them
Misreading the data on the YR02186 can lead to inappropriate care decisions. Here are some common misinterpretations:
- Confusing Air and Skin Temperature: Always differentiate between the air temperature and the skin temperature. The skin temperature is a direct measure of the infant's warmth.
- Ignoring Alarm Indicators: The incubator features audible and visible alarms for multiple failures with three priority levels. These alarms should be addressed immediately.
- Overlooking Calibration Signals: Regular calibration and self-check functions are essential. Ensure these checks are performed to maintain accuracy.
Utilizing the YR02186 for Various Clinical Scenarios
The YR02186 is highly versatile and can be adapted to various clinical situations:
- Premature Births: The incubator provides a stable environment crucial for preterm infants who cannot regulate their body temperature effectively.
- Therapeutic Hypothermia: In cases of hypoxic-ischemic encephalopathy, controlled temperatures can be critical.
- General Neonatal Care: For infants needing close monitoring, the YR02186 ensures a controlled setting.
Maintenance and Troubleshooting
Regular maintenance of the YR02186 is essential for accurate functioning. Here are common issues and solutions:
| Symptom | Probable Causes | Solutions |
|---|---|---|
| Equipment Does Not Power On | Power cable disconnected, blown fuse | Check connections, replace fuse |
| Error Code E-03 | Temperature sensor failure | Inspect sensor, replace if necessary |
| Inconsistent Readings | Calibration error, environmental interference | Recalibrate device, check surroundings |
Frequently Asked Questions
What is the optimal air temperature range for the YR02186?
The optimal air temperature range for the YR02186 is typically between 32 °C and 37.5 °C, depending on the specific needs of the infant.
How do I interpret the heating power displayed on the YR02186?
The heating power indicator reflects the current strength of the heating element in use to maintain the set temperature. A higher power level indicates greater heating output.
What should I do if the YR02186 displays an alarm?
When an alarm sounds, it is essential to address the issue immediately. Check the display for the type of alarm, assess the situation, and follow troubleshooting steps as necessary.
How frequently should the YR02186 be calibrated?
Calibration should be performed regularly as part of the maintenance schedule to ensure accuracy in temperature and humidity readings. It is advisable to check calibration monthly.
Can I customize the YR02186 with additional features?
Yes, the YR02186 has optional accessories such as a humidity monitor and adjustable height features that can be added based on the clinical requirements.
How do I clean the water tank of the YR02186?
The water tank is designed to be easily removable for cleaning and disinfection. Gently remove it from the incubator, clean with appropriate disinfectants, and ensure it is dry before reinserting it.
What is the expected lifespan of the YR02186?
The expected lifespan of the YR02186 is about 7-10 years with proper maintenance and regular servicing, depending on usage conditions.
