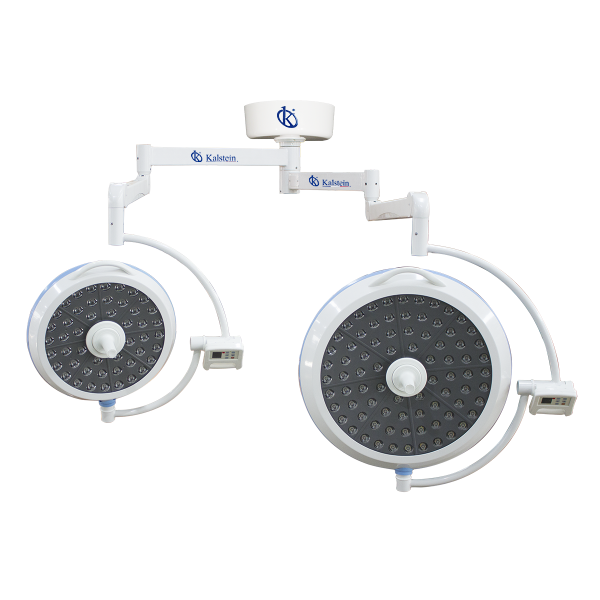

LED Double-Head Surgical Lamp YR06116: Installation and Commissioning Guide 2026
The LED Double-Head Surgical Lamp YR06116 is an advanced medical lighting solution designed to provide optimal illumination during surgical procedures. This guide focuses on the installation and commissioning process to ensure that operators can set up the lamp effectively, maximizing its performance in clinical environments.
Understanding the Design and Operation of YR06116
The YR06116 operates using a sophisticated counterweight design that adheres to applicable safety requirements. This design enhances safety during use, while its exquisitely structured focus system provides manual focusing capabilities, making operation simple and convenient. This system effectively addresses the technical challenges associated with LED surgical lamps, allowing for precise focus adjustments without any gradation.
Installation Process for YR06116
When installing the LED Double-Head Surgical Lamp YR06116, follow these essential steps:
- Unboxing Checklist: Ensure that all components are included: lamp heads, mounting brackets, power cables, user manual.
- Anchoring: Secure the mounting system to the ceiling structure. Use the provided bolts for stability.
- Leveling: Adjust the angle of the lamp heads to ensure even illumination across the surgical area.
- Power-Up Sequence: Connect the power supply, ensuring proper voltage alignment. Power up the unit to initiate the self-check sequence.
- Calibration: Following the power-up, perform initial calibration to confirm proper functioning of light intensity and focus settings.
- Network Setup: Connect to hospital networks if applicable for integrated systems.
- Validation: Conduct a visual inspection and performance test to validate the initial setup.
Technical Data for LED Double-Head Surgical Lamp YR06116
| Feature | Specification |
|---|---|
| Model | YR06116 |
| Illuminance | 160,000 LuX |
| Service Life | 60,000 hours with no need to change bulbs |
| Temperature Resistant Detachable Handle | ≤160°C |
| Color Temperature Adjustment | 3500K to 5000K in six levels |
| Brightness Adjustment | Automatic 6-stage continuous light adjustment |
Troubleshooting Common Installation Issues
During the installation and commissioning of the YR06116, users may encounter specific issues. Here is a troubleshooting guide to help resolve potential problems:
| Issue | Possible Causes | Solutions |
|---|---|---|
| Equipment Does Not Power On | Power supply issues, faulty connections, or defective unit | Check connections, ensure proper voltage; replace unit if defective |
| Inconsistent Brightness | Calibration errors or faulty bulbs | Re-calibrate brightness settings; check and replace bulbs if necessary |
| Color Temperature Fluctuations | Incorrect settings or damaged components | Verify settings; consult with technical support for component checks |
Frequently Asked Questions
What is the expected service life of the YR06116 surgical lamp?
The YR06116 surgical lamp has an expected service life of 60,000 hours, which eliminates the need for frequent bulb replacements.
How do I adjust the color temperature on the YR06116?
The color temperature of the YR06116 can be adjusted between 3500K and 5000K in six levels, allowing for customization based on surgical needs.
What safety features are integrated into the YR06116 design?
The YR06116 features a counterweight design for stability and safety, ensuring that the lamp remains securely positioned during use.
Can the handle of the YR06116 be sterilized?
Yes, the detachable handle of the YR06116 is made from high-grade medical PPSU materials and can be sterilized at temperatures up to 160°C.
How is the brightness adjusted on the YR06116?
The brightness can be automatically adjusted in a continuous six-stage configuration, allowing for optimal lighting based on surgical requirements.
What are the environmental requirements for installing the YR06116?
The installation environment should maintain standard voltage and frequency conditions, with appropriate ventilation and minimal vibration to ensure proper operation.
Where can I find replacement parts for the YR06116?
Replacement parts and consumables for the YR06116 can be sourced through authorized distributors or directly from the manufacturer to ensure compatibility and quality.
