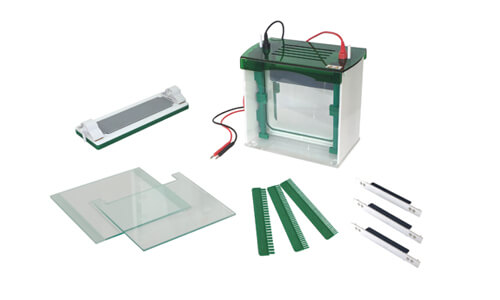

Understanding the Operating Principle and Scientific Basis of the YR03431 Rapid Vertical Electrophoresis Tank
The YR03431 Rapid Vertical Electrophoresis Tank is designed to enhance the efficiency and accuracy of gel electrophoresis. This article delves into the operating principles and scientific fundamentals behind this advanced laboratory equipment, focusing on its applications and unique features.
Operating Principle of the YR03431
The YR03431 operates based on the principle of electrophoresis, which utilizes an electric field to separate molecules based on size and charge. In the context of protein analysis, the separation process begins by denaturing proteins to linearize their structure, allowing for effective migration through the gel medium.
The configuration of the YR03431 supports vertical gel electrophoresis, which is more complex than horizontal systems but provides greater resolution and faster results for protein separation. This is achieved through a combination of design features such as the internal gel core and the efficient buffer system that maintains a stable pH throughout the process.
Scientific Fundamentals Behind Electrophoresis
The fundamental science of electrophoresis involves understanding the behavior of charged particles in an electric field. The movement of these particles is governed by the following equation:
v = μE
Where:
v = velocity of the particle
μ = mobility of the particle
E = electric field strength
The mobility of the particles is influenced by factors such as size and charge, making it crucial to select the appropriate gel concentration and buffer system for optimal performance.
Features of the YR03431
One of the standout features of the YR03431 is the quick installation of the glass plates, taking only 15 seconds without the need for a knob. This feature significantly reduces setup time, allowing users to focus more on their experiments.
- The gel-making device can remain in a normal position, eliminating the need to move the glass plate during the gel-making process.
- Its pre-fabricated gel core does not interfere with the equipment's performance, ensuring consistent results.
- The safety cover design includes a convenient button that allows for easy opening, enhancing user experience.
- The system's abundant buffer ensures effective cooling and stable pH, critical for protein electrophoresis.
- Automatic shut-off occurs when the lid is removed, prioritizing user safety.
Technical Specifications of the YR03431
| Model | YR03431 |
|---|---|
| Glass Plate Size (WxL) | 216x220mm |
| Gel Size (WxL) | 186x205mm |
| Gel Thickness | 1.0 (mm) |
| Gel Quantity | 1~2 (pieces) |
| Sample Volume | (1.0mm) 25, 40, 52wells |
| Buffer Volume | ~3 500ml |
| Dimensions | 280x140x250 |
| Net Weight | 5.6Kg |
Frequently Asked Questions
What are the key applications of the YR03431 in the laboratory?
The YR03431 is primarily used for protein separation in various laboratory applications, including clinical research, quality control, and educational purposes. Its vertical design allows for better resolution and faster results compared to traditional horizontal systems.
How can the YR03431 improve my electrophoresis results?
The YR03431 enhances results by providing a consistent electric field and stable pH through its unique buffer system. This consistency leads to more reliable separation of proteins and reduces the risk of error codes during experimentation.
What safety features does the YR03431 include?
Safety features of the YR03431 include automatic shut-off when the lid is removed, ensuring that users are protected during operation. The easy-to-open safety cover design also minimizes the risk of accidents when accessing the internal gel.
How do I prepare the gel for use in the YR03431?
Preparing the gel for the YR03431 involves combining the appropriate agarose or polyacrylamide with buffer solutions, pouring it into the glass plates, and allowing it to solidify. The system's design allows for easy transition from gel preparation to electrophoresis without moving the plates.
What is the expected lifespan of the YR03431?
The YR03431 is designed for durability and longevity in laboratory settings. Regular maintenance and proper usage can extend its operational lifespan significantly, typically beyond several years, depending on the frequency of use.
Can I use different buffer systems with the YR03431?
Yes, the YR03431 is compatible with various buffer systems. However, it is essential to select buffers that maintain a stable pH and promote effective protein separation for optimal results.
How can I request a quote for the YR03431?
To request a quote for the YR03431, please reach out through our dedicated service channels to receive a tailored proposal that meets your laboratory needs.
