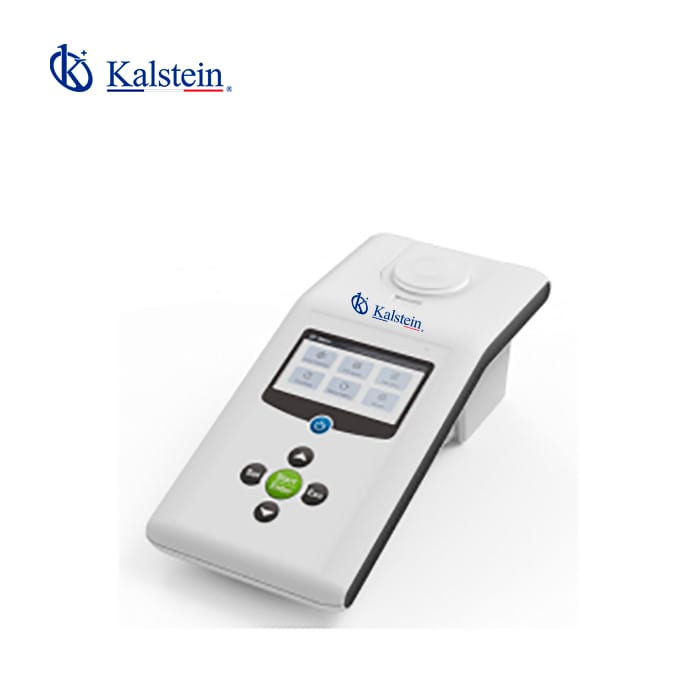

Understanding the Operating Principle and Scientific Basis of the YR06296 COD Analyzer
The YR06296 COD Analyzer is an innovative device designed to deliver precise measurements of Chemical Oxygen Demand (COD) across various samples. Understanding its operating principle and the scientific fundamentals behind its design is vital for users aiming to maximize efficiency and accuracy in their laboratory settings.
Technical Specifications of the YR06296
| Feature | Details |
|---|---|
| Model | YR06296 |
| Measurement Method | Fast digestion spectrophotometry |
| Measuring Range | 10-10000 mg/L |
| Accuracy | ≤5% |
| Resolution | 0.01 |
| Light Source | Imported Silicon Photodiode |
| Display | 3-inch color screen |
| Output | Micro USB |
| Power | Power adapter/Rechargeable lithium battery |
| Waterproof Level | IP54 |
| Ambient Temperature | (5-40) °C |
| Ambient Humidity | Relative humidity ≤ 85% (No condensation) |
Operating Principle of the YR06296 COD Analyzer
The YR06296 utilizes fast digestion spectrophotometry as its core measurement method. This principle relies on the chemical reaction of COD testing, where organic matter in water reacts with dichromate in an acidic medium. The extent of this reaction correlates with the amount of oxygen consumed, allowing for the quantification of COD levels.
This technique is preferred for its efficiency and accuracy, especially when compared to traditional COD measurement methods. The rapid digestion phase significantly accelerates the testing process, making it suitable for fieldwork where time constraints often exist.
Key Features and Benefits
The YR06296 is designed with several features that enhance its usability and accuracy:
- High Precision: With an accuracy of ≤5% and a resolution of 0.01, users can trust the results provided.
- Portability: Its compact design and rechargeable battery make it ideal for fieldwork, lasting up to 10 hours.
- Custom Curves: The integrated standard curve allows for the creation of personalized curves tailored to specific measurement requirements.
Calibrating the YR06296 for Optimal Performance
Calibration is crucial for ensuring the accuracy of the YR06296. The device allows for calibration at up to 7 points, which helps in adapting to various sample types and conditions. Regular calibration checks should be performed to maintain optimal accuracy.
To calibrate the YR06296:
- Access the calibration menu on the device.
- Select the calibration points based on the standard solutions available.
- Follow the prompts to input the readings from the standard solutions.
- Confirm the calibration and perform a validation check with a known sample.
Troubleshooting Common Issues with the YR06296
Users may encounter various issues while operating the YR06296. Here are some common problems and their solutions:
| Symptom | Possible Causes | Solutions |
|---|---|---|
| Device does not power on | Battery is depleted or faulty | Charge the battery or replace it. |
| Error code E-03 | Measurement out of range | Check sample concentration and dilute if necessary. |
| Inconsistent readings | Poor calibration or dirty cuvettes | Recalibrate and ensure cuvettes are clean. |
Environmental Conditions for Optimal Operation
The YR06296 operates best under specific environmental conditions:
- Temperature: Maintain an ambient temperature between 5-40 °C.
- Humidity: Ensure relative humidity does not exceed 85% without condensation.
- Power Supply: Use the recommended power adapter to avoid damage to the device.
Frequently Asked Questions
What method of measurement does the YR06296 use?
The YR06296 uses fast digestion spectrophotometry to measure COD levels in samples. This method allows for rapid and accurate assessments of organic matter in water.
How long does the rechargeable battery last on the YR06296?
The rechargeable battery of the YR06296 can last up to 10 hours, providing extended usability during field work.
How many test data sets can the YR06296 store?
The YR06296 can store up to 5000 data sets, making it suitable for extensive testing and analysis.
What is the waterproof level of the YR06296?
The YR06296 has an IP54 waterproof level, ensuring it can withstand adverse environmental conditions.
What is the significance of using a silicon photodiode in the YR06296?
The imported silicon photodiode used in the YR06296 provides a reliable light source, critical for accurate spectrophotometric measurements.
Can the YR06296 create custom calibration curves?
Yes, the YR06296 includes an integrated standard curve function that allows users to create custom calibration curves based on their specific requirements.
What maintenance is required for the YR06296?
Regular maintenance includes cleaning the cuvettes, performing calibration checks, and ensuring the device is kept in optimal environmental conditions.
