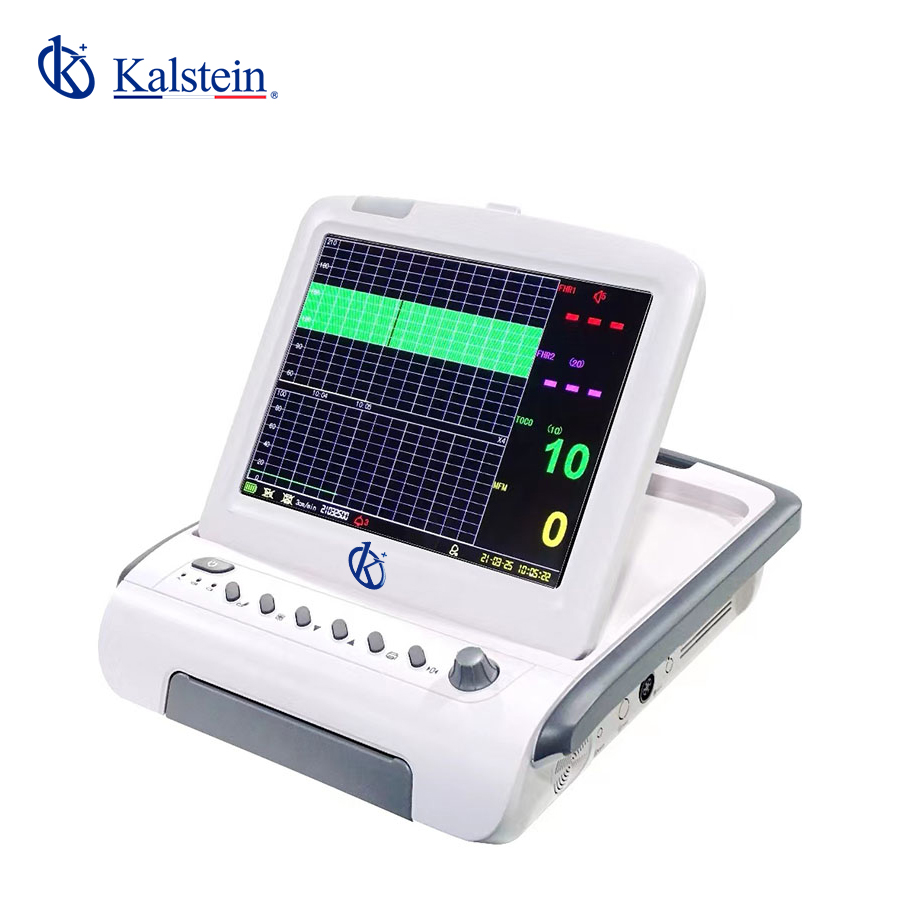

Understanding the Operating Principle and Scientific Foundation of the YR02190A Fetal Monitor
The YR02190A Fetal Monitor is a sophisticated medical device designed for monitoring fetal heart rate and other vital parameters during pregnancy. This article delves into the scientific principles that underpin its operation, providing a comprehensive understanding of its functionality, design choices, and applications in clinical settings.
Principles of Operation
The YR02190A utilizes ultrasound technology and electronic signal processing to monitor fetal heart rate (FHR) and other parameters. The core principle relies on the Doppler effect, where sound waves emitted by the device reflect off moving objects—in this case, the fetal heart. This reflection provides data that can be translated into a heart rate reading.
Key elements of its operation include:
- Doppler Ultrasound: The device emits sound waves that travel through the mother’s abdomen, bouncing back upon encountering the moving fetal heart. The frequency shift of these reflected waves provides the FHR.
- Signal Processing: A special digital signal processing (DSP) system within the monitor enhances the quality of the received signals, allowing for accurate readings even in challenging conditions.
Technical Data of the YR02190A
| Specification | Details |
|---|---|
| Model | YR02190A |
| Screen | 12.1-inch color TFT, tiltable 90 degrees |
| Resolution | 800 x 600 |
| Waveform Tracing | Up to 6 waveforms |
| Standard Configuration | SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM, Recorder |
| Optional Configuration | Fetal stimulator, FHR2, Cart |
Scientific Foundation: Understanding Fetal Heart Rate Monitoring
Understanding the fetal heart rate is crucial for monitoring the well-being of the fetus during pregnancy. The normal range for fetal heart rate is typically between 120 to 160 beats per minute (bpm). The YR02190A is designed to detect deviations from this range, which may indicate potential complications.
Factors influencing fetal heart rate include:
- Fetal Activity: Increased activity often correlates with higher heart rates.
- Maternal Position: The position of the mother can affect the ease of monitoring and the accuracy of readings.
Design Choices in the YR02190A
The design of the YR02190A is driven by practicality and clinical efficacy. Its user-friendly interface and tilting screen facilitate ease of use in various clinical settings. The device also incorporates a robust alarm system to alert healthcare providers of abnormal readings.
Key design features include:
- Ergonomic Design: Ensures comfort and usability for healthcare professionals during long monitoring sessions.
- Portability: The device's lightweight structure enables easy transportation between different locations in a healthcare facility.
Applications in Clinical Settings
The YR02190A is primarily used in obstetric and gynecological practices. It assists healthcare providers in monitoring the fetal status and maternal health during labor. Continuous monitoring of fetal heart rate can lead to timely interventions if any abnormalities are detected.
Some specific applications include:
- Routine Check-ups: Used during prenatal visits to ensure fetal health.
- Labor and Delivery: Provides continuous monitoring during the birthing process.
Frequently Asked Questions
What is the normal range for fetal heart rate when using the YR02190A?
The normal range for fetal heart rate is generally between 120 to 160 beats per minute. The YR02190A is equipped to monitor and notify healthcare providers of any deviations from this range.
How does the YR02190A ensure accuracy in fetal heart rate measurements?
The device utilizes advanced digital signal processing technology to enhance the quality of the signals received, thereby improving the accuracy of fetal heart rate measurements.
What are the key features of the YR02190A that enhance user experience?
Notable features include a tiltable 12.1-inch TFT display, the ability to trace up to 6 waveforms, and a user-friendly interface designed for efficient operation in clinical settings.
Can the YR02190A be used for monitoring multiple patients?
The YR02190A is designed for single-patient usage during monitoring sessions; however, it can be moved between patients as needed, thanks to its portable design.
What should be done if the YR02190A displays an error code?
In case of an error code, it is advisable to consult the troubleshooting section of the user manual, which details potential causes and corrective actions.
How often should the YR02190A be calibrated?
Calibration schedules can vary; however, regular checks are recommended to ensure the accuracy of the device. Refer to the manufacturer's guidelines for specific calibration intervals.
What optional accessories can enhance the functionality of the YR02190A?
Optional accessories include a fetal stimulator and additional monitoring modules, which can enhance the device's capabilities in specific clinical situations.
If you are interested in obtaining a quote for the YR02190A or any other equipment, please reach out for more information.
