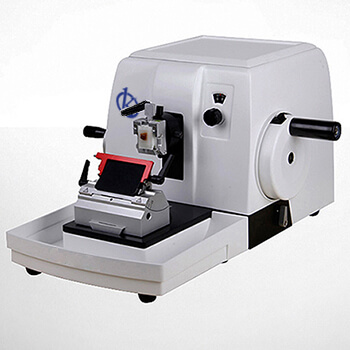

Understanding the Operating Principles and Scientific Fundamentals of the YR417 Microtome
The YR417 Microtome is a cutting-edge instrument designed to meet the diverse needs of histology and histopathology laboratories, as well as industrial quality assurance. This piece of equipment stands out due to its manual operation, high precision mechanics, and user-friendly design. In this article, we will explore the fundamental operating principles and scientific foundations behind the YR417, ensuring you grasp its significant role in laboratory environments.
Principle of Operation
The YR417 operates based on a simple yet highly effective principle—precision slicing of sample materials to create thin sections for microscopic examination. The mechanical design allows for fine adjustments to achieve desired thickness, typically ranging from 1 to 60 micrometers. This precision is critical in histology, where the thickness of the slices can significantly impact diagnostic results.
The functioning of the YR417 relies on a bladeholder mechanism that facilitates the movement of the blade across the sample. By employing a rotary mechanism, users can adjust the angle and pressure exerted on the sample, which directly influences the quality of the sections produced. The combination of these features ensures that the YR417 can deliver consistent results across extended usage periods.
High Precision Mechanics
One of the key features of the YR417 Microtome is its precision mechanics. The equipment incorporates a robust construction that minimizes vibrations, thus ensuring stability during operation. This precision is crucial when dealing with delicate biological samples, as any movement can lead to inconsistent section thickness or even damage to the sample being cut.
The adjustable cutting thickness is another aspect of its high precision design. The user can easily set the thickness using a dial, with clear indicators for each setting. This feature allows for reproducibility in slicing, which is vital for subsequent analysis and diagnosis in histological studies.
Variables Affecting Sample Cutting
Several variables come into play during the cutting process with the YR417. Factors such as sample hardness, blade sharpness, and environmental conditions can all affect the quality of the sections produced. For instance, harder samples may require a specific blade angle to achieve optimal slicing, while softer samples may need less pressure.
Additionally, humidity and temperature can influence the physical characteristics of the sample, which may necessitate adjustments in the cutting strategy. Understanding these variables and how they interact with the YR417's operation is essential for ensuring successful outcomes in laboratory settings.
Application in Histology and Pathology
The YR417 Microtome is designed specifically for histological applications, making it an invaluable tool in laboratories focused on tissue examination. In histology, samples must be cut to specific thicknesses to allow for clear visibility under a microscope. The manual operation of the YR417 provides flexibility that is sometimes lacking in fully automated systems.
Moreover, the YR417 is suitable for a variety of sample types, including paraffin-embedded and frozen tissues. Its adaptability enables histotechnicians to perform a wide range of tasks, from preparing routine biopsies to more complex histopathological studies. This versatility is a significant advantage in dynamic laboratory environments.
Technical Specifications of the YR417 Microtome
| Specification | Details |
|---|---|
| Model | YR417 |
| Cutting Thickness Range | 0-60 μm |
| Minimum Cutting Thickness | 1 μm |
| Maximum Sample Size | 70×70 mm |
| Cutting Thickness Options | 15 μm and 35 μm |
| Sample Retraction | 60 μm (optional) |
| Total Horizontal Sample Feed | 28 mm |
| Vertical Sample Stroke | 70 mm |
| Blade Holder Base Movement Range | 0-60 mm (forwards and backwards) |
| Blade Pressure Plate Movement Range | 0-23 mm |
| Specimen Rotation | Any angle within 360 degrees |
| Specimen Orientation | XY-8° |
| Precision Error | ±1% |
| Dimensions | 590×500×330 mm (Width×Depth×Height) |
| Net Weight | 37 kg |
Frequently Asked Questions
What are the main features of the YR417 Microtome?
The YR417 Microtome features a cutting thickness range of 0-60 μm, a maximum sample size capability of 70×70 mm, and allows for precise adjustments in cutting thickness. It also has a blade holder mechanism that promotes reliable and consistent sectioning of various sample types.
How does the manual operation of the YR417 compare to automated models?
Manual operation of the YR417 allows for greater flexibility and control over the slicing process, enabling operators to make real-time adjustments based on the sample’s characteristics. This contrasts with fully automated models, which may lack the adaptability needed for diverse tissue types.
What types of samples can be processed with the YR417?
The YR417 is suitable for a wide variety of samples, including paraffin-embedded and frozen tissues. Its versatile design allows it to effectively cut different materials required in histological studies.
What are some common troubleshooting steps for the YR417?
If you encounter issues such as uneven sections or difficulty in cutting, check the blade sharpness and ensure that the specimen is securely positioned. Additionally, verify the settings for cutting thickness and make any necessary adjustments.
What maintenance practices should be followed for the YR417 Microtome?
Regular cleaning of the blade holder and the cutting area is essential to maintain precision. Additionally, inspect the blades for wear and replace them as needed to ensure effective operation. It is advisable to follow the manufacturer's guidelines for scheduled maintenance checks.
Conclusion
