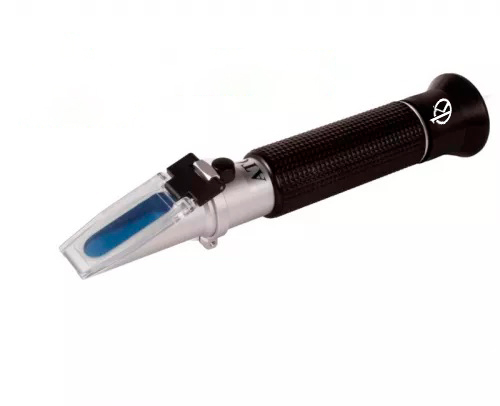

ATC Car Refractometers YR05916 // YR05930
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
ATC models are equipped with °C unit system. With the indication of the percentage we may know the freezing point of either ethylene glycol or propylene glycol-based cooling systems. And they can also be used to test the concentration of ethylene glycol or propylene glycol in antifreeze liquids. There’s also an additional scale for measuring the freezing point of windshield cleaning fluid. It’s FULLY EQUIPPED with ATC that automatically adjust itself to correct temperature discrepancies during use.
Features:
- High quality body construction
- Uses ambient light only which means battery or power source is not required
- Easy to focus and calibrate
- Cushioned with soft & comfortable non-slip rubber
- With ATC function (Auto Temperature Compensation)
- Durable and built to last long
Technical Specifications:
| Model | Description | Measurement Range | Min. Div. | Accuracy | ATC | ATC Temp. | Material |
| YR05916 | Car ATC E:-60°C–0°C P:-50°C-0°C B:1.100-1.400sg optical | B:1.000-1.400sg, E:-60℃-0℃, P:-50℃-0℃, | 0.01sg 5℃ 5℃ |
±0.01sg ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05917 | Car ATC E:-60°C–0°C P:-50°C-0°C B:1.100-1.400sg optical | B:1.000-1.400sg, E:-60℃-0℃, P:-50℃-0℃ | 0.01sg 5℃ 5℃ |
±0.01sg ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05918 | Car ATC E:-60°F-32°F P:-50°F-32°F B:1.15-1.30sg optical | B:1.15-1.30sg, E:-60°F-32°F, P:-50°F-32°F | 0.01sg 5℃ 5℃ |
±0.01sg ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05919 | Car ATC E:-60°F-32°F P:-50°F-32°F B:1.15-1.30sg optical | B:1.15-1.30sg, E:-60°F-32°F, P:-50°F-32°F | 0.01sg 5℃ 5℃ |
±0.01sg ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05920 | Car ATC E:-50°C-0°C P:-50°C-0°C B:1.15-1.30sg optical | B:1.15-1.30sg, E:-50℃-0℃, P:-50℃-0℃ | 0.01sg 5℃ 5℃ |
±0.01sg ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05921 | Car ATC E:-50°C-0°C P:-50°C-0°C B:1.15-1.30sg optical | B:1.15-1.30sg, E:-50℃-0℃, P:-50℃-0℃ | 0.01sg 5℃ 5℃ |
±0.01sg ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05922 | Car ATC E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C B:1.15-1.30sg | E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C B:1.15-1.30sg | 0.01sg 5℃ 5℃ 5℃ | ±0.01sg ±5℃ ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05923 | Car ATC E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C B:1.15-1.30sg | E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C B:1.15-1.30sg | 0.01sg 5℃ 5℃ 5℃ | ±0.01sg ±5℃ ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05924 | ATC B:1.100-1.400sg E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C | B:1.100-1.400sg E:-50℃-0℃ P:-50℃-0℃ C:-40℃-0℃ | 0.01sg 5℃ 5℃ 5℃ | ±0.01sg ±5℃ ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05925 | ATC B:1.100-1.400sg E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C | B:1.100-1.400sg E:-50℃-0℃ P:-50℃-0℃ C:-40℃-0℃ | 0.01sg 5℃ 5℃ 5℃ | ±0.01sg ±5℃ ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05926 | ATC E:-70°C-0°C(-90°F-32°F),P:-60°C-0°C(-70°F-32°F)B:1.100-1.400sg | E:-70°C-0°C (-90°F-32°F) P:-60°C-0°C (-70°F-32°F) B:1.100-1.400sg | 5°C (10°F) 5°C (10°F) 0.01sg | ±5°C (10°F) ±5°C (10°F) ±0.01sg | Yes | 0-30°C | Pure aluminium |
| YR05927 | ATC E:-70°C-0°C(-90°F-32°F),P:-60°C-0°C(-70°F-32°F)B:1.100-1.400sg | E:-70°C-0°C (-90°F-32°F) P:-60°C-0°C (-70°F-32°F) B:1.100-1.400sg | 5°C (10°F) 5°C (10°F) 0.01sg | ±5°C (10°F) ±5°C (10°F) ±0.01sg | Yes | 0-30°C | Pure aluminium |
| YR05928 | ATC Adblue: 30%–35%B:1.100- 1.400sg E:-50°C-0°C P:- 50°C-0°C C:-40°C-0°C optical refractometer |
Adblue: 30%–35%B:1.100-1.400sg E:-50℃-0℃ P:-50℃-0℃ C:-40℃-0℃ | 0.01sg 5℃ 5℃ 5℃ | ±0.01sg ±5℃ ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05929 | ATC Adblue: 30%–35%B:1.100- 1.400sg E:-50°C-0°C P:- 50°C-0°C C:-40°C-0°C optical refractometer |
Adblue: 30%–35%B:1.100-1.400sg E:-50℃-0℃ P:-50℃-0℃ C:-40℃-0℃ | 0.01sg 5℃ 5℃ 5℃ | ±0.01sg ±5℃ ±5℃ ±5℃ | Yes | 0-30°C | Pure aluminium |
| YR05930 | RHA-801 ATC 0-40% Urea Concentration AD Blue Optical | 0%-40% Urea Concentration | 0.2%Urea Concentration | ±0.2%Urea Concentration | Yes | 10-30° C | Pure aluminium |
Additional Information
| Weight | 0,310 kg |
|---|---|
| Dimensions | 21 × 8,5 × 5,5 cm |
| Modelo | YR05916, YR05917, YR05918, YR05919, YR05920, YR05921, YR05922, YR05923, YR05924, YR05925, YR05926, YR05927, YR05928, YR05929, YR05930 |
