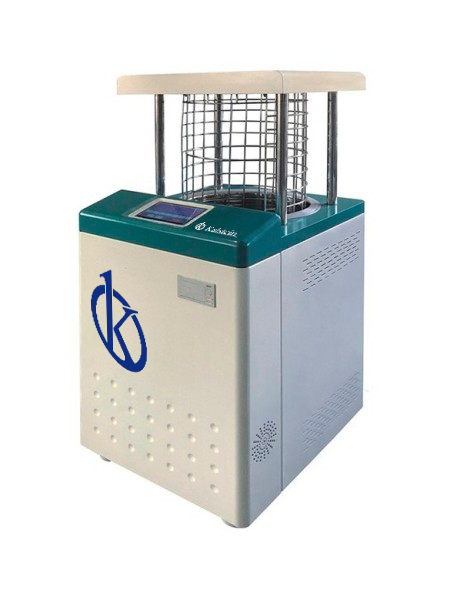

Automatic Lifting Door Pulsating Vacuum Autoclave YR05688 // YR05691

Manufacturer:ย Kalstein

Description

  • 7โ€ capacitive LCD color touch screen, fully automatic controlled, easy to operate on.
  • Lifting type door, which is more convenient to place and fetch the objects from the autoclave.
  • Dynamically showed the temperature, pressure, time, vacuum rate, drying, alarm, water level, and the full cycle.
  • The whole procedure from water inlet, pulse vacuum, heating, sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one-key operation.
  • Intellectualize vacuum drying system to guarantee the residual humidity of instrument less than 0.2% .
  • The vacuum rate can reach -0.081Mpa, it fits various instruments, including packed, unpacked, dressings, solid, A, B type hollow whether multi-apertures or inset pipes.
  • With 7 cycles: Instrument, Textile, Rubber, Liquid, User-defined, vacuum leakage test, BOWIE & DICK test.
  • Equipped with the PT/TT testing connector, easy to run the testing.
  • Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.2 um, which ensure the air is sterile, prevent the contamination.
  • Multiple pulse vacuum drying after sterilizing, ensure the nice sterilizing.
  • Adopted independent steam generator, with high heating efficiency.
  • Steam-water inner circulation system: No steam discharge and the environment for sterilizing will be clean and dry.
  • Automatically shut off with beep reminding after sterilization.
  • Internal material: Stainless steel 304, External material: Stainless steel 304 and electrostatic powder coated stainless steel.
  • Equipped with a printer.
  • Accessories: Drainage hoses, drain(exhaust) bucket, stainless steel baskets.
Safety Protection Device
  • Heater protection
  • Anti-dry heating
  • Safety interlock door: The program canโ€™t start up when the door is unlocked under normal condition. Door is locked and the door canโ€™t open when pressure in chamber.
  • Over-temperature protection: Adapt PT100 with accuracy class A for temperature control in chamber, collect temperature data in real-time, protect and alarm when temperature higher than default value.
  • Over-pressure protection: The relief valve starts to release pressure automatically when the pressure in chamber and steam generator exceed the default value.
  • Automatic release safety valve.
  • Over current protect.
  • Electric safety protective device: Fuse protects control units when short circuit or overload occurs.
  • Overheating protection device: High temperature deviation in chamber actuates protective device cuts off the heating source immediately.
  • Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked when vacuum pump running.
Technical Specifications
Model YR05688 YR05689 YR05690 YR05691
Max. Working pressure 0.23Mpa
Working pressure 0.22Mpa
Working temperature range 105 โ€“ 134โ„ƒ
Vacuum rate -0.081Mpa
Accuracy of temperature display 0.1โ„ƒ
Sterilization time 0 โ€“ 99 min
Drying time 0 โ€“ 99 min
Heat average โ‰คยฑ1โ„ƒ
Type ย Verticalย Pulsating Vacuum Autoclave
Class Class B
Control Microprocessor
Door ย Automatic lifting door
Display LCD color touch screen display
Drying system Vacuum drying
Steam generator Separate steam generator
Vacuum pump Yes
Sterilization program Liquid, Instrument, Textile, Rubber, User-defined, Vacuum leakage test, B & D test
Water tank Yes
Printer Yes
Sterilization box 2 PCS
Language ย English
Voltage 220V, 50Hz, single-phase
Chamber Size(mm) 60L / ร˜396ร—490 80L / ร˜396ร—650 100L / ร˜480ร—560 120L / ร˜480ร—660
Outer Size(mm) 686ร—556ร—913 686ร—556ร—1035 840ร—600ร—970 840ร—600ร—1060
Packing Size(mm) 786ร—656ร—1013 786ร—656ร—1135 940ร—610ร—1000 940ร—610ร—1075
G.W. / N.W. 210/180 kg 230/200ย kg 300/270ย kg 325/ 295 kg
Power 5.4 KW 5.4 KW 6.0 KW 6.0 KW

Additional information

Weight N/A
Dimensions N/A
Model

YR05688, YR05689, YR05690, YR05691
