Description

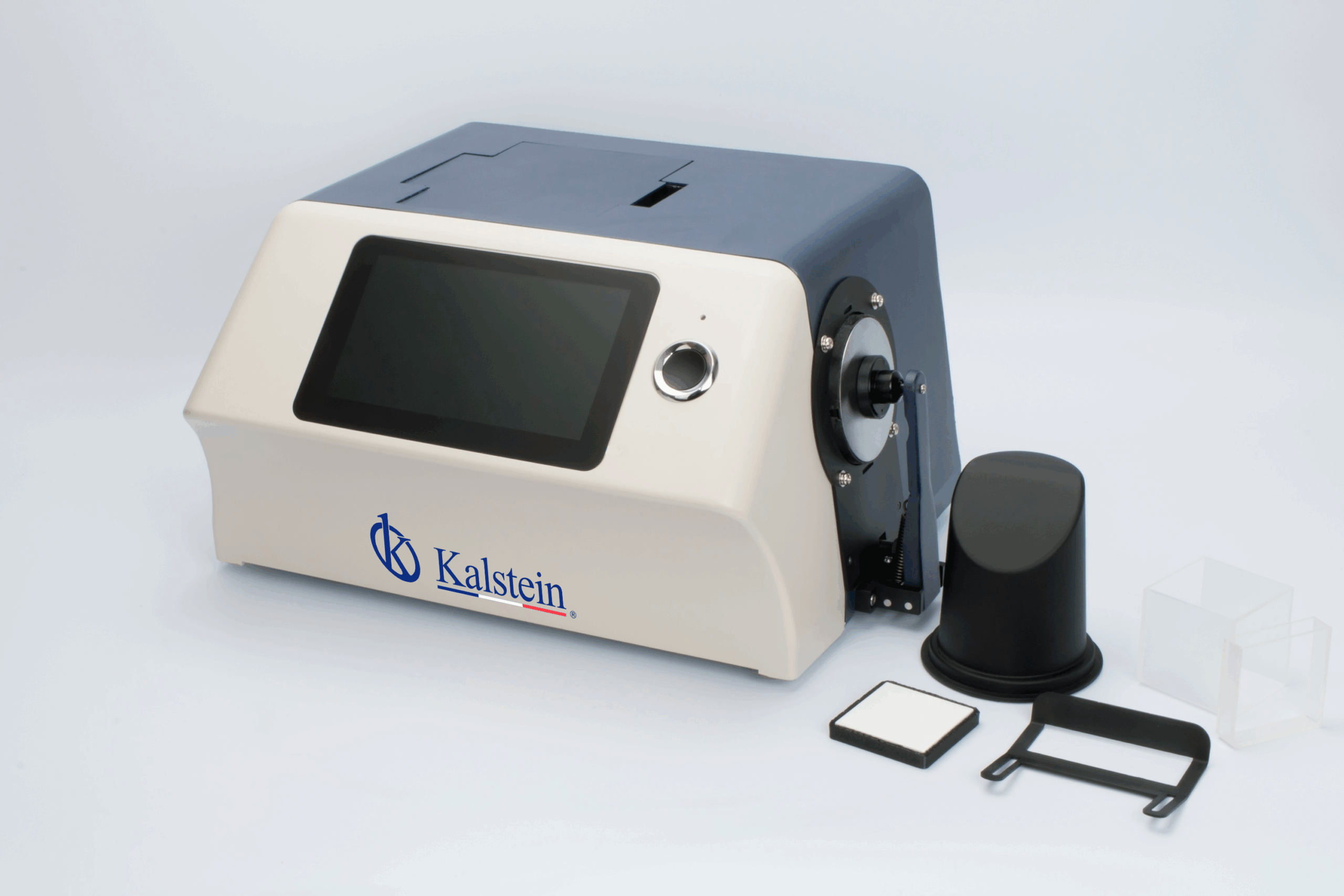

The YR05478 desktop spectrophotometer is a high-precision tool designed to measure color differences and indices across various color spaces, applicable to both reflective and transparent samples. With advanced optical geometry and automatic aperture identification capabilities, this device allows for the selection between three aperture sizes: Φ25.4 mm, 8 mm, and 4 mm, making it ideal for a wide variety of samples. Thanks to its dual-array 256-element CMOS sensor and long-life xenon lamp, the YR05478 ensures stability and consistency in each measurement. Additionally, its 7-inch TFT touch screen and large data storage capacity of up to 20,000 records make this spectrophotometer easy to use and perfect for industries such as paint, ink, textile, and plastics.
Market Price
The YR05478 spectrophotometer is priced between $9,280 and $9,300 USD, standing out as a key investment for companies seeking precision and reliability in quality control and color transfer. Its advanced technology and flexible measurement configuration give it a competitive edge over other products on the market. To obtain a quote tailored to the specific needs of your industry, you can access the Kalstein Plus platform and request a personalized budget quickly and without obligation.
Frequently Asked Questions
- Is the YR05478 suitable for fluorescent samples?
Yes, this spectrophotometer can accurately measure fluorescent samples, making it versatile for various industrial applications. - What is the data storage capacity?
This model can store up to 20,000 results, providing an extensive record of measurements for thorough control. - Does the equipment measure gloss?
Yes, the YR05478 measures gloss at 8°, as well as other relevant indices such as opacity and haze, ideal for quality control applications.
Advantages and Disadvantages
Among its many advantages, the YR05478 has a temperature compensation system that ensures accuracy in variable environments and offers a wide range of color and light options, adapting to different testing needs. As a downside, it may require regular maintenance and periodic calibrations to maintain its accuracy in high-use environments.
Field Use
This spectrophotometer is ideal for laboratories and production lines in industries such as textiles, plastics, printing, and cosmetics, where color transfer precision and quality control are essential. Its design allows it to easily adapt to different working conditions, ensuring stable results in each test and optimizing the quality verification process.
Recommendations
To maximize the performance of the YR05478, periodic calibrations and a controlled environment are recommended. Leveraging the automatic aperture selection function according to sample type will enhance measurement accuracy. Request your personalized quote now through Kalstein Plus and discover how the YR05478 desktop spectrophotometer can revolutionize your quality control and color transfer processes in every application.
Technical Specifications
| Model | YR05478 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ;
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) SCI (specular component included)/SCE (specular component excluded) Haze(ASTM D1003), Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
| Application | It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 360 nm to 780 nm, Combined LED Light (5 million life span) |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; |
| Transmissive : Φ30mm/Φ25mm; | |
| Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | |
| Specular Component | Reflectance: SCI&SCE / Transmittance: SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI (ASTM D1925, ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness,Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%) |
| Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%) | |
| Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=370x300x200mm |
| Weight | Approx. 9.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Print serial port |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber |
| Optional Accessory | Micro-printer, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components |
| Notes: The specifications are subject to change without notice. YS6003 quality management software can only be used for data management | |
