Description

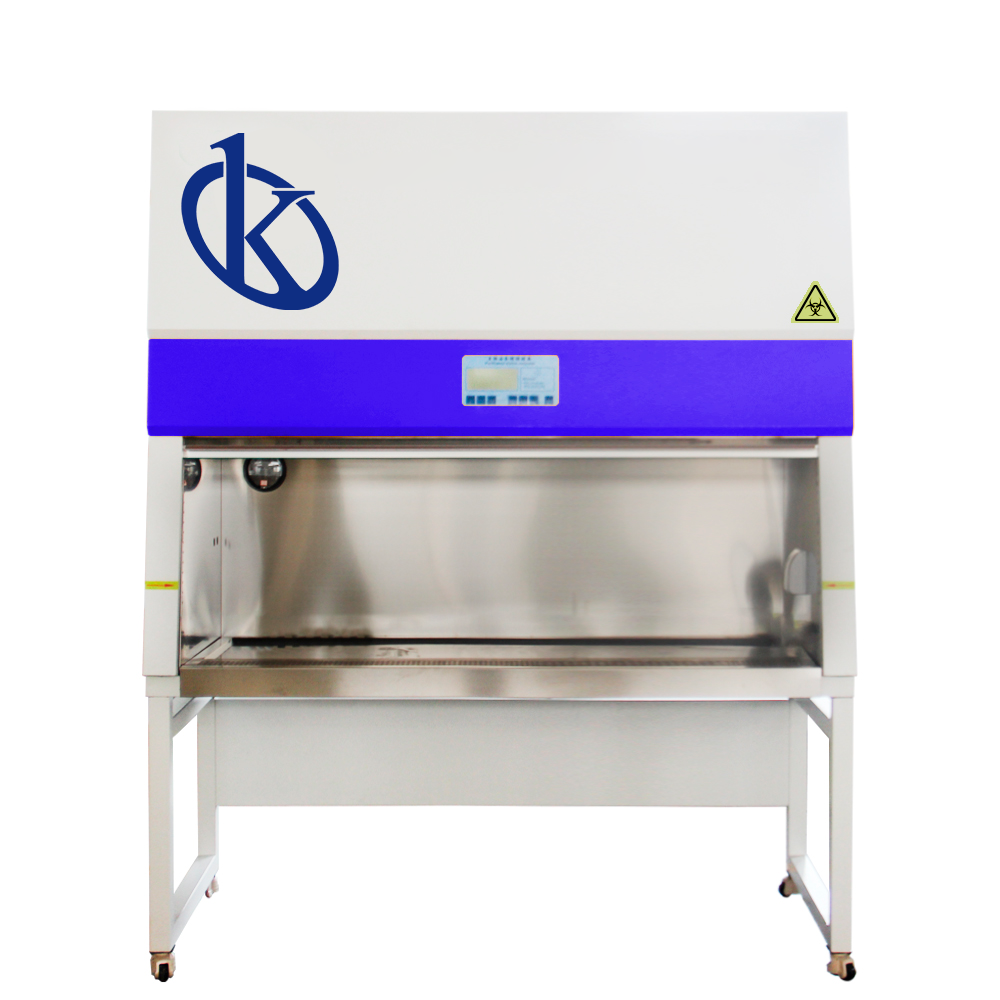

YR053708 // YR05710 biological safety cabinet Class II biological safety cabinet/biological safety cabinet is necessary in animalcule lab, especially in the condition needing protection measure, such as medicine, pharmacy, scientific research and so on.
Product Features
- Air curtain isolation design prevents internal and external cross-contamination, 100% air flow is discharged outside, negative pressure vertical laminar flow, no need to install pipes
- The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.
- The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator
- A special filter is installed at the exhaust air to control emission pollution
- The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent corrosion by corrosive agents and disinfectants
- It adopts LED LCD panel control and built-in UV lamp protection device, which can only be opened when the safety door is closed
- With DOP detection port, built-in differential pressure gauge.
- 10° tilt angle, in line with the human body design concept
Technical Specifications
Model | YR05708 | YR05709 | YR05710 | |
Cleanliness | Class 100@≥0.5μm (US Federal 209E) | |||
Number of colonies | ≤0.5pcs/dish·hour (Φ90mm culture plate) | |||
average wind speed | Inside the door | 0.38±0.025m/s | ||
middle | 0.26±0.025m/s | |||
Inside | 0.27±0.025m/s | |||
Front suction wind speed | 0.55m±0.025m/s | |||
noise | ≤65dB(A) | |||
Voltage | AC single-phase 220V/50Hz | |||
Maximum power consumption | 500W | 600W | 700W | |
Weight | 210KG | 250KG | 270KG | |
Working area W1×D1×H1 | 1040×650×620 | 1340×650×620 | 1640×650×620 | |
Overall dimension W×D×H | 1200×800×2270 | 1500×800×2270 | 1800×800×2270 | |
High efficiency filter specification and quantity | 980×490×50×1 | 1280×490×50×1 | 1580×490×50×1 | |
520×380×70×1 | 820×380×70×1 | 1120×380×70×1 | ||
Specification and quantity of fluorescent lamp/ultraviolet lamp | 20W×2/20W×1 | 30W×2/30W×1 | 30W×2/30W×1 |
