Description

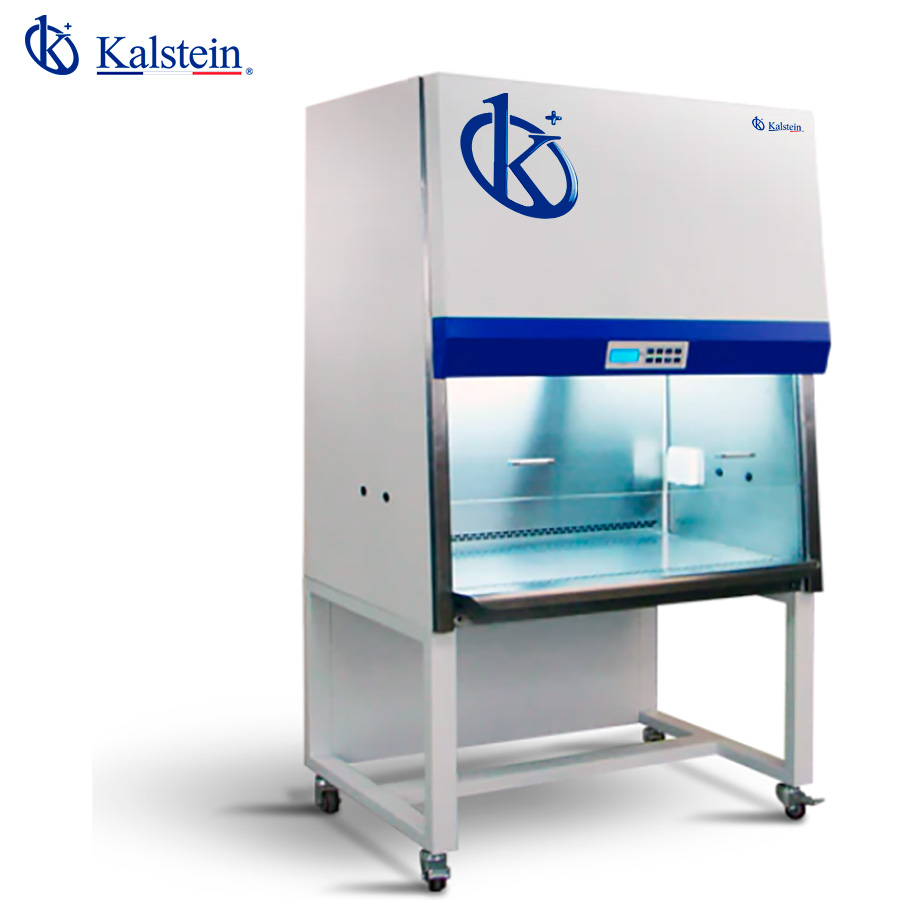

- Increase safety and efficiency in the laboratory with our A2 Biological Safety Cabinet
- Advanced filtration and airflow systems
Technical Specification
| Model | YR06204 | |||
| Clean rating | International standard ISO14644.1 CLASS 5(US209E,CLASS 100) | |||
| Inflow velocity | 0.53m/s | |||
| Down flow velocity | 0.35m/s | |||
| Down flow velocity precision | ±0.015m/s | |||
| Noise level(dB) | ≤65 | |||
| Vibration | ≤3μm(X、Y、Z direction) | |||
| HEPA | efficiency 99.995% | |||
| Light intensity(LX) | ≥650 | |||
| Pressure difference range (Pa) | 0~500 | |||
| Operate environment | environment temp.10-30℃,relative humidity under 70%, no obvious vibration and dust | |||
| External dimensions(H*W*D) (mm) | 2060×1340×740 | |||
| Dimension of working zone(H*W*D) (mm) | 670×1270×560 | |||
| Power supply | Single-phase voltage source AC220V/50HZ | |||
| Power(W) | 350 | |||
