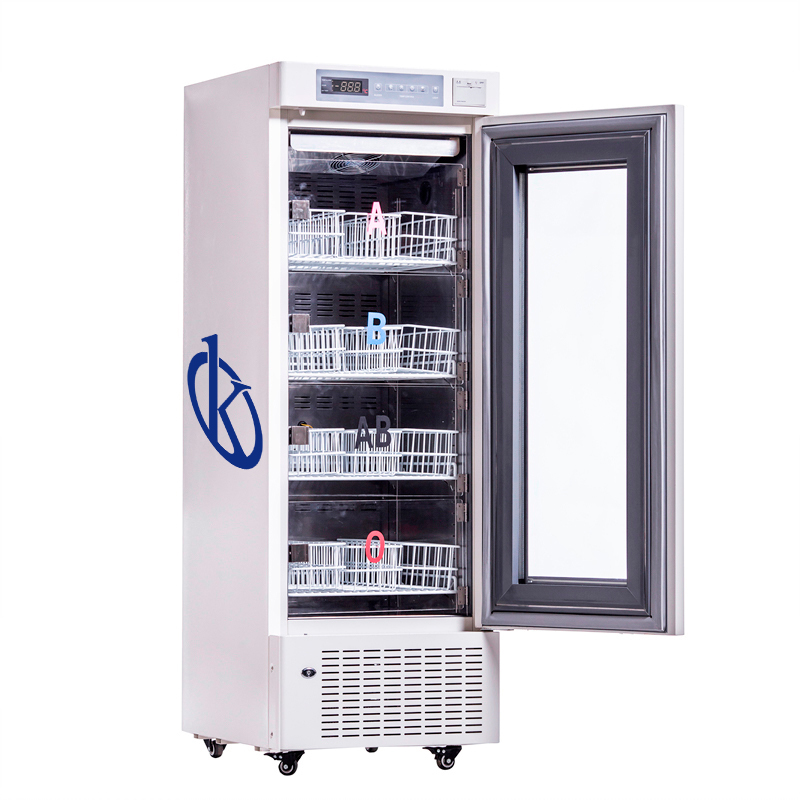

Blood Bank Refrigerator YR05092

Manufacturer: Kalstein


Blood Bank Refrigerator 4โ„ƒยฑ1โ„ƒ For Blood Storage Which Can store 132 Unit 450ml Blood Bags and has temperature alarm system

Reliability and Key Features
  • Microprocessor controlled forced-air cooling with electrical heat compensation system.
  • Digital temperature display for upper and lower sections in chamber with 0.1ยบC resolution.
  • Consistent cabinet temperature 3-5ยบC
  • High-tech integrated sensors to display and control temperature.
  • Auto-defrost to remove moisture on cooling surface.
  • Large digital display for ease of observation
  • Build-in backup battery to display temperature and to operate audible an visual alarm systems for up to 72 hours without ac power.
  • Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light
  • Five alarm conditions : High/low temperature, power failure, voltage abnormal, door ajar, backup battery
  • Standard with laser printer
  • Standard with acrylic inner small door, for less affection on other room when one door open
Ergonomic Design
  • Safety lock to prevent unauthorized access.
  • Storage space designed for easy sorting of a variety of blood products.
  • Caster design and interior light.
Temperature Range 4ยฐCยฑ1ยฐC
Ambient Temperature 10~32ยฐC
Controller Microprocessor
Display Digital Display
Electrical Data
Power Supply(V/Hz) 220/50~60; 115/60
Rated Power(W) 200
Electrical Current(A) 0.8
Power Consumption 2.22 kWh/24h
Capacity 208L
Interior Size(W*D*H) 432*462*978mm
Exterior Size(W*D*H) 522*600*1550mm
Package Size(W*D*H) 572*685*1570mm
N.t./G.t.(approx) 96/120kg
Loading Qty(20’/40’/40’H) 27/60/60
Blood bags(450ml) 132
Refrigeration System
Compressor 1
Refrigerant R134a
Cooling Type Forced-air cooling
Defrost Type Frost free
High/Low Temperature Y
Sensor Error Y
Power Failure Y
Door ajar Y
Caster 4
Lamp LED
Shelf 3
Test hole 1
Temperature printer 1
Temperature recorder Optional
USB Optional

Additional information

Weight 120 kg
Dimensions 58 × 69 × 170 cm
