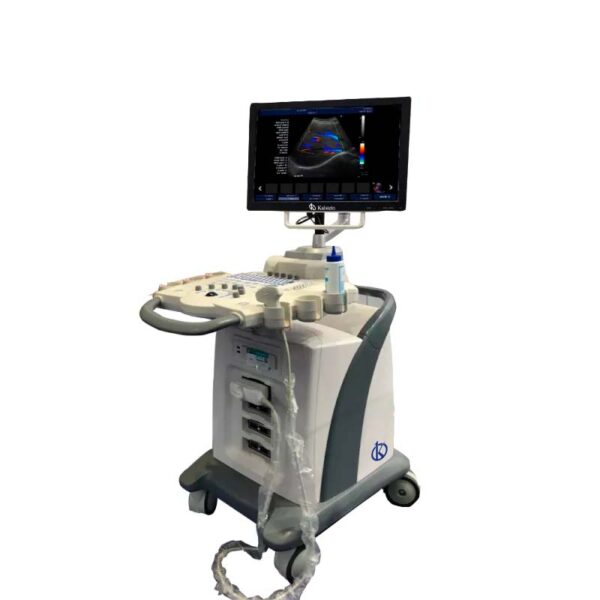

Description
- 15′ LED screen with multilingual function
- Model CF+B simultaneously, PDI, DPDI, TDI, TSI, supports trapezoidal imaging, virtual convex matrix, and convex matrix expansion.
- Anatomy M, Color mode M
- pressure index
- Complex model image
- Automatic IMT measurement, automatic endometrial measurement, automatic quality assessment
- Duplex and triplex PW can be switched freely
- Automatic PW Tracking Measurements
- Multiple Birth Measurements
- Built-in DICIM 3.0 protocol, can print and send via DICOM 3.0
- Integrated workstations, databases, image reports, fetal development curves, scoring standards, etc. can be inserted.
- Online attention function, instruct the user how to operate in the next step.
- The printed area is adjustable, which can be images, reports, or images + reports, etc.
- User rights control, password can be set.
Technical description
| Model | YR05149 | |||
| Connectivity/Media/Peripherals | ||||
| Transducer Ports | 4 | |||
| USB ports | 4 | |||
| HDD | 64GB (SSD), 120G/200GB SSD (optional) | |||
| foot switch | USB | |||
| Ethernet port | 2(100Mb/1000Mb) | |||
| External screen | VGA,HDMI, | |||
| Printer (Optional) | USB Printer, Digital Laser Printer, B/W Digital Thermal Printer | |||
| Printing area | Image, report, Image+report | |||
| Cine/Picture Memory | ||||
| Memory Cinema | 1200 frames (max) | |||
| Film Review Speed | 1, 2, 4, 8 | |||
| Cinema Review Loop | YES | |||
| Capture function | YES | |||
| DICOM connectivity | DICOM3.0 Compliant | |||
| 3Dsoftware | Built-in 3D software | |||
| Image Storage | Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI Export Image Format: PNG, JPEG, BMP, DICOM USB Flash Drive |
|||
| Technology | ||||
| Panoramic Imaging Technology
Full Digital Signal Processing Technology Multi-Beamforming Technology Spot Reduction Technology Tissue Harmonic Imaging Technology Dynamic Tissue Optimization Technology Duplex and Triplex Synchronous Display Directional Power Doppler Imaging Parameters Imaging Parameters special tissue presets PW Auto Trace Update online CF+B mode on one screen Complex model imaging Automatic IMT measurements Virtual Convex Array Trapezoidal imaging |
||||
| Overall Performance | ||||
| Digital Broadband | 12288 channels | |||
| Beam Former | reprogrammable | |||
| Transmission voltage | Adjustable (15 steps) | |||
| Beamformer Frequency Range | 1~40MHz | |||
| Led monitor | ||||
| Size (diagonal) | fifteen” | |||
| Contrast Ratio | 800: 01: 00 | |||
| Resolution | 1024×768 pixels | |||
| Brightness | 230 cd / m2 | |||
| Color Depth | 24 bit | |||
| Rotation Angle | ±90° | |||
| Gray levels | 256 | |||
| Imaging performance | ||||
| Start Time (max.) | Average < 90 seconds | |||
| Preset Switching Time | Average < 1 second | |||
| Storage Time (Image to disk) | Average < 0.5 seconds | |||
| transducers | ||||
| Research | Convex array probe | Linear Array Probe | intracavitary probe | microconvex probe |
| Frequency | Center 3.5MHz | Central 7.5MHz | Center 6.5MHz | Center 4.0MHz |
| (2.0MHz to 10.0MHz) | (6.0MHz to 10.0MHz) | (5.0MHz to 9.0MHz) | (2.0MHz to 5.5MHz) | |
| field of play | 0.516mm | 0.352mm | 0.216mm | |
| Radio | 60mm | N/A | 10mm | |
