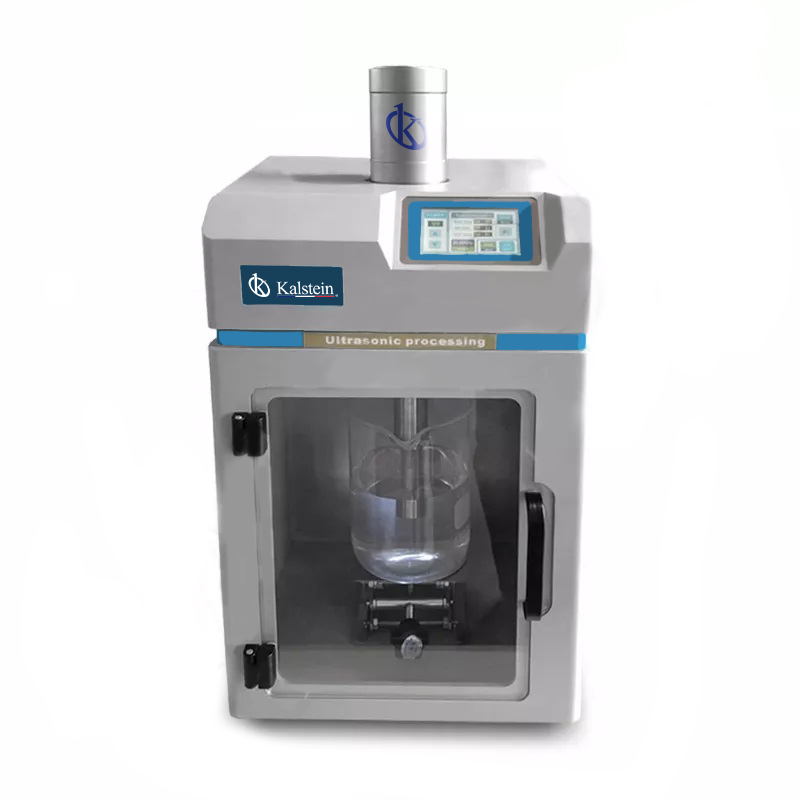

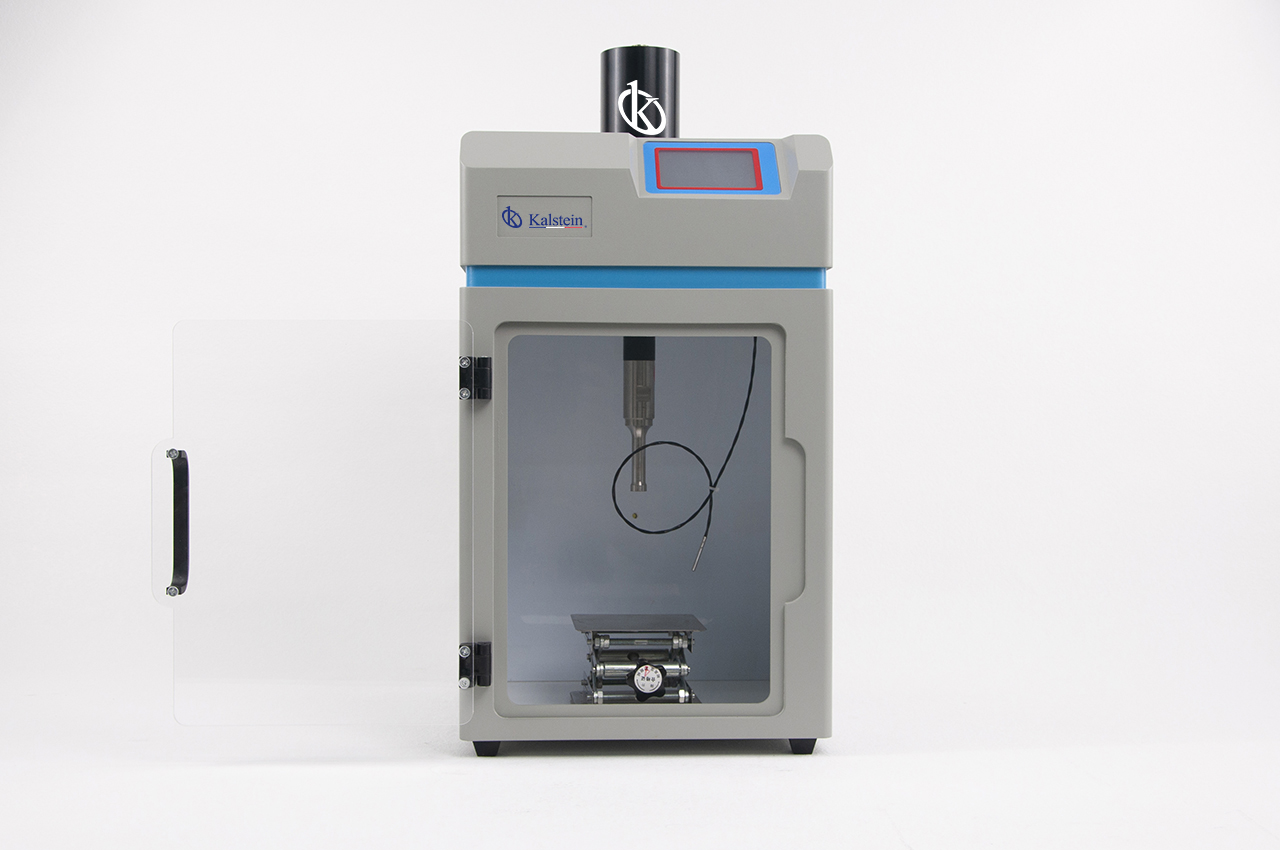

Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839

Manufacturer: Kalstein

Description

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 is a state-of-the-art laboratory device designed for precision and efficiency in processing solid-liquid samples. It excels in applications such as cell lysis, emulsification, nanoparticle dispersion, and chemical reaction acceleration. Equipped with an advanced digital interface and fully automated controls, it allows users to finely tune the ultrasonic power from 0 to 100% to suit specific sample needs. The 3.2-inch LCD touch screen enhances user interaction by providing an intuitive interface and the capacity to store up to eight data sets, facilitating seamless operation and thorough monitoring.

Market Price

The Intelligent Digital Sonicator YR05837 // YR05839 is positioned competitively in the market with a price range of approximately $3,500 to $4,700 USD, depending on additional configurations like optional probes, water cooling systems, and advanced software packages. This pricing reflects the sophisticated technology and high performance offered compared to other ultrasonic homogenizers.

Frequently Asked Questions

  • What types of samples can this device process?

The YR05837 // YR05839 is versatile enough to handle a wide array of samples, including animal and plant cells, nanoparticles, emulsions, and soil samples.

  • Is it safe for sensitive samples?

Yes, the device features precise power and temperature control, ensuring sensitive samples are protected from thermal and mechanical damage.

Advantages and Disadvantages

Key advantages of the YR05837 // YR05839 include its versatility, high precision, and robust safety functions. It supports both continuous and pulse operation modes, maintaining consistent performance through automatic frequency compensation. A potential disadvantage is its size, which might be a constraint for laboratories with limited space. However, the soundproof box significantly reduces operational noise.

Field Use

The YR05837 // YR05839 is extensively used in fields such as biotechnology, materials chemistry, and medicine. In molecular biology, it facilitates DNA and protein extraction, while in chemistry, it is indispensable for dispersing carbon nanotubes and other advanced compounds. Its processing capacity, ranging from 50 ml to 3000 ml, makes it a critical tool for research and industrial laboratories.

Recommendations

To maintain optimal performance and prolong the device’s lifespan, regular maintenance is recommended. This includes cleaning the probes and checking the cooling system. For those interested in purchasing or learning more about this product, we encourage visiting our Kalstein Plus platform to request a quote or generate one automatically. Enhance your experimental processes with premier ultrasonic technology.

Features

  • Advanced digital interface
  • Fully automated control system
  • 3.2-inch LCD touch screen
  • Capacity to store up to 8 data sets
  • Automatic frequency compensation

Technical Specifications

Model No. YR05837 YR05837-1
Working Frequency 19~25KHz Automatic compensation
Ultrasonic Power 950W 650W
Processing Capacity 100~1200ml 50~800ml
Power adjustable 0~100%
Timer LCD Touch screen, adjustable from 1s to 99h
Pulser Digital, closed loop, open loop, 1s to 99min to choose and set
Ultrasonic mode Pulse mode / Continuous mode
Standard Probe Φ13mm Φ6mm
Optional Probe Φ3/6/8/10/16/18mm
Φ3/6/8/13/16mm
Energy Converter CV33, PZT lead zirconate titanate piezoelectric ceramics
Probe Material Titanium Alloy TI-6AL-4V
Cabinet lighting yes
Lifting table yes
Machine size 245*365*245mm
Sound Proof box size 240*250*390mm
Power Supply AC220/50Hz,110V/60Hz
Optional Configuration Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack

Additional information

Weight 9,9 kg
Dimensions 48 × 33 × 53 cm
Modelo

YR05837, YR05837-1, YR05838, YR05839
