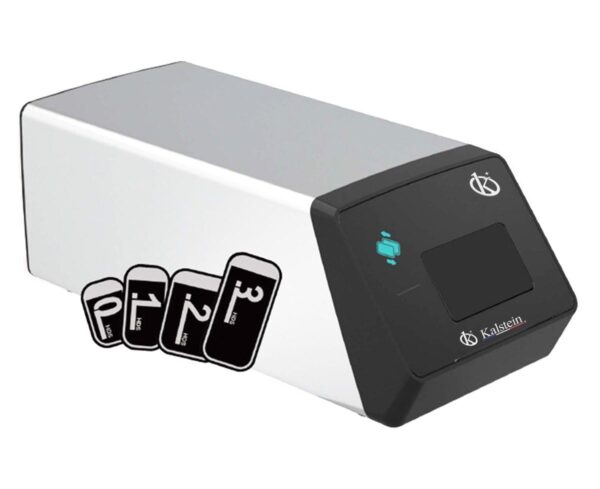

Digital Veterinary Intraoral CR X-Ray Imaging System YR06197

ManufacturerKalstein

Description

Convenient mobile diagnosis and treatment

Highly integrated design, compact size with stronger functions

4 sizes (0/1/2/3) imaging plates available

1.5kg lightweight

Mini-size and portable

5s faster imaging

Technical Specifications
Model YR06197
Tube voltage 60KV
Exposure time 0.1~2s
Tube focus 0.3mm ×0.3mm
Battery DC14.8V 6400mAh
Charger input voltage AC100V-240V:10%
Ambient temperature 5-40℃
Net weight 2.5kg
Package size 330 ×310×230 ( mm )
Tube current 1.5mA
Frequency 30KHz
The distance from skin to cone 130mm
Rated power 60VA
Output voltage DC16.8V
Relative humidity <75>
Gross weight 4.8kg

Additional information

Weight 6 kg
Dimensions 40 × 36 × 30 cm
