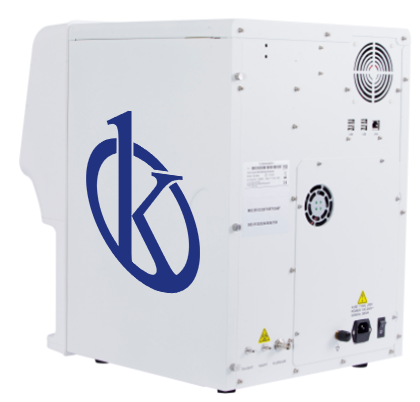

Hematology Analyzer YR05122-1
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
- WBC 5-part differentiation, 29 parameters, 3D scattergram and 3 Histograms
- Tri-angle laser scatter and Flow cytometry technology
- Whole blood mode, Prediluted mode and Capillary whole blood mode
- 3 reagents for testing, close system by RF card
- 14 inch, high resolution (1366*768) touch screen
- 60 samples per hour
- Low volume sample consumption CBC+DIFF mode: ≤20ul, CBC mode: ≤10ul
- Up to 100,000 samples storage
- 1 LAN port, 4 USB ports; Support Bi-direction LIS
- Support most of the external printer and various printout formats available
- Original Control and Calibrator
- Low running cost
- Easy to operate
Technical Specifications
| Model | YR05122-1 |
| Methodology | Tri-angle lase scatter + flow cytometry + impedance method for WBC;
Impedance method for RBC and PLT |
| Test Mode | CBC Mode,CBC+DIFF mode. Venous whole blood, capillary whole blood and prediluted |
| Sample Volume | CBC+DIFF mode: ≤10 ul |
| Throughput | More than 60 Samples per hour, operatable 24 hours a day, auto sleeping and waking-ip functions |
| Storage | Up to 100,000 results (including histogram, scarttergram, patient information) |
| Operation Langue | English and more is coming |
| QC Control | X-B, L-J, X, SD, CV% |
| Interface | 1 LAN Port, 4 USB Ports |
| Communication | Bi-Direction LIS, Support HL7 protocol Internal RFID Reader |
| Print Out | Support Various external USB Printers, printout formats user definable |
| Working Invorement | Temperature: 10°C – 30°C, humidity: 20-85% |
| Power Supply | 100 – 240 V, 50/601Hz |
| Dimension | 48 cm (L) x 38 cm (W) x 52 cm (H) |
| Weight | Temperature: 10°C – 30°C, humidity: 20-85% |
Additional Information
| Weight | 53 kg |
|---|---|
| Dimensions | 67 × 59 × 79 cm |
