High cost-effective Portable Colorimeter YR05515
High cost-effective Portable Colorimeter YR05515 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The High cost-effective Portable Colorimeter YR05515 is designed to meet the diverse needs of industries such as plastic, electronics, paint, ink, textile, and many others. This advanced yet affordable colorimeter offers high precision with dual aperture options to accommodate various sample types. With CIE LAB color space capabilities, it excels in color difference checks and ensures accuracy with its built-in white plate parameters that eliminate the need for constant recalibration. Compact and convenient, this handheld device comes with a rechargeable lithium-ion battery, making it perfect for quick, on-the-go measurements. Its elegant design merges tradition with modern aesthetics, promising not just functionality but style.
Market Price
The colorimeter market is highly competitive, with prices typically ranging from $300 to $1,100, depending on the precision and features offered. The YR05515 is a highly cost-effective choice within this range, offering premium capabilities without the premium price tag. For a detailed quote, consider exploring the Kalstein Plus platform where you can easily request or generate a quote online.
Frequently Asked Questions
How often do I need to calibrate the YR05515?
No need for frequent calibration as it has built-in white plate parameters for fast and efficient use.
Can the device measure concave samples?
Yes, its double aperture design allows it to measure concave samples on large planes effectively.
How portable is this colorimeter?
With a weight of just 400g and a compact build, the YR05515 is incredibly portable and convenient for fieldwork.
Pros and Cons
Advantages:
- Quick and easy measurements without frequent calibration.
- Rechargeable battery for cost savings and convenience.
- Dual apertures for versatile sample measurement.
- Compact and ergonomic design.
Disadvantages:
- May require familiarization for users new to colorimetry tools.
- Limited to the specified operating temperature range.
Field Use
The YR05515 is widely used for checking color differences in various fields. Whether applied in a lab setting or on manufacturing floors, its quick measurement capabilities ensure that production quality standards are maintained. Its TFT screen provides accurate readings that are crucial for compliance and quality assurance in commercial manufacturing.
Recommendations
To ensure optimal usage, regularly update the device software and handle it with care to prevent damage. Store the colorimeter in recommended conditions to maintain its performance and longevity. Leverage Kalstein Plus to stay informed about product updates and maintenance tips.
Features

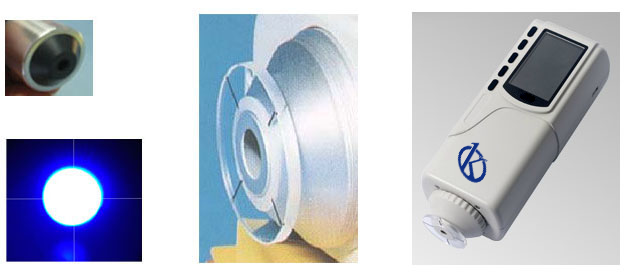

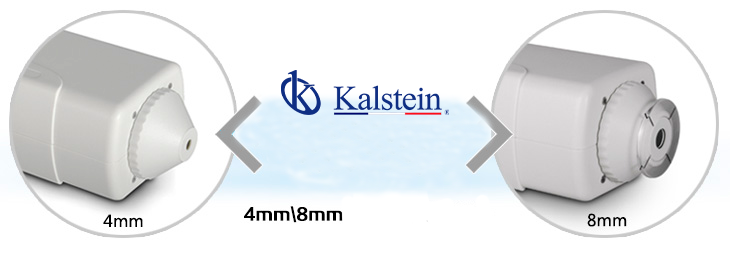

- Offers dual apertures: Φ8mm flat and Φ4mm tip.
- Equipped with a high-capacity rechargeable Li-ion battery.
- Measures in 1.5 seconds with high repeatability.
- Comprehensive color space and observer settings.
Technical Specifications
| Model | YR05515 |
| Illuminating / Viewing Geometry | D/8° |
| Standard | CIE No.15, GB/T 3978 |
| Sensor | silicon photodiode |
| Measuring Aperture | 4mm |
| Color Space | CIE LAB, Lch |
| Observer | CIE 10° |
| Illuminant | D65 |
| Display Data | Colorimetric Value, Color Difference Value Storage |
| Measurement Time | 1.5 s |
| Repeatability | ΔE*ab ≤ 0.03 (Average of 30 measurements of standard white plate) |
| Dimension | 205*67*80mm |
| Errors between each instrument | ΔE*ab 0.4 |
| Weight | 400g |
| Battery | rechargeable lithium-ion battery 3. 7V@ 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Screen | TFT 2.8 inch(16: 9) |

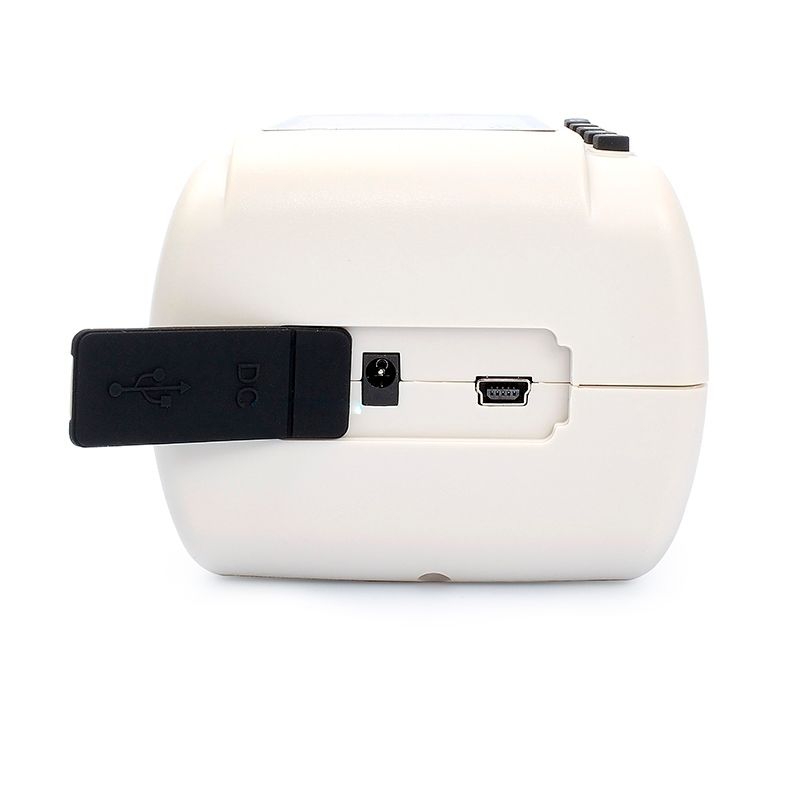

| Interface | USB |
| Storage | 100 Standards, 10000 Samples |
| Operating Temperature | 0-40°C(32-104°F) |
| Storage Temperature | -20-S0°C(-4-122°F) |
| Optional Accessory | miniature thermal printer, powder test box |
Technical specifications
| Dimensions | L 33 × W 12 × H 15 cm |
|---|---|
| Weight | 1 kg |
| Manufacturer | Kalstein |
