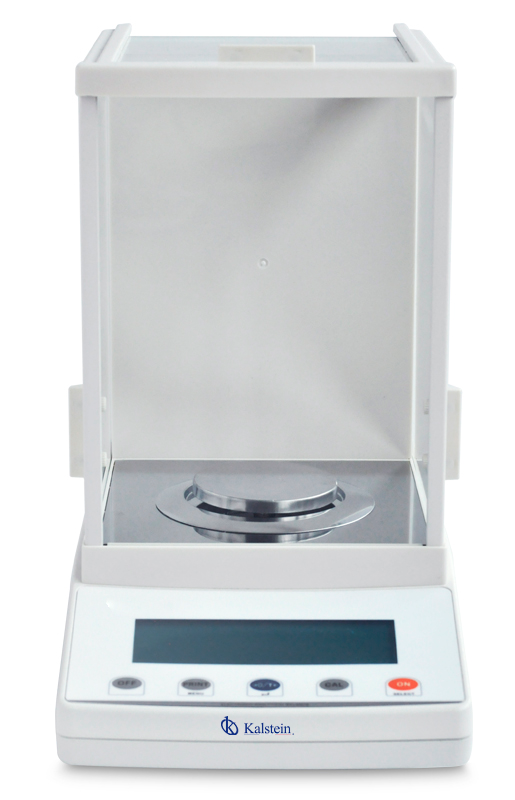

Internal Calibration Analytical Balance YR05580 // YR05583

Manufacturer: Kalstein

Product Description

External Function:
  • Electromagnetic sensor
  • Aluminum shell Large space wind proof cover
  • LCD(White back light with black font)
  • Tare function/Counting/Unit conversion(g/mg/ct/oz)…
  • Sensitivity/Speed set/Percentage
  • Overload alarm/Fault alarm/Level indicator
  • Option:Under weighing/Printer
Internal Function:
  • Internal auto calibration
  • LCD(White back light with black font)
  • One key/Time trigger internal calibration
  • Electromagnetic force sensor
  • Aluminum shell/Large space wind proof cover
  • Tare function/Counting/Percentage
  • Unit conversion(g/mg/ct/oz)…
  • Under weighing
  • Sensitivity/Speed set
  • Overload alarm/Fault alarm/Level indicator
Technical Specifications
Model (External Calibration) YR05580 YR05581 YR05582 YR05583
Model (Internal Calibration) YR05580 YR05581 YR05582 YR05583
Capacity 100g 120g 200g 220g
Readability 0.0001g
Min Weighing 0.0004g
Repeatability ±0.0002g
Linearity ±0.0003g
Stable Time ≤3S
Pan Size Ø80mm
Appearance Size 340x215x350mm
Draft Shield Size 240x190x265mm

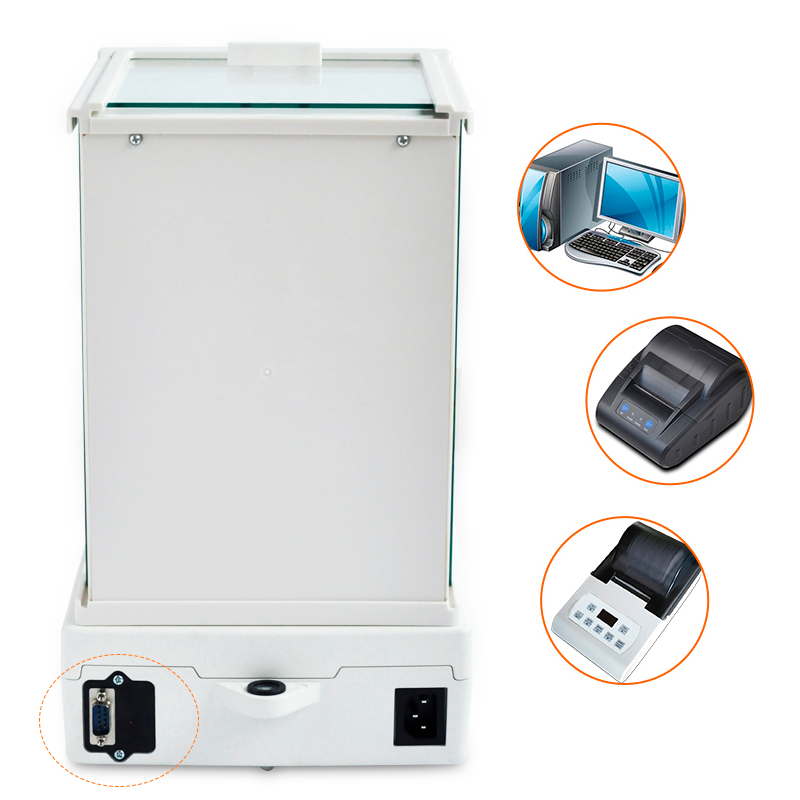

Communication RS232(Standard) / USB、RJ45 (Optional)
Temperature 15-35℃
Cal.Weight 100g 200g
Option Printer
Packing Size Inner box:415x285x430mm    Outer box:475x315x485mm
Gross Weight 11kg

Additional Information

Weight 11 kg
Dimensions 48 × 32 × 49 cm
Model

YR05580, YR05581, YR05582, YR05583
