Description

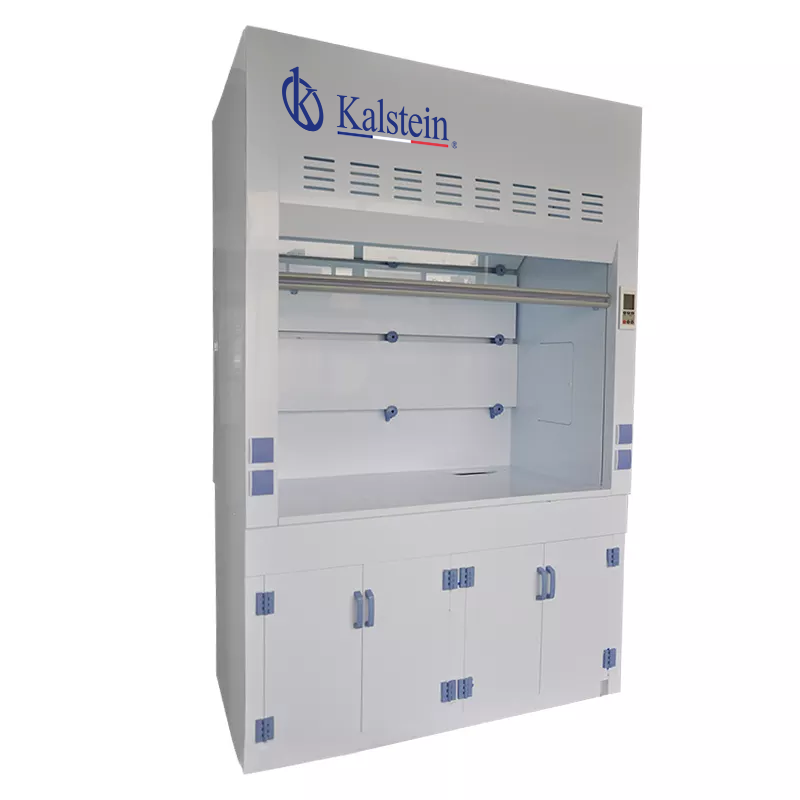

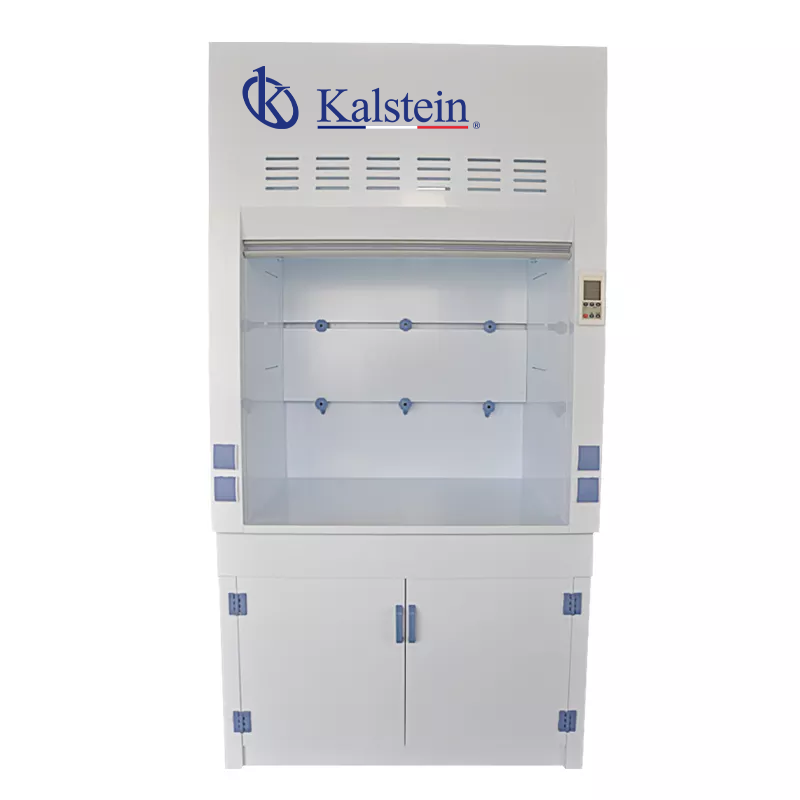

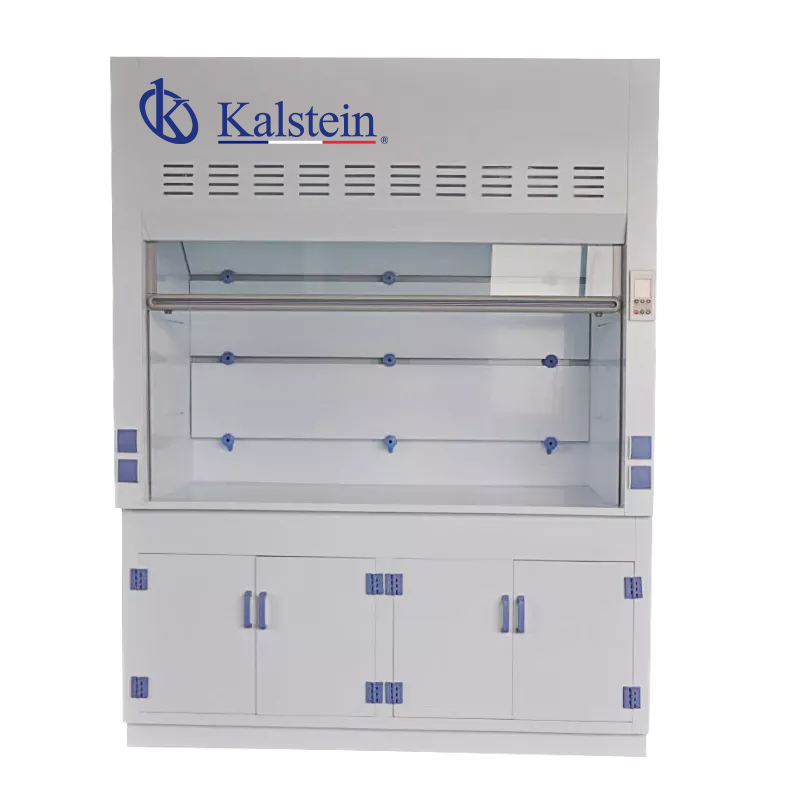

The Laboratory Ventilation Cleaning Fume Extraction System Hood Equipment Fume Hood YR05826 // YR05828 is designed to provide optimal safety and efficiency in laboratory environments. This cutting-edge fume hood offers a powerful airflow system that ensures contaminated air is effectively expelled, safeguarding users from hazardous emissions. Crafted from durable 8.0mm PP polypropylene, the equipment is highly resistant to acids, alkalis, and corrosion, promising long-term performance and reliability. The fume hood features a sliding window door made of tempered glass, ensuring clear visibility and enhanced safety. Its user-friendly LCD control panel allows for easy operation of the power, lighting, and ventilation settings.
Market Price
The market price for laboratory fume hoods such as this one can typically range from $3,000 to $3,800. While pricing varies based on features and specifications, investing in a high-quality fume extraction system is crucial for maintaining a safe and compliant laboratory environment. For a detailed quote tailored to your specific needs, consider using the Kalstein Plus platform to receive an automatic estimation.
Frequently Asked Questions
Q: Is the fume hood’s size customizable?
A: Yes, the dimensions can be customized upon request to fit your laboratory’s specific requirements.
Q: What materials are used in the construction of the fume hood?
A: The fume hood is constructed from 8.0mm PP polypropylene, known for its superior resistance to corrosion, acids, and alkalis.
Advantages and Disadvantages
Advantages: The fume hood offers excellent chemical resistance, customizable sizing, and efficient airflow management, enhancing laboratory safety. Its ergonomic design and clear control panel simplify use and maintenance.
Disadvantages: As with any specialized equipment, initial costs may be on the higher side, but long-term safety and regulatory compliance benefits outweigh this disadvantage.
Product Use in the Field
This fume hood is ideal for laboratories conducting experiments and processes involving hazardous substances. By maintaining a constant flow of clean air and extracting contaminated gases, it ensures a safe workspace. Suitable for chemical, biological, and analytical labs, its design allows for seamless integration with existing laboratory setups.
Recommendations
For optimal performance, regular maintenance and inspection of the fume hood and its components are recommended. It’s advisable to schedule periodic checks of the exhaust systems and control panel to ensure all operations remain smooth and efficient. For enhanced durability, keep the unit clean and free from chemical residues.
Features
- Constructed from 8.0mm PP polypropylene for maximum resistance to acids and alkalis.
- LCD control panel for easy operation and monitoring.
- Adjustable sliding window for accessibility and safety.
- Highly efficient airflow system for effective fume extraction.
Technical Specifications
| Model | YR05826 | YR05827 | YR05828 |
| Notes
Above size is our standard item. Dimension can be customized upon customer’s request. Built-in axial flow blower and ⊄250mm exhaust duct included. |
|||
| Housing | Using 8.0mm PP polypropylene plate welding production, after carving, bending the entire cabinet at one time, featured with strong anti-acid and alkali, corrosion resistance. | ||
| Inner shell | Using a new 8.0mm PP polypropylene plate welding production, with strong anti-acid and alkali, corrosion resistance characteristic, the inner side board can be fixed with water cock, gas cock. The back plate can be fixed with baffle, roof lighting and gas hood device. | ||
| Operational worktop | 8.0mm PP polypropylene worktop, includes water fender, spray-proof, the table has a good performance of waterproof, anti-acid and alkali. | ||
| Baffle | 8.0mm PP polypropylene board, resistant to strong acid and alkali. Installed in the back of the work space and above, including at least three pieces plates, so that the work space and the connection between the exhaust pipe to form a gas chamber, the polluted gas are exhausted completely, the baffle plate is attached to the cabinet with the clips, detachable. | ||
| Gas hood | PP material, with a strong corrosion resistance, rectangular opening at the bottom of the entrance, circular opening at the top | ||
| Fluorescent lamp | 1 piece 30W light (waterproof, anti-corrosion, anti-oxidation) | ||
| Window sliding door | Movable vertical pull-up door, placed between the work space and the operator to protect the operator’s safety, combined with the balance position, sliding doors can be stopped at any point of activity. a piece of tempered glass window on the adjustable door, the field of view can be completely clear. | ||
| Window | Using 5mm thick tempered glass | ||
| Window frame | Aluminum alloy door frame, ensure the safety and durability of the window | ||
| Windows Suspension Cable | Plastic suspension cable, low noise, fast pulling speed, strong balance characteristic | ||
| Control switch | LCD control panel, set with the power, switches, lighting, fan and running lights and other buttons, the LCD screen can clearly show the operation of the fume hood. | ||
| Socket | Equipped with four 220V universal socket. (Other type of socket can be optional, according to customers need) | ||
| Base cabinet | 8.0mm PP polypropylene board, the door is firm solid, not easy to deformation, elegant appearance | ||
| Door handle | Laboratory PP handle, strong corrosion resistance. | ||
| Hinge | Laboratory PP hinge, strong corrosion resistance. | ||
| Water sink | PP cup , made of high-density PP ,strong corrosion resistance, with filtering and anti-odor function, water trap with high-density PP production( This is extra option) | ||
| Water cock | wall-mount remote control water valve, faucet, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; Ceramic valve core, 90 ° rotation, life span 500,000 times, static maximum resistance Pressure 20 bar; switch knob for high-density PP production, ergonomic design, feel comfortable. (This is extra option) | ||
| Gas cock | Wall-mount remote control gas valve, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; ergonomic design, feel comfortable. (This is extra option) | ||
| Optional Accessories | |||
| Air Velocity /Exhaust air volume requiremen | 0.4m/sec~0.6 m/sec. | ||
| Noise | ≤60dB | ||
| Blower | PP centrifugal energy-saving fan, fan motor 380V three-phase motor, fan material PP polypropylene, with high strength, light weight, not easy to aging, low noise, excellent corrosion resistance and so on. (According to the actual need, equip with the fan, duct, etc., the fume hood price does not include the fan ,duct and related accessories prices. | ||
| Dimension
(L x W x H) (mm) |
1200 x 850 x 2350 | 1500 x 850 x 2350 | 1800 x 850 x 2350 |
| Weight (Kg) | 220 | 280 | 350 |
