Illumination (Ray radiation) Incubator YR05331 // YR05333

YR series light chamber

Balanced refrigeration, automatic defrost, environmental protection without fluorineR134 refrigerant, LCD display, microcomputer intelligent PLD control, illumination five can be adjusted, built-in tempered glass viewing door. Applies to plant seed germination, seeding, bacteria, microbes, animals and insects feeding, product quality testing and other uses of light, constant temperature experiments.is an ideal environment test equipment for such as biology, medicine, agriculture and animal husbandry, forestry, environmental science research departments.

Product Introduction

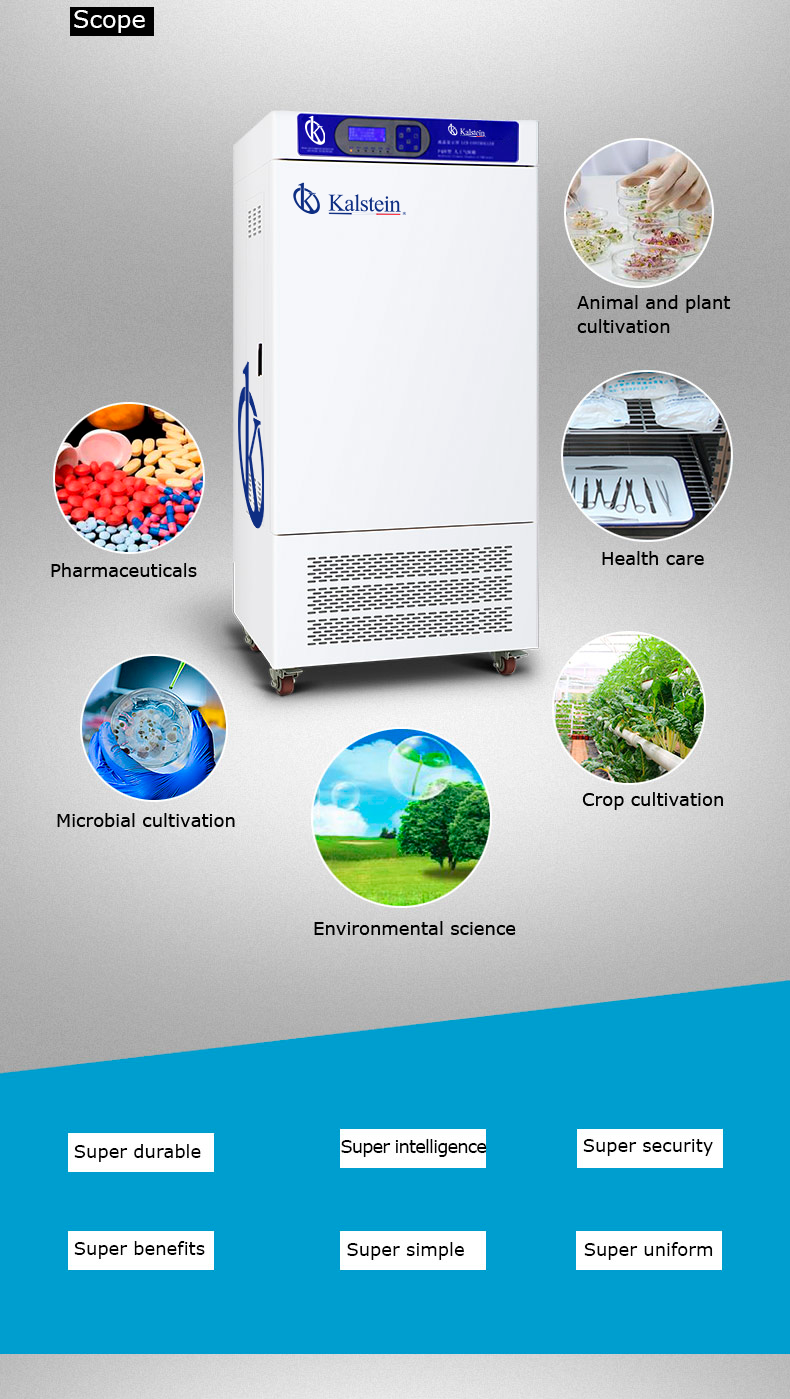

• Applies to plant seed germination, seedling cultivation, the cultivation and preservation of bacteria, microbes, small animals, insects, feeding, product quality testing and other uses of light, constant temperature experiments. Simulate natural climate and environment, through the light control simulation during the day and night, the humidity inside (this feature is limited to artificial climate incubator, the temperature can be adjusted to a constant temperature degree is an ideal environment test equipment for such as biology, medicine, agriculture and animal husbandry, forestry, environmental science research departments.

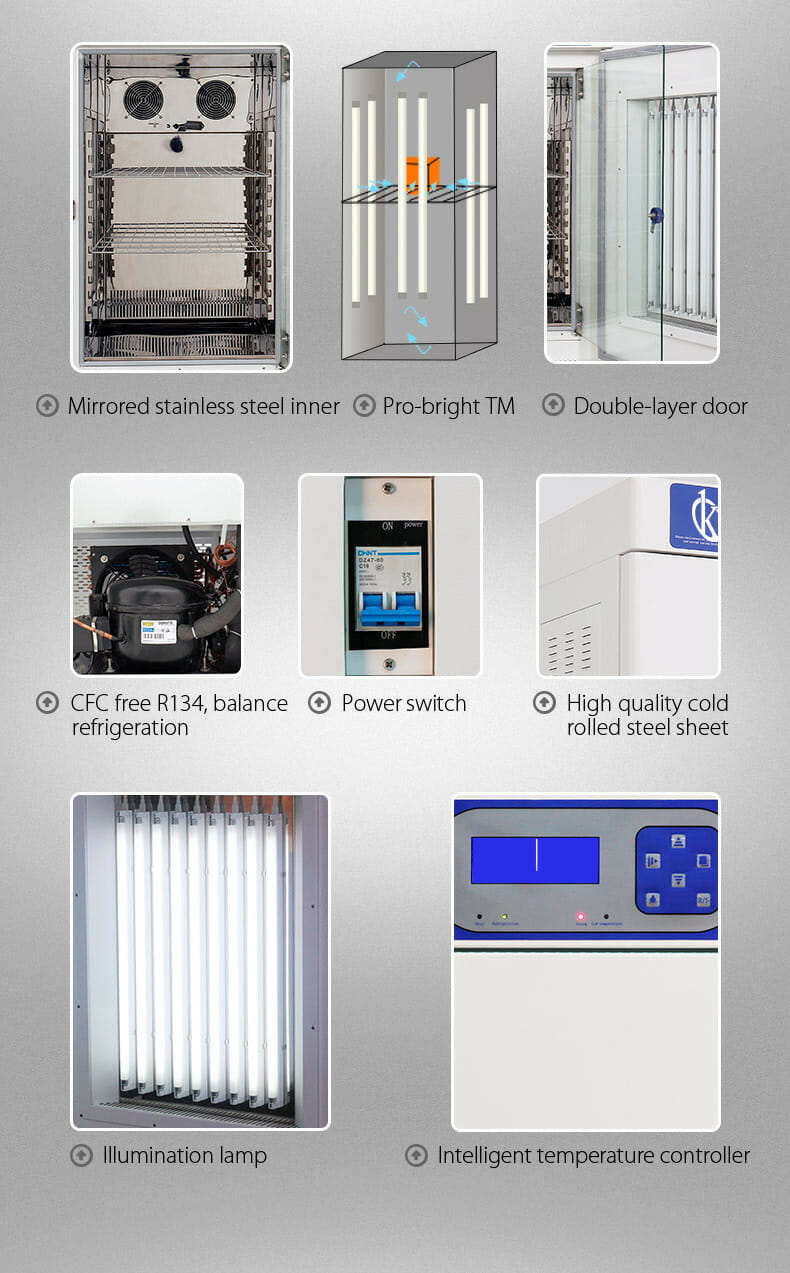

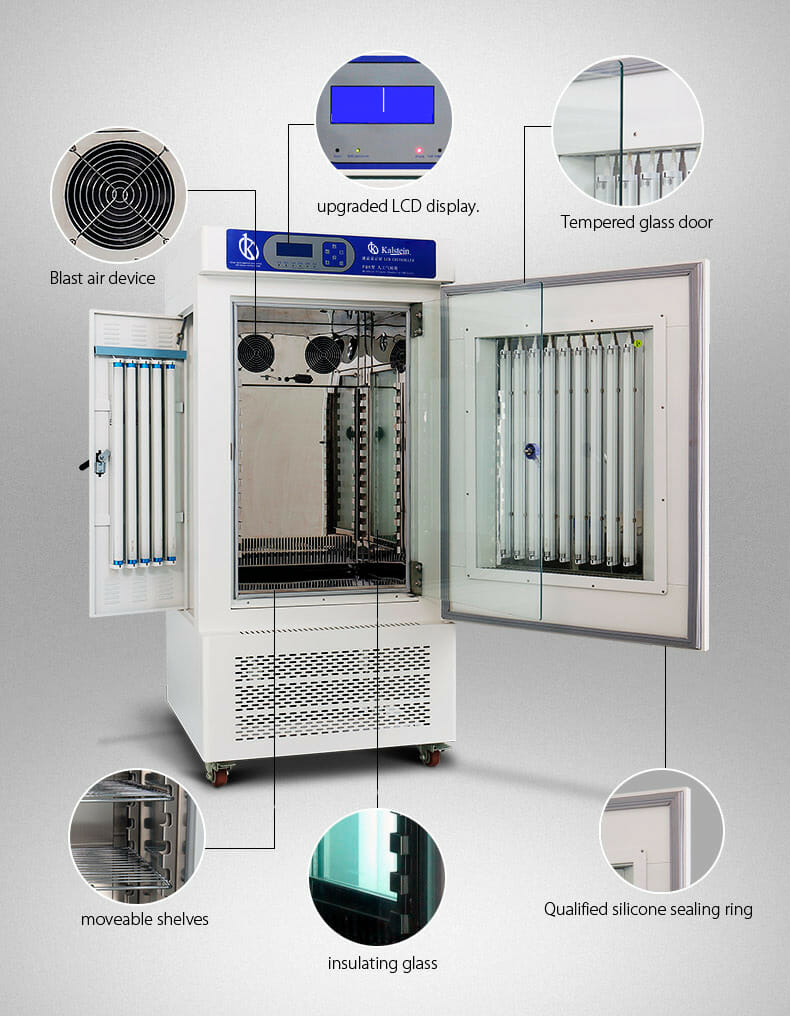

Features

• Balanced refrigeration, small temperature fluctuations, and set the automatic defrost, multiple layers of security protection, required to meet the long-running, with the well-known international brand compressor with delay protection function and smooth running.
• Introduction of green philosophy, the use of Freon R134 refrigerant and make the system more energy efficient, healthier environment.
• The temperature control system with upgraded LCD display, programmable microcomputer intelligent PID control technology, with timing, ultra-high temperature alarm function.
• The unique air circulation, soft wind, to ensure temperature uniformity.
• Illumination five level can be adjusted, liner is made of mirror stainless steel, up and down pitch adjustable shelf.
• The double door design, built-in tempered glass viewing window, the items inside can be clearly observed.
• Artificial climate chamber with built-in high-capacity intelligent humidification systems, and automatic replenishment by the external tank

Technical Parameters

Product name	Illumination (Ray radiation) incubator YR series
Model	YR05331	YR05332	YR05333
3Temp range ℃	With illumination 10~50℃，With no illumination 5~60℃
Temperature uniformity values ℃	±1		±1.5
Illumination LX	0~10000	0~15000	0~15000
Illumination set range	Five level（20%、40%、60%、80%、100%）
Timing range	0~99h
Power W	900	1000	1200
Voltage V	220
Accuracy ℃	±0.1
Volume L	150	250	350
Inner size  （mm）（H*W*D）	800*500*380	1000*550*450	1000*580*600
Overall dimension （mm）（H*W*D）	1525*735*680	1775*785*750	1775*815*900
Packing size (mm)(H×W×D)	1680*810*760	1925*860*830	1925*890*980
Net weight (KG)	120	155	188
Shipping weight (KG)	128	165	198
