Description
The Manual Halogen Laboratory Microscope YR0266A // YR0266C is a state-of-the-art fully automated, motorized scientific instrument designed for high-level research. This cutting-edge laboratory microscope is equipped with an electric platform, autofocus capabilities, an electric objective conversion, a touch screen controller, and robust imaging software. It seamlessly integrates observation, image acquisition, and processing, minimizing repetitive actions and enhancing the stability and accuracy of microscopic imaging. Additionally, it remembers the settings from the last use, making it highly efficient for laboratory and clinical operations. Experience a new level of speed and efficiency with this revolutionary piece of scientific equipment.
Market Price
The Manual Halogen Laboratory Microscope YR0266A // YR0266C is priced within the market range of $29,500 to $30,800. This pricing reflects the advanced technological features and capabilities of the microscope, making it a worthwhile investment for laboratories, clinics, and research institutions seeking precision and efficiency.
Frequently Asked Questions
- What is the resolution capability of this microscope? The microscope provides high-resolution imaging suitable for a variety of laboratory applications, enhanced by its infinity optical system.
- Can I restore the settings from my previous session? Yes, the YR0266A // YR0266C is designed to remember and restore previous settings for user convenience.
- Advantages: High-tech automated features, accurate imaging, reduced manual adjustments, ergonomic design.
- Disadvantages: Its advanced features may be superfluous for basic laboratory needs and requires an investment reflective of its capabilities.
- Newly designed full auto motorized research-level laboratory microscope.
- Equipped with an electric platform, autofocus, and electric objective conversion.
- Incorporates a touch screen controller and advanced imaging software.
- Restores last operation settings to save time and improve imaging consistency.
- Designed for ergonomic comfort and efficient operation.
Advantages and Disadvantages
Product Usage in the Field
This microscope excels in research environments where precision and repeatability are paramount. Its motorized functions and imaging software make it ideal for both educational purposes and complex clinical diagnostics. Scientists and clinicians utilize this equipment to observe and capture detailed images with minimal manual intervention.
Recommendations
To maximize the effectiveness and lifespan of the YR0266A // YR0266C, it is recommended to perform regular maintenance checks and ensure that the imaging software is kept updated. Proper training on its automated features can further enhance efficiency and user experience.
Features
Technical Specifications
Full Auto Motorized Research Level Scientific Laboratory Microscope | Accesory Number | YR0266A | YR0266B | YR0266C | |
Optical System | NIS60 Infinity Optical System | ● | ● | ● | |
Observation Method | Bright Field | ● | ● | ● | |
Dark Field | ○ | ○ | ○ | ||
Polarizing | ○ | ○ | ○ | ||
Phase Contrast | ○ | ○ | ○ | ||
Fluorescent | ○ | ○ | ○ | ||
DIC | ○ | ○ | ○ | ||
Main Body | Manual Body + Halogen Illumination. | YR0266C-op1 | ● | – | – |
Manual Body + LED Illumination. | YR0266C-op2 | ● | – | – | |
Semi-Auto Body + Halogen Illumination. | YR0266C-op3 | – | ● | – | |
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
Semi-Auto Body + LED Illumination. | YR0266C-op4 | – | ● | – | |
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
Full Auto Body + LED Illumination. | YR0266C-op5 | – | – | ● | |
Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD Screen | |||||
Head | Seidentopf Binocular Head, Inclined 30°, | YR0266C-op6 | ○ | ○ | ○ |
Interpupillary Distance 47-78mm | |||||
Seidentopf Trinocular Head, Inclined 30°, | YR0266C-op7 | ● | ○ | ● | |
Interpupillary Distance 47-78mm, | |||||
3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | YR0266C-op8 | ||||
Ergo Tilting Trinocular Head, Inclination 0°~35°, | ○ | ● | ○ | ||
Interpupillary Distance 47-78mm, | YR0266C-op9 | ||||
3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | |||||
Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op10 | ●● | ●● | ●● |
SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op11 | ○ | ○ | ○ | |
EW12.5x/16mm, High Eyepoint | YR0266C-op12 | ○ | ○ | ○ | |
WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op13 | ○ | ○ | ○ | |
WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op14 | ○ | ○ | ○ | |
Nosepiece | Manual Nosepiece, Quintuple, Backward, Center Adjustable | YR0266C-op15 | ○ | ○ | ○ |
Manual Nosepiece, Sextuple, Backward | YR0266C-op16 | ● | – | – | |
Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust | YR0266C-op17 | ○ | – | – | |

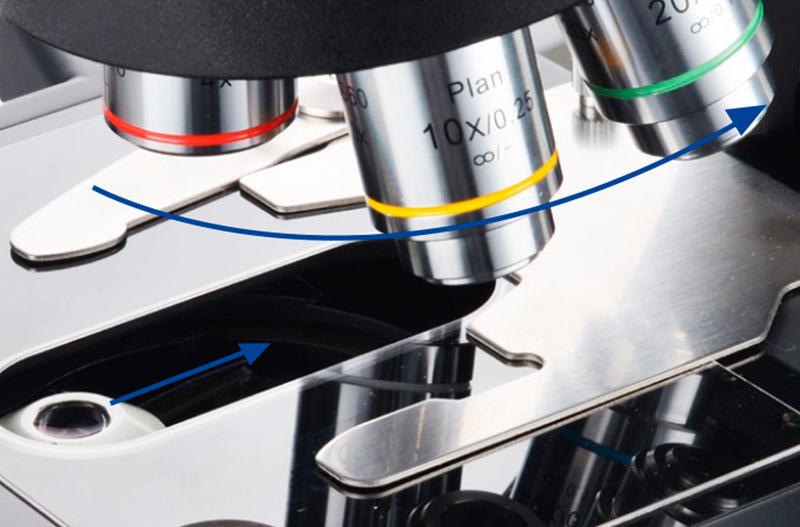

Auto Coded Nosepiece, Sextuple, Backward, | YR0266C-op18 | ○ | ● | ● | |
Motorized Switch Objectives, Controlled By: | |||||
1. Shortcut Button On Right Side Of Base, Can Switch 2 Preset Objectives Quickly | |||||
2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objectives, Press Green Button Can Swap Between Them | |||||
With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ● | ||
Protect Cover For Nosepiece Holes | YR0266C-op19 | ● | ● | ● | |
NIS60 | 2x/0.06, W.D.7.5mm, Cover Glass 0.17mm | YR0266C-op20 | ○ | ○ | ○ |
N-PLN | 4x/0.10, W.D.30mm, Cover Glass 0.17mm | YR0266C-op21 | ● | ● | ● |
Infinity Plan Objective | 10x/0.25, W.D.10.2mm, Cover Glass 0.17mm | YR0266C-op22 | ● | ● | ● |
20x/0.40, W.D.12mm, Cover Glass 0.17mm | YR0266C-op23 | ● | ● | ● | |
40x/0.65, W.D.0.7mm, Cover Glass 0.17mm | YR0266C-op24 | ● | ● | ● | |
50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm | YR0266C-op25 | ○ | ○ | ○ | |
60x/0.8, W.D.0.3mm, Cover Glass 0.17mm | YR0266C-op26 | ○ | ○ | ○ | |
100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm | YR0266C-op27 | ● | ● | ● | |
NIS60APO Infinity Plan | 20x/0.75, W.D.1.1mm, Cover Glass 0.17mm | YR0266C-op28 | ○ | ○ | ○ |
100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm | YR0266C-op29 | ○ | ○ | ○ | |
Working Stage | Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Left Handle | YR0266C-op30 | ○ | – | ○ |
Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Right Handle | YR0266C-op31 | ● | – | ○ | |
Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Left Handle | YR0266C-op32 | – | ○ | ○ | |
Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Right Handle | YR0266C-op33 | – | ● | ○ | |
Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw | – | ● | ● | – | |
Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick, | YR0266C-op34 | ○ | ○ | ● | |
–Travel Range X:125mm, Y:75mm, | |||||
–Minimum Step 0.1um | |||||
–Re-Position Accurate +/-1.5um | |||||
–Max Speed 25mm/s | |||||
–Size: 275x239x44.5mm | |||||
–Soft Stop, Mechanical Stop, Opto-Electro Switch Stop | |||||
–Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um | |||||
–Z Axis Max Speed 10r/s | |||||
–3D Control Stick, 4 Speeds | |||||
–Connection By USB2.0 & RS232 | |||||
–Communication Speed 9600 bits | |||||
Z Axis Upgrade With Optical Grating Ruler | YR0266C-op35 | ○ | ○ | ○ | |
Condenser | Swing-Out Condenser NA0.9/0.25 | YR0266C-op36 | ● | – | – |
Auto Swing-Out Condenser NA0.9/0.25 | YR0266C-op37 | ● | – | ||
Focusing | Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Right | – | ● | ● | ● |
Light Source | Transmit Kohler Illumination, Brightness Adjustable, | YR0266C-op38 | ● | ● | |
12V100W Halogen, External Lamp House | |||||
TransmitKohler Illumination, Brightness Adjustable, | YR0266C-op39 | ● | |||
3W S-LED, Built-in Main Body | |||||
ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy | YR0266C-op40 | ● | ● | ● | |
Auto Brightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected | YR0266C-op41 | ○ | ● | ● | |
(To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time) | |||||
Filter For Transmit Light | Filter Holder On Base, Can Hold 3 Filters | YR0266C-op42 | ● | ● | ● |
Filter LBD | YR0266C-op43 | ● | ● | ● | |
Filter Green | YR0266C-op44 | ● | ● | ● | |
Filter Yellow | YR0266C-op45 | ● | ● | ● | |
Filter ND6 | YR0266C-op46 | ● | ● | ● | |
Filter ND25 | YR0266C-op47 | ● | ● | ● | |
Adapter | Eyepiece Adapter Dia.23.2mm | YR0266C-op48 | ○ | ○ | ○ |
C-Mount 1.0x | YR0266C-op49 | ○ | ○ | ○ | |
C-Mount 0.5x | YR0266C-op50 | ○ | ○ | ○ | |
Software | NOMIS Basic Image Processing Software | YR0266C-op51 | ○ | ○ | ○ |
Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | YR0266C-op52 | ○ | ○ | ○ |
Dark Field Condenser, N.A. 1.25~1.36, Immersion | YR0266C-op53 | ○ | ○ | ○ | |
Dark Field Objective, Infinity Plan 100X, | YR0266C-op54 | ○ | ○ | ○ | |
For Immersion Dark Field Observation | |||||
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, | YR0266C-op55 | ○ | ○ | ○ | |
For Immersion Dark Field Observation | |||||
Polarizing | Polarizer For Transmit Light Source, Swing-Out, On Collector | YR0266C-op56 | ○ | ○ | ○ |
Analyzer For Transmit Light, Slide With Quartz Wedge Compensator | YR0266C-op57 | ○ | ○ | ○ | |
1Professional Polarizing Microscope | YR0266C-op58 | ○ | ○ | ||
Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | YR0266C-op59 | ○ | ○ | ○ |
Centering Telescope 10x | YR0266C-op60 | ○ | ○ | ○ | |
Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | YR0266C-op61 | ○ | ○ | ○ | |
Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | YR0266C-op62 | ○ | ○ | ○ | |
Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | YR0266C-op63 | ○ | ○ | ○ | |
Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | YR0266C-op64 | ○ | ○ | ○ | |
DIC | Polarizer For Transmit Light Source | YR0266C-op65 | ○ | ○ | ○ |
Turret DIC Condenser | YR0266C-op66 | ○ | ○ | ○ | |
DIC Slide 10x, Used With Semi-APO Fluorescent Objective | YR0266C-op67 | ○ | ○ | ○ | |
DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | YR0266C-op68 | ○ | ○ | ○ | |
DIC Slide 100x, Used With Semi-APO Fluorescent Objective | YR0266C-op69 | ○ | ○ | ○ | |
DIC Slide With Analyzer 10x-20x | YR0266C-op70 | ○ | ○ | ○ | |
DIC Slide With Analyzer 40x-100x | YR0266C-op71 | ○ | ○ | ○ | |
NIS60 N-PLFN | 4x/0.13, W.D.16.5, Cover Glass 0.17mm | YR0266C-op72 | ○ | ○ | ○ |
Semi-APO | 10x/0.3, W.D.8.1, Cover Glass 0.17mm | YR0266C-op73 | ○ | ○ | ○ |
Fluorescent | 20x/0.5, W.D.2.1, Cover Glass 0.17mm | YR0266C-op74 | ○ | ○ | ○ |
Objective | 40x/0.75, W.D.0.7, Cover Glass 0.17mm | YR0266C-op75 | ○ | ○ | ○ |
For DIC | 100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil | YR0266C-op76 | ○ | ○ | ○ |
Fluorescent | Fluorescent Microscope | YR0266C-op77 | – | ○ | ○ |
Other Accessories | Working Stage Holder Bracket | YR0266C-op78 | ● | ● | ● |
Adapter To Adjust Eye Position | YR0266C-op79 | ○ | ○ | ○ | |
Adapter To Lower The Stage Position 1″ | YR0266C-op80 | ○ | ○ | ○ | |
Immersion Oil | YR0266C-op81 | ● | ● | ● | |
Allen Wrench | YR0266C-op82 | ● | ● | ● | |
Power Cord | YR0266C-op83 | ● | ● | ● | |
Short Eye Cover, For Eyepiece | YR0266C-op84 | ○ | ○ | ○ | |
Long Eye Cover, For Eyepiece | YR0266C-op85 | ○ | ○ | ○ | |
Eyepiece Micrometer, Cross | YR0266C-op86 | ○ | ○ | ○ | |
Adapter Ring To Install Eyepiece Micrometer | YR0266C-op87 | ○ | ○ | ○ | |
USB Cable | YR0266C-op88 | ○ | ○ | ○ | |
Note:”●” In Table Is Standard Outfits, “○” Is Optional Accessories “-“Is Unavailable |
