Description

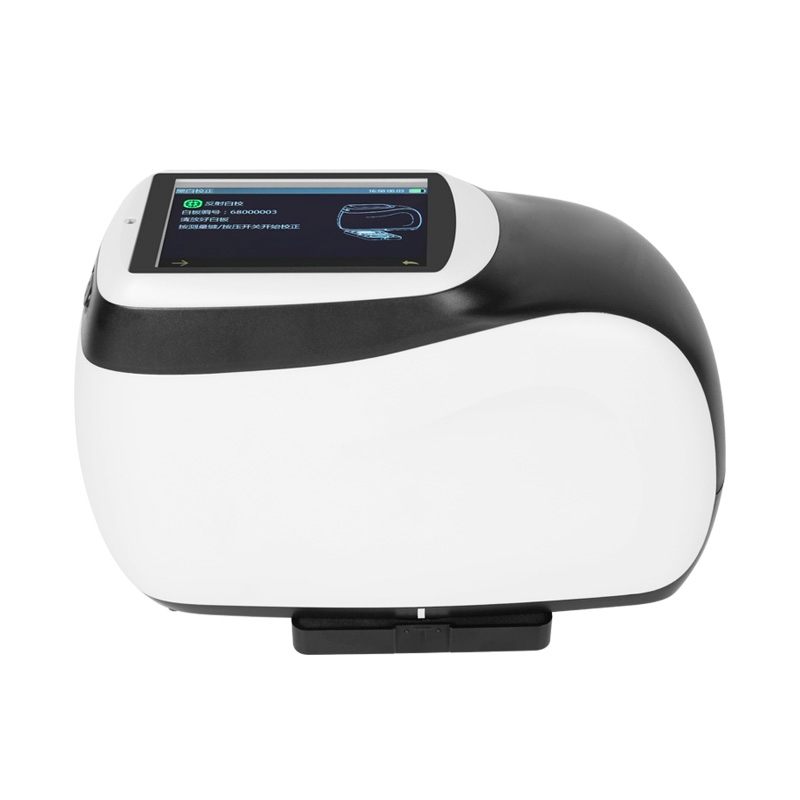

The Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489 by Kalstein is an advanced instrument crafted to assess color variances in items with unique finishes like metallic or pearlescent effects. This makes it indispensable for industries such as cosmetics, automotive, and plastics. With its multi-angle measurement capability at 25°, 45°, and 110°, this device detects chromatic changes under varied visual conditions. Enhanced with a high-tech optical system, it includes a dual-array 256-element CMOS sensor and a full-spectrum LED light source with blue enhancement, ensuring accuracy and reliability even on curved surfaces.
Market Price
The YR05488 // YR05489 is available in the market within a competitive range, spanning from approximately $13,340 to $14,140 USD, based on the specific configurations and optional accessories chosen. It is a smart investment for businesses eager to refine color precision in their industrial operations. For a tailored quote or immediate self-service generation, use the Kalstein Plus platform to ensure a seamless and dependable purchasing journey.
Frequently Asked Questions
- What are the suitable applications for the YR05488 // YR05489?
It excels in measuring products with metallic, pearlescent, and intricate special finishes, widely utilized in automotive, cosmetics, and plastics sectors. - Is it compatible with PC?
Yes, it is compatible with PC and includes color management software for in-depth analysis and comprehensive color data management. - What is its storage capacity?
This model supports storing up to 1,000 standards and 4,000 samples to ensure thorough and well-organized documentation.
Advantages and Disadvantages
The YR05488 // YR05489 boasts extraordinary precision with a ΔE*ab standard deviation of 0.04, combined with its multi-angle measuring capability ensures comprehensive capture of chromatic fluctuations. It facilitates fast and secure data transfer with USB and Bluetooth 5.0. However, its focus on complex finishes may limit its application if broader color analysis is needed.
Field Applications

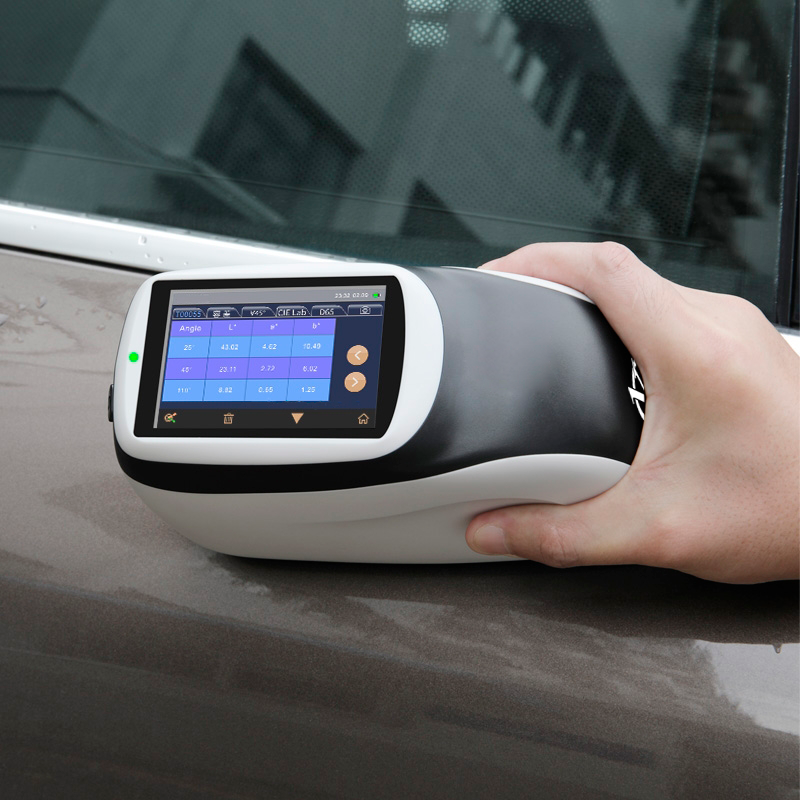

In practical settings, the YR05488 // YR05489 is crucial for managing color quality in products within automotive, cosmetics, and plastics domains where high accuracy in visual finishes is necessary. Its multi-angle features with camera preview allow precise placement of the targeted area, optimizing lab and production line efficiency. Its ergonomic design and 3.5-inch touchscreen are engineered for ease of use in industrial scenarios.
Recommendations
To ensure optimal functionality of this spectrophotometer, periodic calibrations and maintaining a clean, dust-free environment are advised. Its lithium-ion battery offers up to 6,000 measurements over 8 hours, so regular recharges are necessary. Request a personalized quote or swiftly generate one via Kalstein Plus and learn how the Multi-Angle Spectrophotometer YR05488 // YR05489 can enhance color accuracy in your industry, boosting precision and productivity in every production stage while upholding visual consistency in your offerings.
Features
- Advanced optical system with a dual-array 256-element CMOS sensor
- Full-spectrum LED light source with blue enhancement
- Multi-angle measurement: 25°, 45°, 110°
- USB and Bluetooth 5.0 connectivity
- Intuitive touchscreen with concave grating technology
- Meets international standards: ASTM, ISO, DIN
- Ergonomic design with a 3.5-inch color LCD screen
- Comprehensive data storage capacity
Technical Specifications
| Model | YR05488 | YR05489 |
| Measurement Geometry | 3 measurement angles (3 illumination sources, 1 receivers) | 5 measurement angles (5 illumination sources, 1 receivers) |
| Measure Angle | 45° Receiver： | 45° Receiver： |
| 45as25°,45as45°,45as110° | ||
| Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545 | Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194,
E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545 |
|
| Application | Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products | Provide accurate and consistent color measurement for metallic
, pearlescent and other complex special effect color products |
| Light Source | Full spectrum LED light source with blue enhancement | Full spectrum LED light source with blue enhancement |
| Lamp Life | 5 years, 3 million times measurements | 5 years, 3 million times measurements |
| Spectrophotometric Mode | Concave Grating | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400nm-700nm | 400nm-700nm |
| Wavelength Interval | 10nm | 10nm |
| Measurement Range | 0~600% | 0~600% |
| Semiband Width | 10nm | 10nm |
| Measuring Aperture | Φ12mm | Φ12mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
| Other Colorimetric Index | Flop Index | Flop Index |
| Observer Angle | 2°/10° | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,
F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),
F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display | Spectrogram/Values, Samples Chromaticity
Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | Approx. 1 second for one angle | Approx. 1 second for one angle |
| Approx. 3 seconds for all angles | Approx. 5 seconds for all angles | |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% | Spectral reflectance: Standard deviation within 0.08% |
| Chromaticity value: ΔE*ab 0.04 ( When a white
calibration plate is measured 30 times at 5 second intervals after white calibration) |
Chromaticity value: ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Reproducibility | ΔE*<0.10,avg on the gray tile of BCRA tile set | ΔE*<0.10,avg on the gray tile of BCRA tile set |
| ΔE*<0.25,avg on the color BCRA tile set | ΔE*<0.25,avg on the color BCRA tile set | |
| Inter-instrument Error | 0.2ΔE*00(avg on reference Series II BCRA tile set) | 0.2ΔE*00(avg on reference Series II BCRA tile set) |
| Effect Parameters | / | / |
| Effect Measurement | / | / |
| Effect Repeatability | / | / |
| Effect Reproducibility | / | / |
| Trigger mode | Pressure sensing trigger, button trigger, software trigger | Pressure sensing trigger, button trigger, software trigger |
| Measuring Mode | Single measurement, average measurement (1-99),
continuous measurement (1-99) |
Single measurement, average measurement (1-99), continuous measurement (1-99) |
| Locating Mode | Color camera preview | Color camera preview |
| Dimension | L*W*H=195X83X128mm | L*W*H=195X83X128mm |
| Weight | About 1Kg | About 1Kg |
| Power | lithium-ion battery, 3.7V,3200mAh, Continuous test
6000 times within 8 hours of full charge |
lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB | USB, Bluetooth 5.0 |
| Data Storage | 1000 pcs Standards,4000 pcs Samples | 1000 pcs Standards,4000 pcs Samples |
| Language | Simplified Chinese, Traditional Chinese, English | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 10℃ to 50℃, humidity does not exceed 85%, no
condensation |
10℃ to 50℃, humidity does not exceed 85%, no condensation |
| Storage Environment | -20℃ to 50℃, humidity does not exceed 85%, no
condensation |
-20℃ to 50℃, humidity does not exceed 85%, no condensation |
| Calibration | Built-in white board parameters, external white board, black light trap | Built-in white board parameters, external white board, black light trap |
| Calibration Interval | 4 hours,8 hours,24 hours,Startup calibration | 4 hours,8 hours,24 hours,Startup calibration |

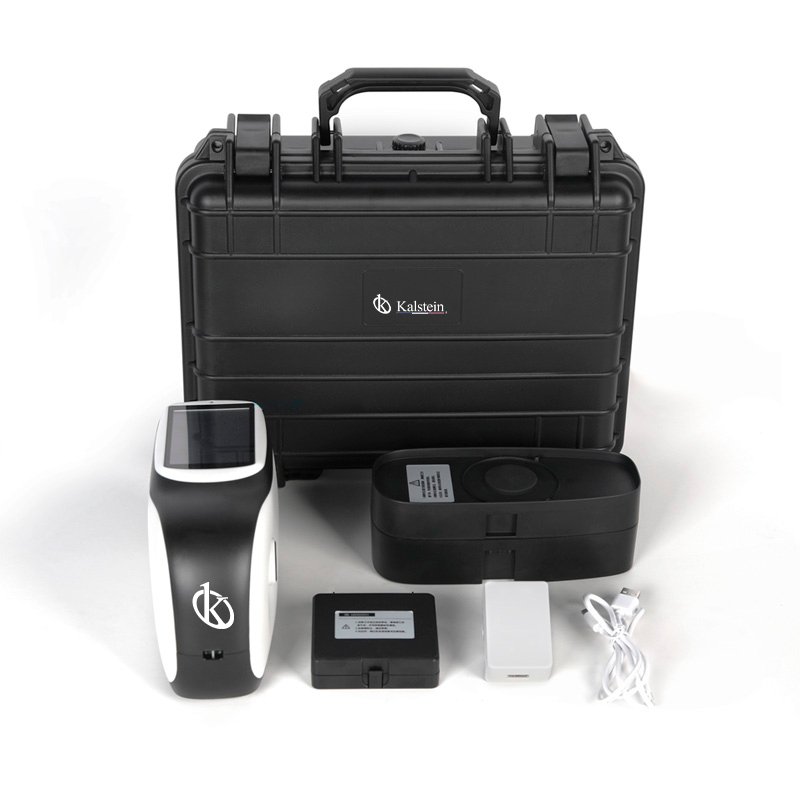

| Standard accessories | Power Adapter, USB Cable, User Guide,PC Software
(download from the official website), Calibration Board, black light trap,Protective cap, wristband |
Power Adapter, USB Cable, User Guide,
PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband |
| Optional Accessory | Micro-printer | Micro-printer |
| Notes | Technical parameters are for reference only, subject to
actual sales products. |
Technical parameters are for reference only, subject to actual sales products. |
