Description

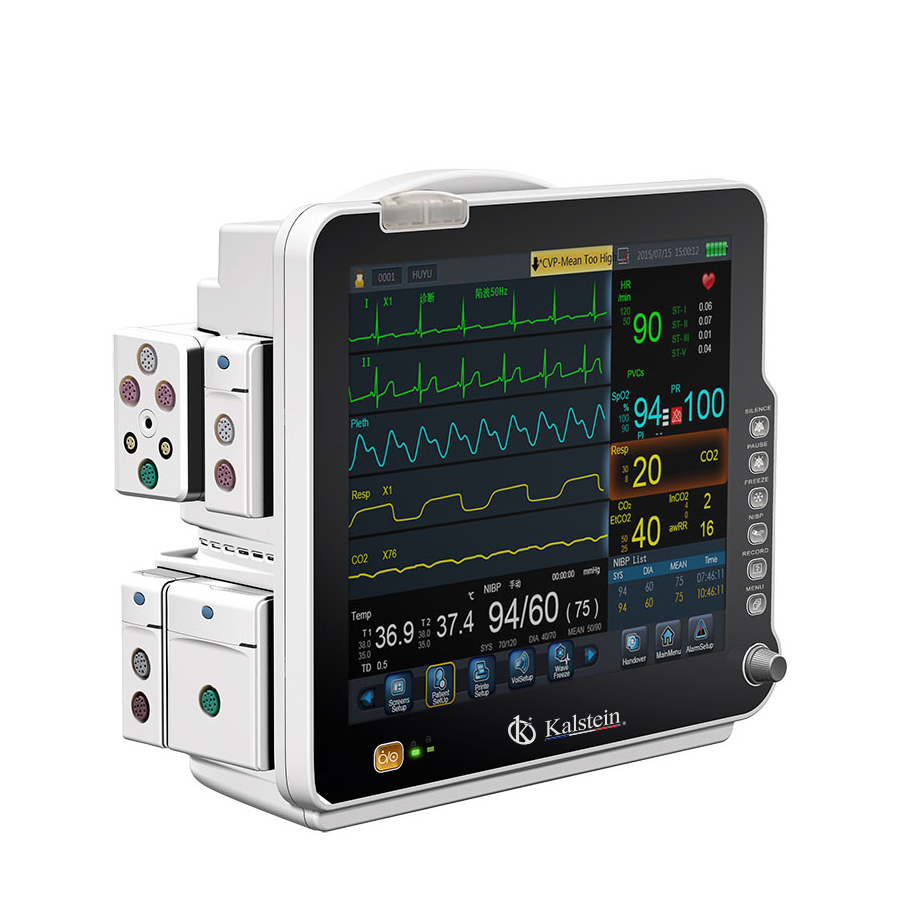

The Multi-parameter Patient Monitor YR02177 is a state-of-the-art medical device designed for high-precision monitoring in critical environments such as operating theaters (OT) and intensive care units (ICU). Featuring a spacious 17-inch LCD screen, this full modular parameter patient monitor provides various standard measurements including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. The device’s standard configuration includes a 5-lead ECG, RESP, Dual-Temp, SpO2, and NIBP functionality, while optional enhancements include Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., BIS, 3/12-lead ECG, Suntech NIBP, EtCO2, Thermal Recorder, ICG, and installation options such as Trolley or Wall mount.
Market Price
The Multi-parameter Patient Monitor YR02177 generally ranges between approximately $4600 and $5400, depending on configuration and optional enhancements. This price reflects its sophisticated design and the cutting-edge technology it encompasses, making it a competitive choice for healthcare providers seeking reliable patient monitoring solutions.
Frequently Asked Questions
Q: What parameters does the YR02177 monitor?
A: The YR02177 standard configuration measures ECG, SPO2, TEMP, NIBP, RESP, and PR/HR.
Q: Can this monitor be used in different settings?
A: Yes, it is specifically designed for use in operating theaters and intensive care units, but its modular design allows for adaptability in other medical environments.
Advantages and Disadvantages
Advantages: The YR02177 offers comprehensive monitoring capabilities and a customizable modular design, allowing healthcare providers flexibility. Its high-resolution LCD ensures clear visibility of parameters, crucial for critical care.
Disadvantages: Due to its advanced features, the monitor might require adequate training for optimal use, and the optional enhancements can lead to increased cost.
Product Use in the Field
This patient monitor is utilized in clinical settings to continuously track vital signs, facilitating timely medical interventions. In an ICU, for instance, it provides crucial data enabling healthcare professionals to make informed and immediate decisions.
Recommendations
To ensure longevity and optimal performance of the YR02177, regular maintenance and calibration are advised. Additionally, staff should be thoroughly trained to utilize its full capabilities efficiently. Utilizing Kalstein Plus, customers are encouraged to generate an automatic quote or request a personalized quote to explore configuration options that best suit their medical needs.
Features
- 17-inch LCD screen for clear displays in critical use environments
- Standard monitoring of ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Modular design with various optional enhancements
- Versatile use in OT and ICU settings
- Multiple connection and lead mode options in ECG
Technical Specifications
| Model | YR02177 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
