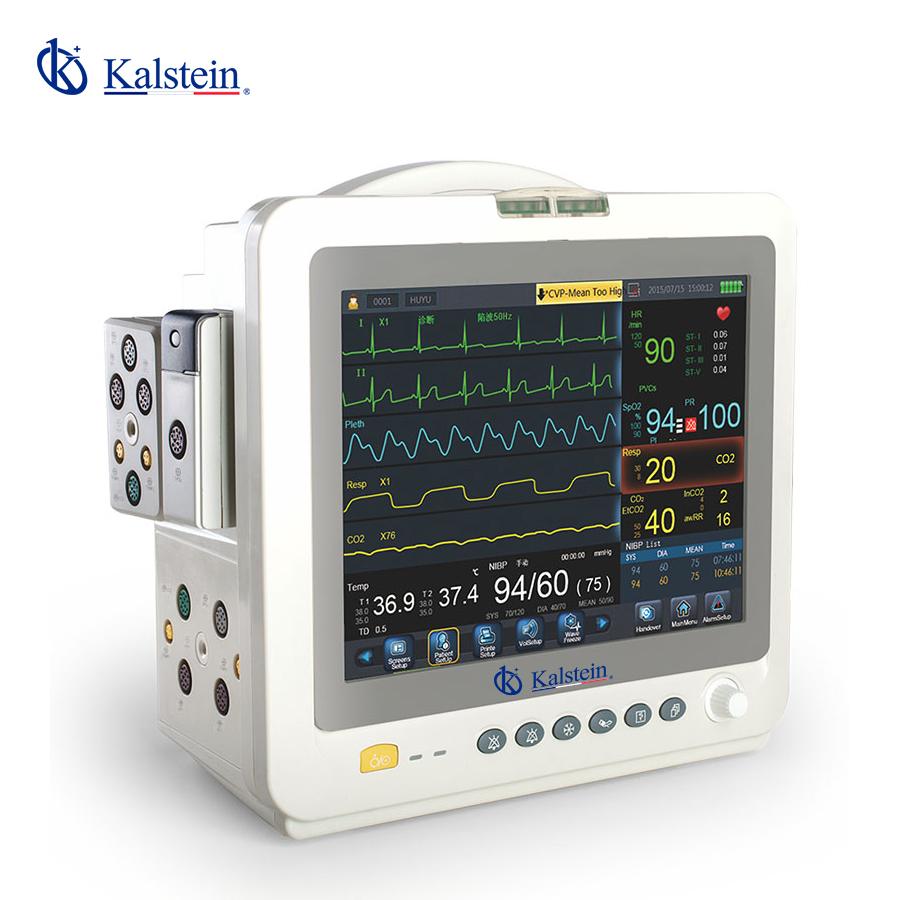

Multi-parameter patient monitor YR02178 // YR02179

Manufacturer : Kalstein

Product Description

• Monitoring of adults, children and newborns is supported;

• Slim body with hidden handle, easy to move;

• Visual and audible alarm with alarm light in three colors;

• Lithium battery inside;

• Fanless design, meets multi-patient ward requirements;

• Capable of saving data when power supply fails.

Model YR02178 YR02179




3 leads or 5 leads selectable
3 conductor cable: RA; LA LL or R: L; F
5 Lead wire: RA: LA: RL: LL: V or R: LN: F: C
Selection of potential clients


3 leads: 1, 1, 111
5 leads: 1, Il, Il, AR, AVL, AVF. v
ECG waveform 2 channels
win selection x0.25, x0.5.x1, x2.x4, Auto
sweep speed 12.5mm/s, 25mm/s, 50mm/s
Heart rate for newborns 15-350BPM
Heart rate for Adult Pediatric 15-300BPM
Precision 1 bpm or 1%, whichever is greater
Resolution 1 bpm


Diagnostic mode: 0.05-100Hz
Monitor mode: 0.5-40Hz
Surgical mode: 1.0-25Hz


Withstand voltage of 4000VAC / 50Hz in isolation
Against electrosurgical interference and defibrillation
alarm range 15-350bpm
ST segment detection


Measurement range: -2.0mv to 2.0mv
Alarm range: -2.5mv to 2.5mv
arrhythmia analysis Yes
Alarm audible and visual alarm, recallable alarm event
rhythm detection Yes
Drug dose calculation Yes
Standby mode Yes
Method Tooraclc impedance
Measuring range


Newborn / Pediatric: 0-150 RPM
Adult: 0-120 RPM
apnea alarm No alarm, 10s, 15s, 20s, 25s, 30s, 35s, 40s selectable
Alarm Audible and visual alarm, recallable alarm events
ETCO2 (optional)
Measuring range 0-99mmHg


0 to 40mmHg ± 2mmHg
41 to 76mmHg ± 5mmHg
77 to 99 mmHg ± 1 0 mmHg
Sample flow rate


Minimum: 50ml/m-7.5ml/m
Maximum: 50ml/m + 15ml/m
Start-up file


<1 min, once the module boots up, it reaches ISO
After 1 minute, enter full accuracy mode
respiratory rate 0 to 120rpm
Respiratory Rate Accuracy ±2rpm
Response time <240ms (10% to 90%)
Additional characteristics 10.4” screen, ECG, SpO2, RESP, NIBP, TEMP & PR 12″ display, ECG, SpO2, RESP, NIBP, 2*TEMP & PR

Additional Information

Weight N/A
Dimensions N/A

YR02178, YR02179
