Description

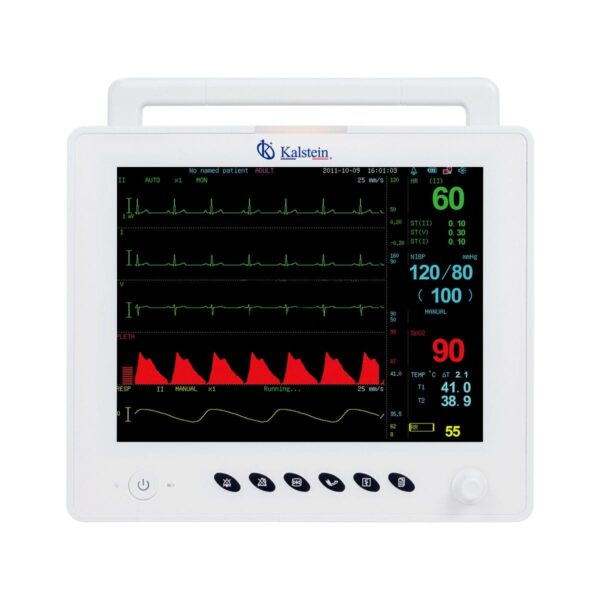

YR06105 is the latest portable multi-parameter veterinary monitor manufactured by Kalstein. With its large 12.1-inch flat screen display, YR06105 provides overall and accurate vital signs monitoring, including 3 or 5 lead ECG, pulse oximetry, non-invasive blood pressure, respiration, temperature, invasive blood pressure IBP, end-tidal CO2, anesthetic gas AG, cardiac output CO, etc., and it may also provide built-in thermal recorder and rechargeable Li-battery to support long-term emergency workings.
Features
- Classic size: 12.1-inch flat screen viewing, high brightness and high resolution color LCD display.
- Full parameter monitoring: YR06105 provides overall multi-parameter monitoring for animals, including ECG, pulse oximetry, blood pressure, respiration, temperature, invasive blood pressure IBP, end-tidal CO2, anesthetic gas AG, cardiac output CO, etc.
- Multiple display modes: Large font mode, dynamic breathing oxygenation map, dynamic trend graph, eight-channel waveform display, built-in 9 display modes and customized 5 modes. You’ll have the best choice among them.
- Large storage & playback: Up to 15 days (360 hours) large storage, uninterrupted recording of trend data, parameter waveforms reviewed and USB exported, so you may save patients’ case data properly.
- Ergonomic design: Unique streamlined appearance, foldable handles for easy carrying, and flexible application solutions for desktop, wall mounting, mobile trolley or cage hooks.
- Built-in rechargeable Li-battery: The low-power rechargeable Li-battery supports long-term mobile monitoring and emergency situations.
Technical Specifications
| Model | YR06105 | |
|
ECG
|
Input | 3-lead/5-lead ECG cable |
| Lead selection | I, II, III, AVR, AVL, AVF, V | |
| Gain selection | x1/4, x1/2, x1, x2, x4 and automatic | |
| Sweep speed | 3.125, 6.25, 12.5, 25, 50mm/s | |
| Measurement range | 15bpm~380bpm | |
| Calibration | ±1 mv | |
| Accuracy | ±1% | |
|
NIBP
|
Philosophy | Oscillometric method |
| Measurement parameter | Systolic, Diastolic, Mean | |
| Measurement method | Manual, Automatic, Continuous measurement | |
| Unit | mmHg/kPa selection | |
| Accuracy | ±3mmHg or ±2% | |
|
SpO2
|
Display type | Waveform, Data |
| Measurement range | 0~100% | |
| Accuracy | 1% | |
| Pulse rate range | 30~250bpm | |
| Accuracy | ±1 bpm | |
| Resolution | 1 bpm | |
|
Temperature
|
Number of channels | 2 |
| Measurement range | 0°C ~ 50°C | |
| Resolution | 0.1°C | |
| Display | T1, T2, ΔT | |
| Unit | °C/°F selection | |
|
Power
|
Working voltage | 100~240VAC, 50/60Hz |
| Power rate | 80 VA | |
| Battery backup | 3 hours as option | |
