Description

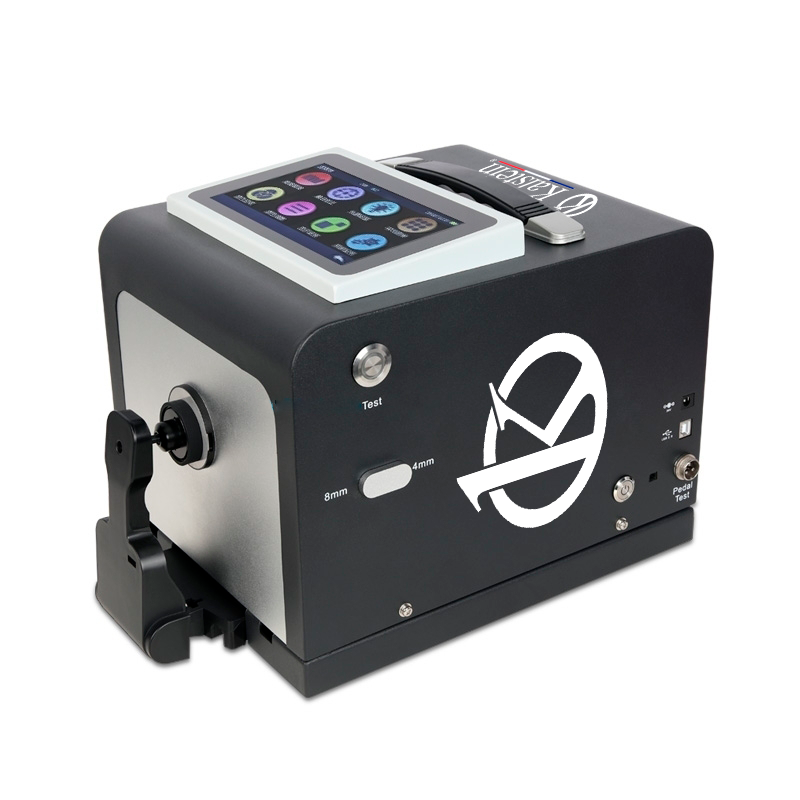

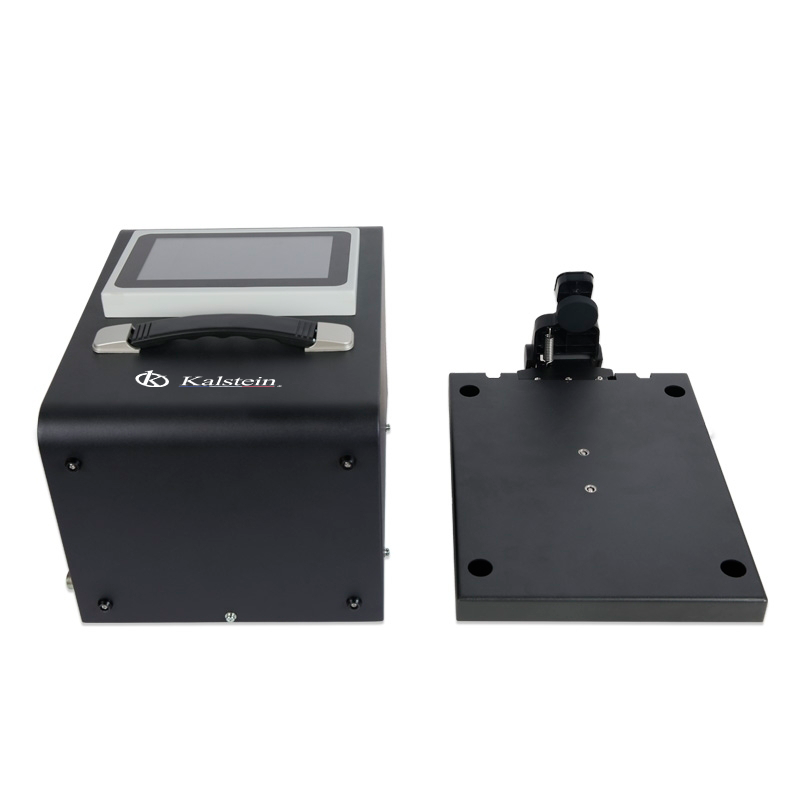

The Portable Desktop Spectrophotometer YR05487 is a state-of-the-art device designed for precision in color measurement across numerous industrial applications, such as textiles, ceramics, plastics, and electronics. Equipped with advanced technology, it features dual-array silicon photodiode sensors and offers customizable aperture options. With a positioning camera and a 7-inch touchscreen, this spectrophotometer ensures high accuracy and efficiency. Its friendly interface and compact design make it ideal for both laboratory and industrial settings.
Market Price
The YR05487 is available in the market at a competitive average price ranging approximately between $8,900 and $9,700 USD, depending on the configuration and additional accessories chosen, such as a micro printer or a rotating stand. This pricing positions the spectrophotometer as a strategic investment for businesses aiming to enhance precision and efficiency in their color management processes. For an exact quote personalized to your needs, you can easily connect with the Kalstein Plus platform.
Frequently Asked Questions
- What industries benefit from using the YR05487?
Industries such as textiles, ceramics, plastics, and electronics benefit greatly from the precise color measurement capabilities of this device. - Is it compatible with computers?
Yes, the spectrophotometer includes software that facilitates color management and is compatible with PCs, allowing comprehensive data handling and analysis. - How much data can the device store?
The YR05487 is capable of storing up to 1,000 standards and 20,000 samples, providing robust data storage for extensive records.
Advantages and Disadvantages
The YR05487 spectrophotometer presents several advantages such as high precision, versatility in sample size measurements, and quick connectivity through USB and Bluetooth 5.0. However, its sophisticated design primarily suits laboratory settings, which could limit its utility in smaller, less precise contexts.
Field Applications
This spectrophotometer is widely used in quality control and research laboratories where meticulous color analysis is vital. Its adaptable structure allows it to function efficiently in varied orientations, offering reliable results consistently. Fast measurement times enhance productivity and ensure seamless integration into industrial workflows.
Recommendations
To achieve optimal performance with the YR05487, regular calibration and maintenance in a clean, dust-free environment are advised. The device’s full-spectrum LED light source, along with ultraviolet light, ensures accurate measurements even under challenging conditions. For a personalized purchasing experience, visit the Kalstein Plus platform to obtain or generate an immediate quote and discover how the Portable Desktop Spectrophotometer YR05487 can elevate precision in color management within your industry.
Features
- Dual-array silicon photodiode sensors
- Customizable aperture options
- Positioning camera with a 7-inch touchscreen
- Compact and ergonomic design suitable for both lab and industry
- USB and Bluetooth 5.0 connectivity
- Comprehensive data storage capacity
Technical Specifications
| Model | YR05487 |
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source | |
| Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | Customized aperture,good for horizontal or vertical measurement, wider adaptability; |
| Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source |
| Spectrophotometric Mode | Flat Grating |
| Sensors | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0~200% |
| Measuring Aperture | Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
| Specular Component | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),
ΔE*cmc(1:1),ΔE*00 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,F2(CWF),F7(DLF),
F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating |
| Dimension | L*W*H=370X240X260mm |
| Weight | About 7.8kg |
| Battery | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, trigger switch interface |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture) |
| Optional Accessory | Micro Printer, Foot Switch, Rotating Bracket |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
