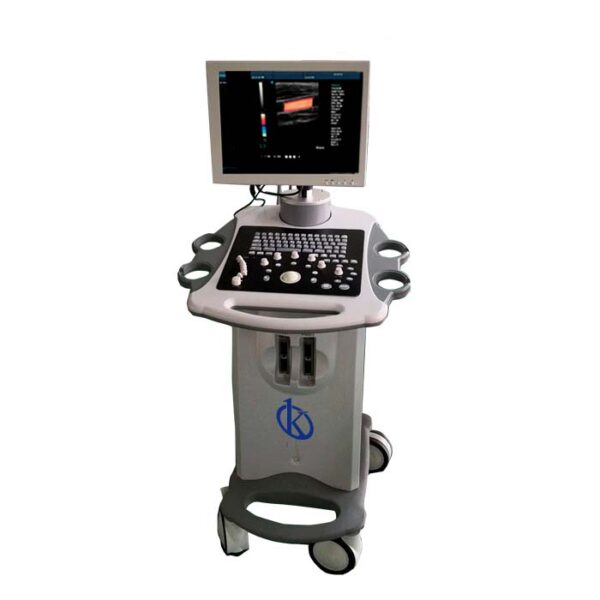

Portable Ultrasound Scanner Cart, Color Doppler Ultrasound Machine YR05153

Manufacturer: Kalstein

Description

  • Large 15-inch color LED display True Doppler function USB ports and VGA port and 2 probe connectors.
  • Application:ย Abdomen/Cardiac/Gynecology/Urology/Andrology/Small Parts/Vascular/Pediatric/Musculoskeletal
  • Picture modes:ย B 2Bโ€ฆ 4B MB/C/B/D/B/C/D/B/CFM/D PDI Dual Color Simultaneous Color 2D/Composite Color PW Duplex/Triplexโ€ฆ CFMโ€ฆ CDE CD Directional PD
  • Color Doppler based on computer with Windows system, which can be connected with any printer of any brand.ย The printed area is adjustable, which can be images, reports, or images + reports, etc.
  • Integrated DICOM 3.0 protocol
  • Multi-language function: English, Chinese, Spanish and Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German, Persian, Thai
Technical description
Model YR05153
Physical specifications
Packing Size 96cmร—75cmร—135cm
Packing Weight

165kg

Connectivity/Media/Peripherals

Port Transducer

two
USB ports two
128 hard drive

128GB (SSD) 120G/200GB SSD (optional)

Printing area Image, report, image + report
Ethernet port 2(100Mb/1000Mb)
External screen hdmi-vga
printer (optional) USB Printer, Digital Laser Printer, Digital Thermal Printer B/W
Hardware specifications of the LED monitor

Size

fifteen”
Contrast Ratio 800: 01: 00
Resolution 1024 * 768 pixels
Brightness 230 cd / m2
Depth of color 24bit
Rotate angle ยฑ 90 ยฐ
Gray Levels 256

General performance

Digital broadband 12288 channels
Haz-ex. Re-programmable
Transmit tension Adjustable (15 steps)

Beam-frequency range above

1 ~ 40 MHz

Additional information

Weight 165 kg
Dimensions 116 × 82 × 70 cm
