Description
10.4-inch touch screen display
Failure self-protection, self-diagnosis
High precision control of tube voltage, tube current
48 kinds of presupposed anatomy memory pattern choice
Accuracy control method of simulation and double digital loops
X-ray tube complete surrender by lead for protect X-ray leaking
Exposure by touch screen, hand switch or remote control
Technical Specifications

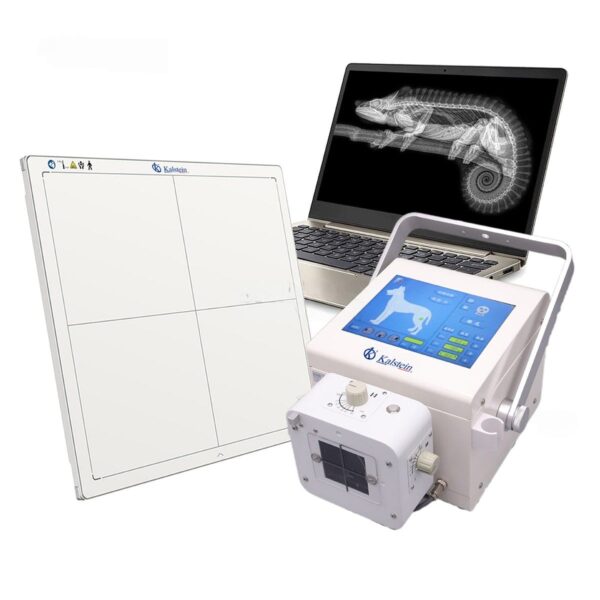

| Model | YR06160 | |
|
Generator
|
Power | 5kW |
| kV Range | 40~110kV | |
| mA Range | 20~100mA | |
| mAs Range | 0.8-200mAs | |
| Working Frequency | ≥40kHz | |
| Exposure time | 40ms~4000ms | |
|
X-ray tube
|
Anode heat storage | 56KHU |
| Focus | 1.8mm | |
| Inherent filtration | 1mm Al/75Kv | |
| Light source | LED | |
|
Wireless flat panel detector
|
Scintillator | CSI |
| Active Area | 10*13 inch | |
| Pixel Matrix | 2528*3318 | |
| Data Interface | WiFi / Tethered | |
| Trigger Mode | AED (optional) / Software | |
| Dimensions | 269mm*362mm*16mm | |
| Weight | 2.2kg | |
| Touch Screen | Dimension | 10.4-inch |
|
Main Unit
|
Weight | 19kg |
| Dimension | 290mm*265mm *230mm | |
| Power Supply | Voltage | AC 220V±10%, 50Hz±1Hz |
