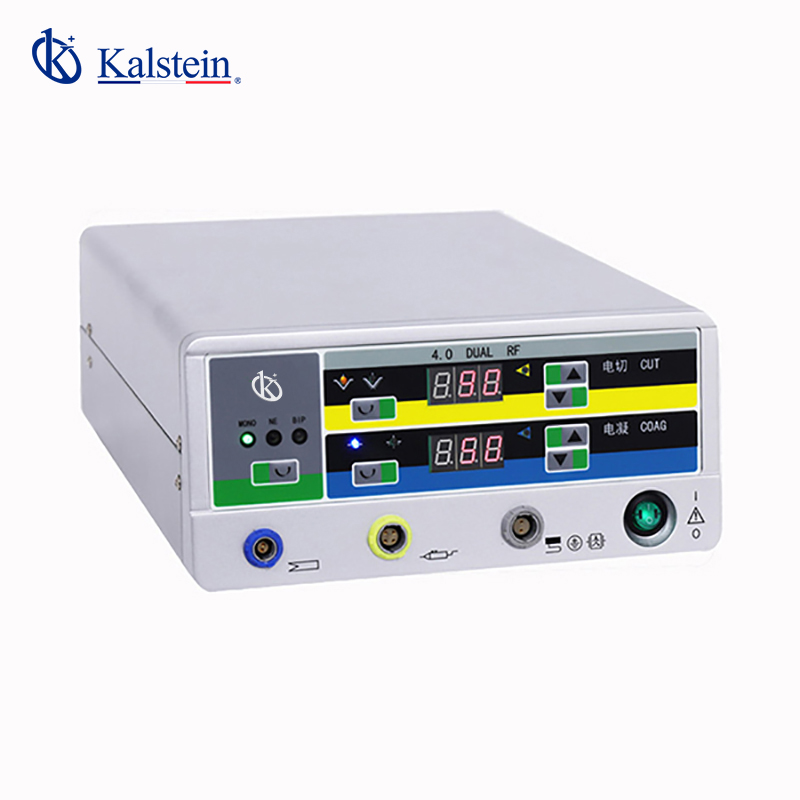

Radio Frequency Electrosurgical Unit YR02148

ManufacturerKalstein

Description

Six working modes with compact and light design

Monopolar Cut (Pure cut, Blend cut)

Monopolar Coag (Fulgurate Coag, Spray Coag)

Bipolar Cut , Bipolar Coag fully meet different surgery requirement.

Tissue Monitoring Technology

This technology monitors the tissue density, especially for polypectomy and papillotomy, cutting is smartly divided in cut and pause, so that coagulation occurs in each pause.The system is intelligent to change the pause interval as tissue density changes, hence produces fine cutting with coagulation effect.

Technical Specifications
Model YR02148
Working Mode Max Power / Rated Load
Monopolar Cut
Pure cut 90W / 500Ω
Blend 1 80W / 500Ω
Monopolar Coag
Fulgurate Coag 50W / 500Ω
Spray Coag 30W / 500Ω
Bipolar Cut Bipolar Cut 60W / 100Ω
Bipolar Coag Bipolar Coag 60W / 100Ω
Electrical requirement
Monopolar Measuring Frequency 4.0MHZ ±2%
Bipolar Measuring Frequency 1.84MHZ ±2%
Max Input Currency 1400VA
Environmental Conditions for Use
Condition Range
Temperature 50°C to 40°C
Relative humidity ≤ 95% non-condensing
Pressure 700 hPa to 1060 hPa

Additional information

Weight 8,5 kg
Dimensions 46 × 47 × 40 cm
