Recirculating Chiller YR02293 – YR02296

Manufacturer: Kalstein

Description

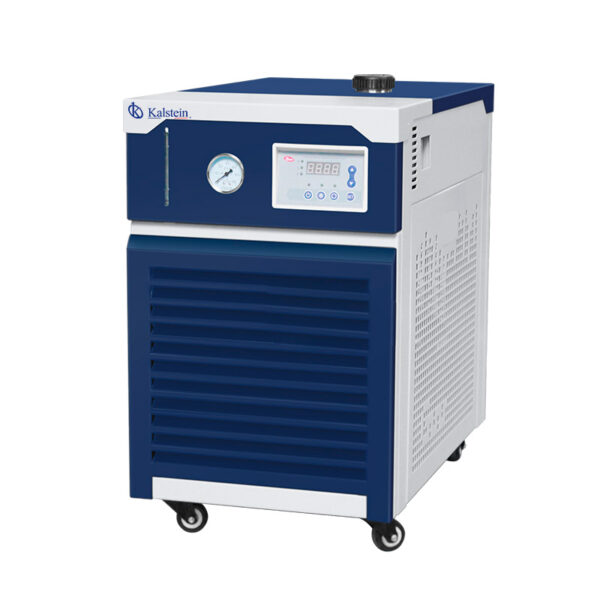

YR Recirculatingย  Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and research institutes.

Advantages
  • Applications in Chemistry and Biology, like biological fermenter, chemical synthetic vessel etc.
  • Equipped with world famous brand compressor, ensure low noise, high reliability, stable performanceย and long life span.
  • Completely closed circulation system prevents bath fluid from evaporation or contamination.
  • Built-in filters in circulation hose avoids possible blockage.
  • Environmental friendly CFC-free refrigerant meets international standards.
  • Compact design with good-looking appearance
  • Designed with liquid level monitor, which make it easier to check the bath fluid left in the tank.
  • Pressure of bath fluid can be measured by the pressure gauge which is fixed near the fluid outlet.
  • Variableย models to meet customerโ€™s different requirements.
  • Removable side panels for quick and easy cleaning and maintenance.
  • Eco-friendly refrigerant meets international environmental protection standard; Intelligent control system will prevent compressor from overloading which will extend its service life; closed circulation system reduced evaporation of refrigerant.
    Model YR02293 YR02294 YR02295 YR02296
    Temperature Range (ยฐC) -10~25
    Temperature Stability (ยฐC) ยฑ2
    Cooling Capacity at 15 Degree (W) 1000 2000 3000 6000
    Flow 30L/Min

    Under

    1bar

    30L/Min

    Under

    1bar

    30L/Min

    Under

    1bar

    40L/Min

    Under

    1.5bar

    Bath Volume 12 18 25 50
    Refrigerant R134A
    Power Supply Single Phase 220V 50HZ
    Dimension LxWxH (mm) 675ร—426ร—695 675ร—456ร—775 740ร—490ร—830 1020ร—635ร—1030

Additional information

Weight N/A
Dimensions N/A
Model

YR02293, YR02294, YR02295, YR02296
