Product Description

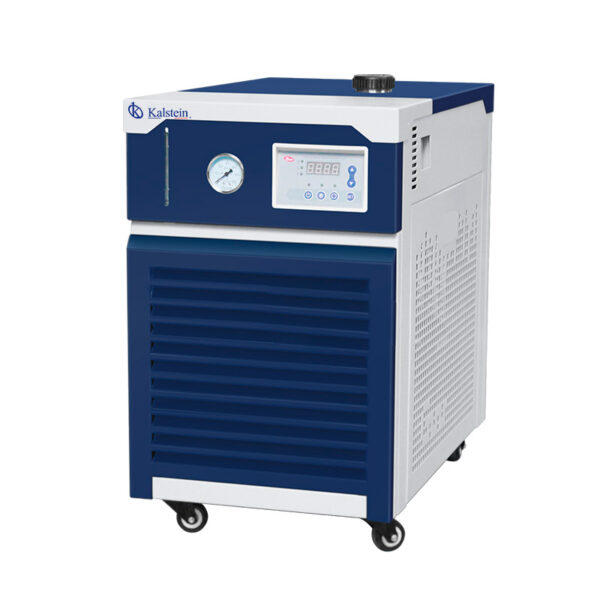

This compact cooler is particularly designed for rotary evaporators at the laboratory scale. It is reasonably structured with a small footprint, which can be placed on a bench or on the ground.
Advantages
- The traffic joint nozzle can be rotated at 360 °, which facilitates the connection with the corollary equipment
- All parts in contact with the refrigerant are made of 304 stainless steel and macromolecular anti-corrosive material
- The world-renowned brand compressor ensures high reliability
| Model | YR02302 | YR02303 | YR02304 | YR02305 |
| Operating temperature range | -10-25°C | |||
| temperature stability | ± 2°C | |||
| Power supply | 220-240V-, 50Hz | 3-, 380V, 50Hz | ||
| Filling volume of bath liquid (L) | 10 | 17 | 30 | 40 |
| Cooling capacity (W) | 1000@15″C | 2000@15″C | 3000@15″C | 6000@15″C |
| Refrigerant | R134a | |||
| Circulation pump flow | 7L/min | 16L/min | ||
| pressure (bar) | 1-10 | |||
| Pipe connection size | 1 / 2″ | |||
| Dimensions (mm) | 435W x 6900 x 720H | 465W x 6900 x 820H | 495W x 7600 x 860H | 650W x 1055D x 1070H |
| Net weight / kg) | 73 | 86 | 108 | 195 |
Additional Information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | YR02302, YR02303, YR02304, YR02305 |
