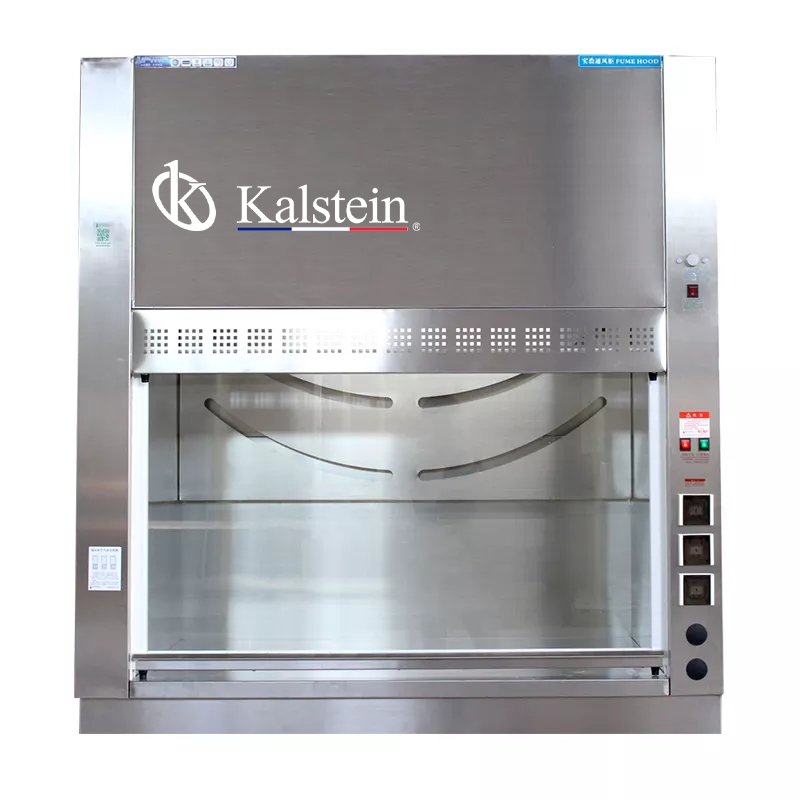

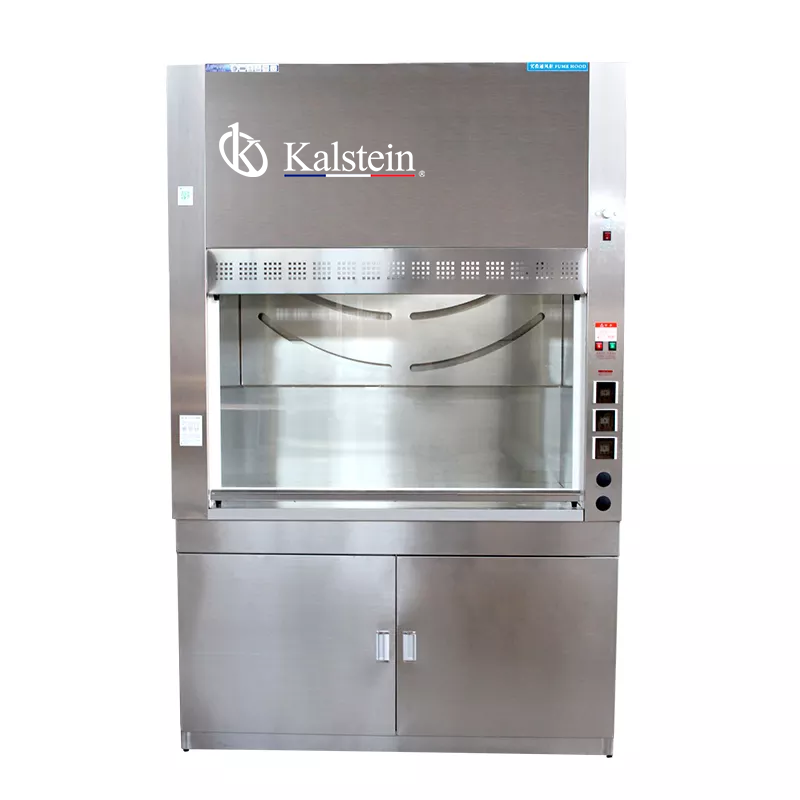

Stainless Steel Laboratory Fume Hood YR05823 // YR05825
Stainless Steel Laboratory Fume Hood YR05823 // YR05825 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
- Front Panel
- Liner and guide baffles 5mm thick anti melamine board
- (Window) 5mm thick tempered glass
- Laboratory dedicated PP Cup
- Built.in drain pioe
- Lower Side Plate
- Lower back plate
- Lower Movable floor
- Built in axial fan, air collector and anti-corrosion hose
- With wind regulator
- Upper side panel (1.2mm thick galvanized steel plate, epoxy sprayed outiside)
- Built in LED tube

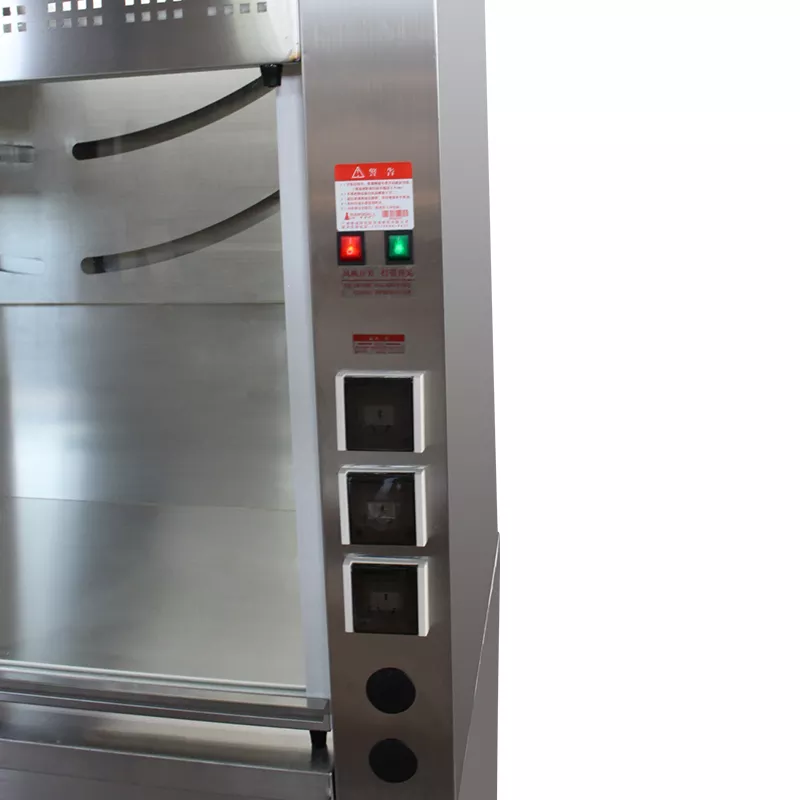

- Fan and lamp switch
- Multifunctional splash proof socket
- 12.7mm corrosion proof solid core, physical and chemical board mesa
- Door frames and door panels
- Adjusting foot
Technical Specifications
| Model | YR05823 | YR05824 | YR05825 |
| External Size (W*D*H) (mm) | 1200*800*1500 | 1500*800*1500 | 1800*800*1500 |
| Internal Size (W*D*H) (mm) | 950*700*1150 | 1250*700*1150 | 1550*700*1150 |
| Work Surface Height | 800mm | ||
| Max Opening of window | 750mm | ||
| Air Velocity/Exhaust air volume | 0.4-0.6m/s,800-1000m³/h | ||
| Noise | ≤60dB | ||
| LED Lamp | 10W*1 | ||
| Blower | Built-in axial flow blower;Speed adjustable. | ||
| Front Window | Manual,5mm toughened glass,height adjustable. | ||
| Power Supply | AC220V±10%,50/60Hz; | ||
| Consumption | 85 W | ||
| Material | 1.0mm thickness SUS304# Stainless Steel. Base Cabinet equipmented with the adjustable mechanism | ||
| Standard Accessory | LED lamp,Built-in axial flow blower with speed adjustable. | ||
| Waterproof socket*3 | |||
| 3 meter PP duct,Diameter:250mm | |||
| Optional Accessory | epoxy resin board or ceramic board.,Water tap,Gas tap,Water Sink | ||
| Outer centrifugal blower(300W),resistant to strong acid,alkali. | |||
| Gross Weight | 235 | 265 | 300 |
